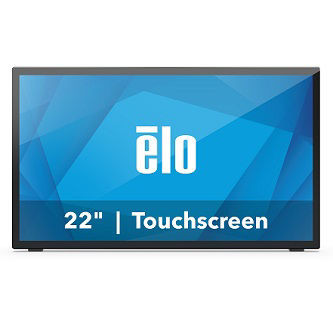

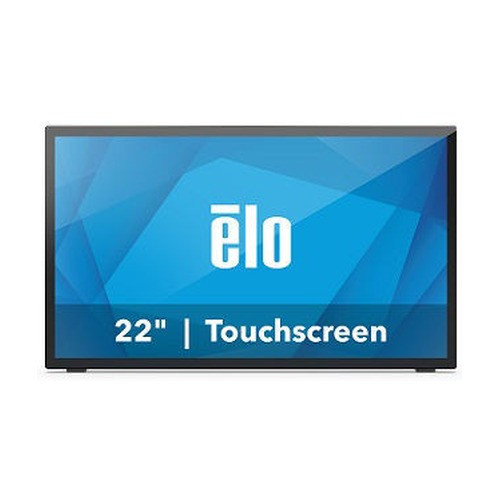

ELO Touch E511214 Elo 2270L 22-inch Full HD Touch Monitor
The ELO Touch E511214 is a 22-inch Full HD (1920×1200) touchscreen display engineered for retail POS terminals, self-service kiosks, and hospitality checkout stations. The projected-capacitive 10-touch surface responds to bare-finger input with minimal latency, while the zero-bezel frame eliminates dead zones on the edges — critical for dense multi-touch workflows and rapid guest interactions. Anti-glare coating reduces reflection under fluorescent and LED overhead lighting, a persistent pain point in high-ambient-light retail environments.
Key Features
- Projected Capacitive 10-Touch: Multi-touch surface with bare-finger sensitivity and no moving parts. Eliminates resistive-screen calibration drift and surface-damage vulnerability in high-traffic retail settings.
- 22-inch Full HD (1920×1200): 16:10 aspect ratio delivers more vertical real estate than 16:9 alternatives — ideal for POS menus, loyalty prompts, and signature-capture zones that stack vertically.
- Zero-Bezel Design: Recessed bezels eliminate touch-dead zones around the perimeter. Critical for multi-touch gestures and edge-to-edge tile configurations in kiosk walls.
- Anti-Glare Coating: Reduces specular reflection under typical retail lighting (500+ lux). Improves readability for customers with polarized sunglasses or in outdoor-adjacent storefronts.
- Multiple Video Inputs (HDMI, DisplayPort, VGA): HDMI is standard; DP adds future-proof bandwidth for 4K-ready infrastructure; VGA ensures backward compatibility with legacy POS systems still running RS-232 serial + analog video.
- USB 2.0 Controller: Single USB cable provides both touch data and device power (where supported by source hardware). Simplifies cable management in tight POS kiosk enclosures.
- Collapsible Stand: Folds flat for transport and point-of-sale resets. Reduces footprint during inventory audits or reconfiguration cycles.
- IP65-Rated Bezel (Optional): Sealed edge gasket resists splash and dust in restaurant and quick-service environments. Confirm rating on your specific unit via serial number; not all configurations include IP65.
The 16:10 aspect ratio is a material advantage for retail workflows: portrait-oriented menu hierarchies, PIN-pad prompts, and signature capture all benefit from the extra 120 pixels of vertical space versus a 16:9 22-inch model. On a typical POS terminal, that translates to fewer page-swaps and faster transaction confirmation — measurable in high-throughput environments (QSR, grocery checkout, hospitality concierge).
Touch response is consistent across the full surface with no dead zones thanks to the zero-bezel edge design. Projected capacitive sensing requires no calibration after initial shipment, and bare-finger operation (no stylus required) aligns with modern guest expectations. The USB controller draws minimal current — typically <500mA — so integration into existing POS power supplies is straightforward. For environments where USB bandwidth is limited, HDMI + DC power delivery is an alternative configuration; confirm with your integrator.
Connectivity flexibility makes this monitor retrofit-friendly: VGA input keeps legacy RS-232 POS systems operational during transition to IP-based terminals, while HDMI and DisplayPort support modern Single Board Computers (Raspberry Pi, NUC, Jetson) and thin-client appliances. Anti-glare coating trades a small amount of peak brightness for dramatically improved readability outdoors or under high ambient light — a reasonable trade-off for retail environments but worth testing in direct-sunlight kiosk applications before full deployment.
The collapsible stand reduces storage and transport overhead, particularly valuable in franchise operations or retail rollouts where the same monitor SKU ships to dozens of locations. Stand height and tilt are adjustable within typical viewing-angle ranges (portrait and landscape mounting both supported via VESA 100mm adapter bracket). Confirm VESA compatibility with your mount hardware before specifying.
ELO Touch monitors are sourced direct from the manufacturer or US direct manufacturer source, factory-new with full US manufacturer warranty. No grey-market inventory, no parallel imports.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the ELO 2270L across QSR chains, casual-dining groups, and retail flagship stores. The 16:10 form factor is the unsung hero here — most integrators default to 16:9 monitors because they're cheaper and more commoditized, but in POS workflows, the extra vertical real estate removes a transaction step. A menu that fits on one screen without scrolling reduces cognitive load on the cashier and guest alike, and in high-velocity environments (500+ transactions per shift), that compounds into measurable throughput gains. The zero-bezel design means you can tile multiple units side-by-side for loyalty-program display walls or kitchen-production dashboards without losing touch-sensitive area to frame overlap. Projected-capacitive touch is rock-solid in retail — no resistive-layer degradation over 2-3 years, no sticky residue buildup, and bare-finger operation feels native to modern guests. The USB controller is lightweight; in rare cases where USB bandwidth is congested, DisplayPort provides clean isolation. Anti-glare coating works as advertised in typical retail fluorescent/LED light, but we've seen customer complaints in direct-sunlight exterior kiosks (think mall entrance or fuel-station canopy) — if your site is outdoor-adjacent, request a glossy-panel sample first or pair it with a monitor hood.
Technical Highlights:
- Projected Capacitive 10-Touch (no drift, no calibration): Unlike resistive-overlay screens, capacitive sensing doesn't degrade from daily wear. Over a 36-month POS lifecycle, resistive panels typically require recalibration or replacement; capacitive surfaces maintain accuracy without maintenance. This directly impacts support costs and uptime in multi-unit retail networks.
- 1920×1200 (16:10) versus 1920×1080 (16:9): For portrait-heavy UI (menus, loyalty prompts, signature capture), the 120-pixel vertical gain eliminates one page-swap cycle per transaction. On a 300-transaction/day terminal, that's material time savings. Industry standard for dedicated POS monitors; never retrofit a 16:9 TV-panel as a cost-saving measure — you'll pay for it in support calls.
- Zero-Bezel Frame: Touch-active area extends to the physical edge. In multi-unit kiosk walls or customer-facing display arrays, dead-zone elimination is essential for seamless gesture and layout continuity. Prevents the "untouchable corner" problem that plagues beveled-frame alternatives.
- USB 2.0 Controller (integrated power + data): Single cable simplifies POS enclosure wiring and reduces splitter/hub dependencies. Typical draw <500mA — integrates cleanly into 5V regulated supplies on most SBC and thin-client platforms.
- Multi-Input Support (HDMI/DP/VGA): HDMI is universal; DP future-proofs for bandwidth-heavy applications (signage, video playback); VGA retains backward compatibility during legacy-to-IP transitions. Rare to use all three simultaneously, but the flexibility eliminates SKU proliferation across heterogeneous POS estates.
Deployment Considerations:
- Anti-glare coating reduces peak brightness (typically 300 nits max versus 400+ on glossy-panel equivalents). Test in your highest-ambient-light scenario before rolling out to outdoor kiosks; direct sunlight may warrant a monitor hood or glare filter.
- Collapsible stand is convenient for transport but requires reassembly on-site. In high-volume rollouts, have integrators pre-stage and test the stand in your lab before shipping to field locations — avoids surprise VESA-mount incompatibility or stability issues at go-live.
- USB controller power draw is minimal, but some legacy POS terminals source USB from a 500mA upstream hub. Confirm available USB current budget before specifying; if constrained, use external 5V power brick (supplied separately) to isolate touch data from power delivery.
- Projected-capacitive sensing responds to capacitive styli (e.g., ELO-brand active pens), but standard plastic passive styluses are ignored. If you need stylus support (signature capture, menu navigation in kitchen environments), confirm your UI supports bare-finger swipe alternatives or budget for ELO-compatible active pen hardware.
- VESA 100mm mounting is standard; confirm your bracket and enclosure are ELO-certified. Non-standard mounting brackets can introduce tilt-angle asymmetry, reducing touch accuracy at screen edges.
The 2270L is the right choice for purpose-built POS, self-service kiosks, and hospitality checkout stations where the 16:10 form factor and zero-bezel design eliminate interface friction. For high-ambient-light or outdoor deployments, evaluate a glossy-panel variant or pair this unit with a monitor hood. Ideal buyer: QSR chains, full-service restaurants, retail stores, hospitality properties running multi-unit POS networks. For more options in the ELO product line, visit the ELO Touch catalog.
