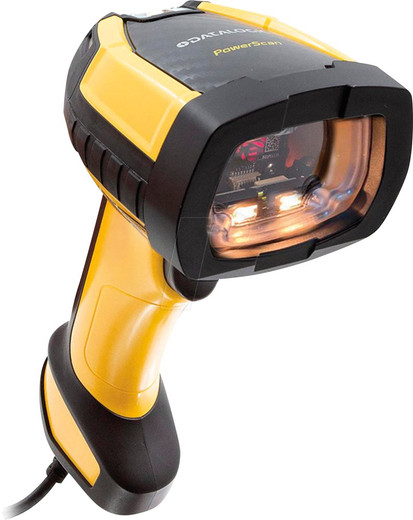

Datalogic PD9630-HP 2D Area Imager Barcode Scanner
The Datalogic PD9630-HP is a rugged industrial handheld scanner purpose-built for high-volume capture in manufacturing, logistics, warehouse, and healthcare environments. As a 2D area imager, it reads both 1D and 2D barcodes from a single optic, eliminating the need to swap devices between barcode types—a real productivity gain when your operation mixes UPC codes with QR and Data Matrix symbols. The combination of IP65 sealing and 2.5 m (8.2 ft) drop rating means this device survives dust, splashes, and operator fumbles that would kill consumer-grade equipment.
Key Features
- 2D Area Imager Technology: Captures 1D and 2D barcodes from a single optical path. No need to switch devices or reconfigure when your operation uses mixed barcode types—reduces complexity and operator training overhead.
- IP65 Environmental Sealing: Full dust ingress protection and resistance to water jets. Your device won't fail when someone rinses a pallet or warehouse humidity spikes. IP65 is the ceiling for splash protection; if you need full submersion, a higher rating isn't available in this form factor.
- 2.5 m (8.2 ft) Drop Resilience: Survives drops from typical shoulder height onto concrete or warehouse flooring. This rating is meaningful: devices rated for 1.0 m drops fail regularly in high-velocity drops or onto rebar. At 2.5 m, repair and replacement costs drop significantly in busy warehouses.
- Bluetooth 5.0 Wireless: Extended range and lower power draw than Bluetooth 4.x, reducing battery-swap frequency during long shifts. Pairs with enterprise mobility platforms (MDM systems, Zebra EMM, MobileIron). Range is typically 50–100 m in open space; warehouse metal racking and RF interference reduce effective range to 20–40 m depending on environment.
- Wired Connectivity Options: USB, RS-232, and Bluetooth 5.0 available on a single device. Allows mixed wired and wireless deployments without separate SKUs—useful for fixed docking stations at receiving gates alongside mobile scanning carts.
- 10 Million Trigger Presses: At 50–100 scans per shift in typical logistics, this durability rating translates to 3–5 years of daily operation before trigger replacement becomes necessary. In high-volume operations (300+ scans/shift), expect 1–2 years before maintenance. This spec reduces unplanned downtime and accelerates ROI vs. devices rated for 5 million presses.
- Lightweight Ergonomic Design: 440 g (0.97 lb) and 71 × 203 × 107 mm footprint reduce operator fatigue during 8+ hour shifts. Meaningful for roles that involve scanning 100+ items per hour—a heavier device (600+ g) introduces measurable strain and scanning errors by end of shift.
- Green Spot Visual Feedback: Instant visual confirmation of successful reads without audio cues. Reduces re-scans and improves data accuracy in noisy warehouse environments where audible beeps are masked.
- 1-Year Limited Warranty: Covers manufacturer defects and component failures under normal use. Does not cover accidental damage or drop damage (hence the separate drop rating specification).
Integration and Deployment Scenarios
The PD9630-HP integrates with enterprise warehouse management systems (WMS) via standard barcode output protocols—no custom middleware required. Bluetooth pairing works with rugged mobile computers (Zebra MC3300, MC9300, TC52 series) and tablets with enterprise MDM enrollment. USB and RS-232 options support legacy fixed-position scanners at loading docks or quality checkpoints where a wireless connection introduces latency risk.
Typical deployments span receiving (high-speed conveyor verification), put-away (mobile associate scanning), picking and packing (hand-held order fulfillment), and shipping (final proof-of-delivery). Organizations standardizing on the PowerScan 9600 Series simplify operator training, spare parts inventory, and firmware updates across multiple facilities.
When to Evaluate Alternatives
If your operation requires scanning at distances beyond 3–4 meters or needs long-range 1D barcode reads at 10+ meters, a laser scanner or dedicated long-range 2D imager may be more efficient. If environment temperature drops below 0°C or exceeds 45°C regularly, consult operating temperature specifications in the full datasheet. The PD9630-HP (often searched as PD9630 HP) is optimized for ambient warehouse and manufacturing conditions, not outdoor or extreme-temperature logistics hubs.
Frequently Asked Questions
Q: Does the PD9630-HP read damaged or partially obscured barcodes?
A: The 2D area imager handles moderate damage and print defects better than laser scanners, but read reliability depends on barcode quality and print contrast. Test with your actual barcode stock before full deployment.
Q: What's the wireless range in a typical warehouse with metal racking?
A: Effective range is typically 20–40 m in environments with metal racking and RF interference. Open-space range is 50–100 m. Test in your specific facility before committing to a large wireless fleet.
Q: Can I use the PD9630-HP with a non-Datalogic mobile computer?
A: Yes. Bluetooth 5.0 is a standard protocol, so the scanner pairs with any Bluetooth-enabled mobile device or tablet running Android or iOS. WMS integration depends on your backend system, not the scanner-to-device connection.
Q: Is the trigger durability rating backed by any third-party certification?
A: The 10 million press rating is a manufacturer specification. It is not independently certified by UL or similar bodies. Actual durability will vary with trigger pressure, operator technique, and environmental contamination (dust or moisture affecting the trigger mechanism).
Q: What optic configurations are available within the PowerScan 9600 Series?
A: The series includes multiple optic options optimized for different reading distances and barcode sizes. Consult the full product family datasheet or contact the manufacturer for specific SKUs and focal length specifications to match your scan-distance requirements.
Q: Does the PD9630-HP support RFID or NFC in addition to barcodes?
A: No. The PD9630-HP is a barcode scanner only. It does not include RFID or NFC capability. If your workflow requires RFID asset tracking alongside barcode verification, you'll need a separate RFID reader or a multifunction device that combines both technologies.
The PD9630-HP represents a solid, field-proven platform for enterprises seeking durable standardized barcode capture without the complexity of single-purpose laser or 1D-only devices. The combination of IP65 sealing and 2.5 m drop resistance sets the bar for industrial-grade handheld scanners, and the 10 million trigger-press durability is a real advantage when you're running 50+ devices across multiple facilities and want to minimize replacement cycles.
Technical Highlights:
- 10 Million Trigger Durability: In high-volume logistics (100–300 scans per shift), this translates to 2–4 years of daily operation before trigger wear requires service. Devices rated at 5 million presses fail in half that time, driving up total cost of ownership and unplanned downtime.
- IP65 + 2.5 m Drop Rating: This pairing is industry-standard for warehouse and manufacturing floor use. IP65 protects against incidental water spray and dust; 2.5 m drop survival is realistic for typical conveyor or pallet-handling environments. Anything lower fails regularly; anything higher is rare and adds cost.
- Bluetooth 5.0 with Wired Fallback: Flexibility to deploy mixed wired (USB/RS-232 at fixed stations) and wireless (Bluetooth to mobile devices) without separate SKUs simplifies inventory and reduces training overhead for multi-facility operations.
Deployment Considerations:
- Wireless Range Varies by Environment: Open-space Bluetooth range is 50–100 m, but metal racking and RF interference reduce effective range to 20–40 m. Test the PD9630-HP in your actual warehouse layout before committing to a large wireless fleet; don't assume vendor range specs will hold.
- Optic Configuration Matters: The PowerScan 9600 Series includes multiple focal-length options. Verify which optic SKU matches your barcode size and reading distance. A mismatch results in high no-read rates and frustrated operators.
- Trigger Durability Assumes Normal Use: The 10 million specification is sensitive to environment. Dusty environments, high humidity, and operator technique (hard trigger pulls vs. soft) affect actual lifespan. Budget for filter cleaning and occasional trigger replacement after 18–24 months in harsh conditions.
Position the PD9630-HP for enterprise logistics and manufacturing environments where ruggedness, wireless flexibility, and predictable durability are non-negotiable. It's not the lowest-cost scanner, but in multi-facility deployments where downtime and device replacement costs compound, the durability spec and mixed-connectivity options deliver measurable ROI.
