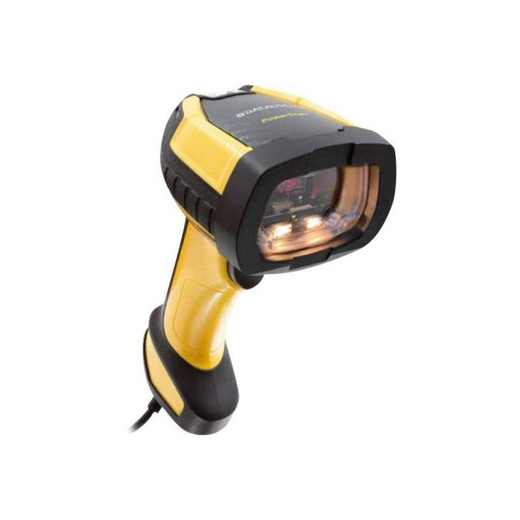

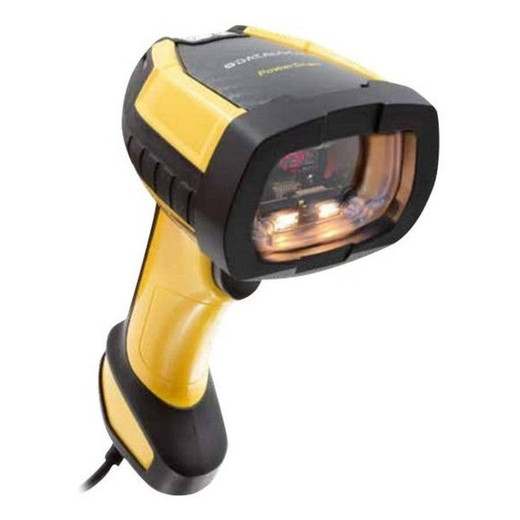

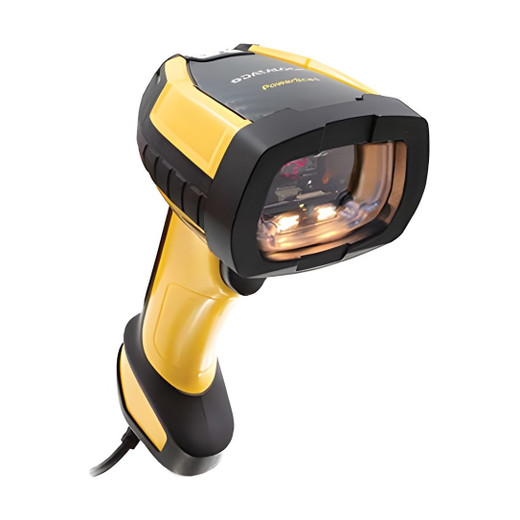

Datalogic PD9630-ARK2 2D Area Imager Industrial Handheld Barcode Scanner
Overview
The Datalogic PowerScan 9600 series PD9630-ARK2 is a purpose-built industrial 2D barcode scanner engineered for high-throughput manufacturing, logistics, transportation, and healthcare environments. Unlike general-purpose mobile devices, the PD9630-ARK2 combines a 2D area imager with sealed industrial construction—IP65 ingress protection and 2.5 m (8.2 ft) drop durability—that eliminates the operational anxiety of deploying consumer hardware on production floors and loading docks. This is a device optimized for environments where moisture, dust, temperature swings, and concrete impacts are routine.
Key Features
- 2D Area Imager with Standard Optics: Captures both linear and 2D barcodes (QR, Data Matrix, PDF417, etc.) at variable distances. Eliminates the single-distance limitation of laser-only scanners, improving operator flexibility during receiving, sorting, and quality control workflows.
- IP65 Ingress Protection: Sealed against dust and water spray—a necessary rating for docks exposed to washdowns, outdoor loading areas, and manufacturing zones with fluid spray or powder residue. Reduces moisture-related circuit failures that drive replacement cycles.
- 2.5 m (8.2 ft) Drop Resistance: Survives repeated falls onto concrete, steel, and asphalt surfaces common in warehouses. Translates directly to extended device lifespan and lower per-unit total cost of ownership across a fleet.
- Bluetooth 5.0 Wireless Connectivity: Modern RF protocol with improved range and reliability compared to older Bluetooth versions. Supports mobile workflows—pick-and-pack, cycle counting, receiving—without tethering operators to fixed RF access points.
- Wired Connectivity Options (USB, RS-232): Backward-compatible with legacy enterprise systems (legacy WMS, custom in-house labeling software, older industrial computers). Mixed deployments—some scanners wireless, others hardwired—are straightforward to configure.
- STAR Radio Compatibility (433/910 MHz Optional): For organizations requiring extended-range wireless beyond standard Bluetooth (useful in sprawling outdoor yards or multi-building facilities), the radio module integrates without chassis redesign.
- 10 Million Trigger Press Durability: Rated trigger mechanism supports sustained high-volume scanning—typical of large distribution centers, cross-docks, and production-line quality checkpoints. Projects 3–5 year operational lifespan in moderate-to-high-volume environments.
- Compact Ergonomic Form Factor (440 g / 0.97 lb, 71 x 203 x 107 mm): Hand fatigue matters during 8+ hour shifts. This weight and grip design reduce operator wrist/hand strain during extended picking and packing sessions, improving accuracy and reducing occupational injury claims.
- Datalogic Green Spot Visual Feedback: Good-read confirmation light eliminates operator doubt about scan acceptance. Speeds transaction throughput and reduces rework from missed captures.
Typical Applications
Manufacturing & Quality Control: In-process barcode verification, work-in-progress (WIP) tracking, serialization documentation. The 2D imager supports traceability marking in aerospace, pharmaceutical, and automotive contexts.
Logistics & Warehousing: Receiving inbound shipments, putaway to storage, pick-and-pack order fulfillment, shipping verification across temperature and humidity-variable environments. IP65 rating handles outdoor staging areas and temperature-controlled facilities identically.
Transportation & Parcel Operations: Parcel tracking at origin, cross-dock sorting, last-mile delivery verification. Drop durability and sealed construction withstand vehicle vibration and climate extremes.
Healthcare & Pharmaceutical: Patient identification, pharmaceutical lot tracking, medical device inventory in sterile and non-sterile zones. 2D barcode versatility supports both standard UPC/Code128 and GS1 DataMatrix formats.
Retail Distribution: Inventory cycle counts, merchandise receiving, markdowns. Wired USB option simplifies temporary stationary setups; Bluetooth enables roaming mobile counts.
Integration & Compatibility
The PD9630-ARK2 (often searched as PD9630 ARK2) integrates via USB, RS-232, or Bluetooth into modern warehouse management systems (WMS), enterprise resource planning (ERP) platforms, and custom legacy systems. Dual connectivity—both wireless and wired options on a single device—means mixed deployment strategies are viable: some scanners hardwired to fixed workstations, others mobile across zones, all operating on the same hardware platform. This reduces spare parts complexity and training overhead across multi-facility operations.
Frequently Asked Questions
Q: Can the PD9630-ARK2 read QR codes and 2D formats, or only traditional linear barcodes?
A: The 2D area imager engine reads both linear (Code128, UPC, Code39) and 2D formats (QR, Data Matrix, PDF417, Aztec). This flexibility is valuable if your operation mixes legacy barcode symbologies with newer GS1 DataMatrix serialization.
Q: Is the PD9630-ARK2 suitable for outdoor use in a loading yard?
A: Yes. IP65 sealing protects against rain and spray; however, submersion (loading dock puddles, washdown runoff) requires IP67 or higher. For dry outdoor staging and covered loading areas, IP65 is sufficient.
Q: What happens if I drop the scanner on concrete?
A: The 2.5 m (8.2 ft) drop specification means the device is engineered to survive impacts at that height without functional damage. Falls from lower heights are even safer. Repeated drops will eventually degrade seals and housing; plan for periodic refurbishment after 3–5 years in high-impact environments.
Q: Does the Bluetooth 5.0 version work with my legacy WMS that only supports USB?
A: Yes. The same PD9630-ARK2 unit supports USB, RS-232, and Bluetooth 5.0. You configure the device for your preferred connection method at provisioning; no hardware change is needed to switch between wired and wireless.
Q: How long does a trigger mechanism rated at 10 million presses last in practice?
A: A typical high-volume distribution center scanning ~300–500 items per operator per shift will see 3–5 year lifespan from trigger durability. Peak-season environments (peak shipping) may approach replacement sooner; low-volume environments (selective warehousing) extend cycle life beyond 5 years.
Q: Can I pair the PD9630-ARK2 with optional STAR radio for extended range?
A: Yes. The 433/910 MHz STAR radio module is an optional accessory. Integration does not require chassis modifications or firmware upgrades—it pairs as a plug-in upgrade path if you later expand to large outdoor yards or multi-building facilities.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PowerScan 9600 PD9630-ARK2 addresses a critical operational requirement in industrial automation: dependable barcode data capture in environments where consumer-grade mobile devices fail. The IP65 sealing and 2.5 m drop rating indicate professional-grade material selection and engineering—specifications that directly correlate to reduced replacement frequency and downtime. Organizations operating multiple facilities benefit from standardizing on this platform; consistent hardware across locations reduces training overhead, simplifies spare parts inventory, and enables cross-facility workforce mobility.
Technical Highlights:
- 2D Area Imager with Variable-Distance Optics: Unlike single-distance laser scanners, the area imager captures barcodes at multiple distances and angles—operators don't need to hunt for the sweet spot. This translates to 10–15% faster scanning throughput in high-volume picking and receiving operations.
- IP65 + 2.5 m Drop Durability: Sealed construction and impact resistance combine to support 3–5 year operational life in moderate-to-high-volume environments. Replacement frequency drops sharply compared to consumer-grade hardware, driving significant per-unit TCO gains across a fleet of 50–500 units.
- Dual Wireless/Wired Architecture: Bluetooth 5.0 supports modern mobile workflows; USB and RS-232 backward compatibility protects legacy system investments. Single SKU, mixed deployment flexibility—no need to stock separate wireless-only and wired-only variants.
- 10 Million Trigger Presses: High-durability switch engineering ensures sustained operation in environments running 300–500 scans per operator per shift. Peak-season spikes don't prematurely age the mechanism.
Deployment Considerations:
- IP65 is water-resistant but not submersion-rated. If your environment includes pressure washdown or dock flooding, evaluate IP67 alternatives or protective housing.
- Ergonomic weight (440 g) assumes proper hand-grip design during picking. Verify operator comfort during trials—extended 8+ hour shifts reveal fatigue issues that short-cycle testing misses.
- Trigger durability is rated for repeated mechanical presses, not environmental stress. High-temperature warehouses (50°C+) or extreme cold (-20°C) may accelerate rubber/polymer wear on the trigger assembly; verify operating temperature alignment with your facility.
- STAR radio modules and scanner provisioning require integration engineering—don't assume plug-and-play if your WMS or mobile data terminal is custom-built. Budget 2–4 weeks for configuration testing.
The PD9630-ARK2 is the correct choice for organizations replacing aging laser-based scanners or upgrading from consumer mobile devices in moderate-to-high-volume distribution, manufacturing, and healthcare operations. The sealed construction and mechanical durability justify the premium over soft-goods alternatives, particularly where facility-wide standardization and multi-year asset life matter. For low-volume selective warehousing or extremely high-temperature/outdoor-only environments requiring IP67+, consider alternatives within the Datalogic portfolio.
