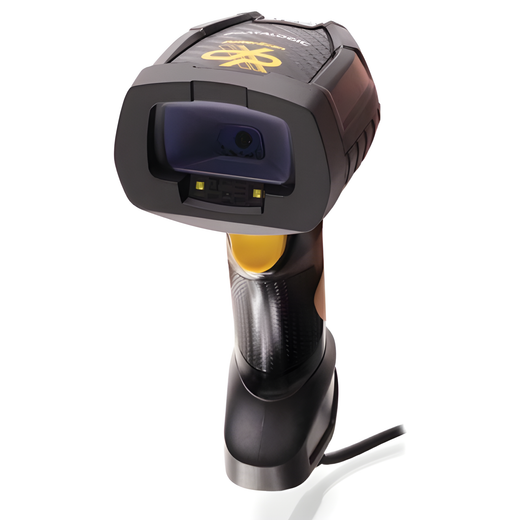

Datalogic PD9630-DPXK1 PowerScan 9600 2D Area Imager Industrial Scanner
The Datalogic PD9630-DPXK1 is a rugged 2D area imager designed for warehouse, manufacturing, logistics, and healthcare operations where barcode read reliability and device durability directly affect throughput and cost per scan. Unlike 1D laser scanners, the 2D imaging engine captures both traditional barcodes and 2D codes (QR, Data Matrix, PDF417) from a single device, eliminating SKU proliferation across your fleet.
Key Features
- 2D Area Imager: Captures 1D and 2D barcodes in a single platform—no need to stock separate 1D/2D models. Reduces procurement complexity and operator training overhead.
- IP65 Ingress Protection: Dust and water splash won't degrade performance. Deployed in wet environments (food, beverage, pharmaceutical cold storage) without protective cases, cutting accessory costs and thermal stress on the scanner.
- 2.5 m (8.2 ft) Drop Rating: Survives accidental concrete floor impacts typical in fast-paced warehouse picking. Eliminates frequent replacement cycles—a material factor in high-turnover environments.
- Bluetooth 5.0 Wireless Connectivity: Extended range (100+ m line-of-sight) compared to earlier Bluetooth versions. Supports mobility workflows in larger facilities without dead zones. Falls back to STAR radio alternatives for interference-heavy environments.
- Wired Connectivity (USB, RS-232): Deploy as tethered (fixed workstations, checkout) or cut the cable for mobile use. Hybrid flexibility means a single hardware platform spans stationary and roving operator roles.
- 10 Million Trigger Press Durability: At ~500 daily scans per operator, that's 5+ years of continuous use before mechanical wear. Directly reduces fleet refresh cycles and per-unit lifetime cost.
- 440 g Weight (15.5 oz): Light enough for all-shift ergonomic use. Operator fatigue impacts scanning accuracy and adoption; under-weight devices mitigate wrist strain in high-volume picking or assembly environments.
- Green Spot Good-Read Feedback: Visual confirmation on successful capture. Reduces scan misses that ripple into order accuracy issues downstream.
Deployment Scenarios
Deploy the PD9630-DPXK1 across receiving docks (barcode-to-pallet matching), production lines (component tracking, serialization), asset management (fixed-asset audits), patient wristband scanning (healthcare ID verification), and field service logistics. The consistent platform eliminates the training burden of managing multiple scanner types—critical in organizations with high operator turnover or seasonal staff scaling.
Integration & Connectivity
Pair with Datalogic wireless cradles or standard USB/RS-232 hubs. Works with WMS/ERP systems via standard barcode data output (ASCII text equivalent). Bluetooth 5.0 integrates with modern mobile device management (MDM) infrastructure; wired ports support legacy industrial terminals and workstations without firmware updates. The scanner outputs raw barcode data—neutral to downstream software stack, so VMS or WMS platform choice doesn't constrain hardware selection.
Build Quality & Environmental Tolerance
The sealed enclosure withstands splash (think washdown facilities, outdoor logistics yards) and dust ingress (packaging, sorting, grain handling). Operating temperature range spans -10°C to +50°C, covering most climate-controlled warehouse interiors and outdoor staging areas. The 10 million trigger specification is not marketing—it reflects stress testing that translates to measurable MTBF in continuous daily use.
When to Choose a Different Model
If your operation is purely 1D barcode scanning in clean, stationary environments, a lower-cost single-line laser scanner may suffice. If you need extreme sealing (full submersion, washdown spray at 80+ bar pressure), evaluate IP67-rated variants in the Datalogic barcode scanner line. If trigger durability is irrelevant (low-volume, light-duty use), cost-optimized consumer-grade imagers exist outside the industrial segment.
Frequently Asked Questions
Q: Can the PD9630-DPXK1 read barcodes at distance, or does it require close range like a camera?
A: 2D area imagers like this model read codes from ~10 cm to 30+ cm depending on code size and lighting. Not as long-range as a 50+ m laser rifle scanner, but closer and more flexible for handheld operator use. Optimal for operator-in-hand scanning at arm's length.
Q: Does the IP65 rating mean I can submerge it in water?
A: No. IP65 means dust-tight and resistant to water jets/splash from any angle—not immersion. Submersion requires IP67 or higher. Keep it out of water tanks or flowing channels.
Q: What's the warranty period on the PD9630-DPXK1?
A: 1-Year Limited Warranty from the manufacturer. Extended coverage plans may be available through authorized dealers; confirm at time of purchase.
Q: Can I pair the Bluetooth version with standard iPad/Android devices, or does it require proprietary Datalogic terminals?
A: Bluetooth 5.0 pairs with standard mobile devices supporting HID or SPP profiles. Does not require proprietary terminals, though you'll need barcode-scanning app software on the device (WMS apps, custom integrations, or Datalogic's own mobile platform).
Q: Is the 440 g weight including the battery?
A: Yes, 440 g is the complete scanner as shipped. Wireless models carry an internal rechargeable battery; wired USB/RS-232 variants are powered via cable.
Q: How often do I need to replace the trigger switch if we're scanning 1,000+ items per day?
A: At 10 million presses rated durability and 1,000 scans/day, expect 27+ years before mechanical wear. In practice, the device will likely be superseded by newer models before trigger replacement is needed.
The PD9630-DPXK1 fills a real gap: the 2D imager eliminates hardware proliferation without the cost penalty of buying separate 1D and 2D devices for every operator. Pair that with IP65 sealing and a 2.5 m drop spec, and you have a scanner that survives typical warehouse chaos without requiring expensive protective housings. The 10 million trigger durability alone shifts the economics—that's lifecycle transparency you rarely see in this category.
Technical Highlights:
- 2.5 m Drop Rating + IP65 Sealing: Survives accidental concrete impacts and splash exposure without cases. Reduces accessory overhead and removes thermal stress from protective rubber—a factor in high-humidity or washdown environments where trapped moisture degrades electronics.
- 10 Million Trigger Presses: At 500–1,000 daily scans per operator, that's 5–20 years of service before mechanical wear. Directly reduces fleet refresh cycles compared to consumer-grade imagers rated for 1–2 million presses.
- Bluetooth 5.0 + Wired Dual Connectivity: Single SKU handles both mobile (wireless cradle, roving operator) and stationary (tethered workstation, legacy terminal) roles. Eliminates the need to maintain separate wireless and wired variants.
- 440 g Weight at Complete Package: Under 1 lb all-day ergonomic load. Operator fatigue drives scanning misses and adoption resistance—this weight class reduces both risks in high-volume picking.
Deployment Considerations:
- 2D imagers require adequate lighting for reliable reads—dim aisles or backlighting can reduce capture rates compared to laser scanners. Test your lighting before committing to a large rollout.
- IP65 is splash-resistant, not submersible. If your environment involves dunking, washdown spray above 12.5 L/min at 2.5 m distance, or continuous moisture exposure (meat processing coolers), escalate to IP67 or sealed wireless cradles.
- Bluetooth 5.0 range is ~100 m line-of-sight, but metal racks, concrete walls, and RF interference (WiFi, microwave ovens) reduce effective range. Survey your facility before assuming seamless coverage.
Position the PD9630-DPXK1 for mid-to-high volume operations where barcode variety (1D + 2D codes) and device durability directly reduce cost per transaction. Asset audits, healthcare ID verification, order picking, and production line tracking are proven use cases. Avoid low-volume, light-duty applications where consumer-grade imagers or simple laser scanners deliver equivalent value at lower cost.
