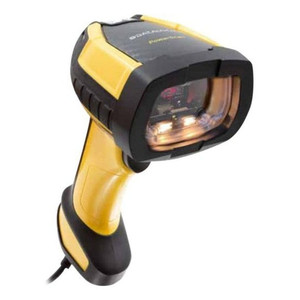

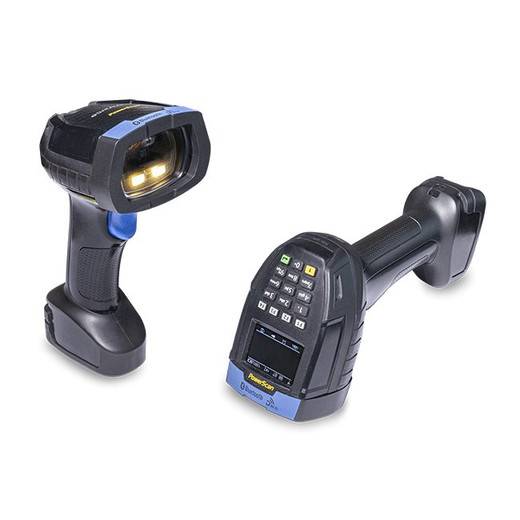

Datalogic PowerScan 9600 2D Area Imager Barcode Scanner
The Datalogic PowerScan 9600 Series (PC-P096) is a rugged industrial handheld barcode scanner engineered for demanding manufacturing, logistics, transportation, and healthcare environments. Built on a proven platform, this 2D area imager delivers fast, reliable barcode capture while withstanding the physical and environmental rigors of high-throughput operations.
Key Features
- 2D Area Imager technology for 1D and 2D barcode reading
- IP65 sealed construction for dust and water resistance
- 2.5 m (8.2 ft) drop resistance for rugged reliability
- Bluetooth 5.0 wireless connectivity
- Multiple wired connectivity options: USB, RS-232, and STAR Radio (433/910 MHz)
- 10 million trigger press durability for extended operational life
- Compact, ergonomic design: 440 g (0.97 lb), 71 x 203 x 107 mm
- Datalogic Green Spot good-read feedback system
- 1-Year Limited Warranty
Technical Specifications & Performance
The PowerScan 9600 combines enterprise-grade scanning performance with industrial durability. Its 2D area imager captures high-contrast barcodes across varying distances and angles, reducing scan failures and operator frustration. The IP65 rating ensures protection against splashes, dust, and moisture—critical in wet or dirty production areas. At just 440 grams, the scanner reduces operator fatigue during extended shifts, improving productivity and accuracy.
Connectivity flexibility is built in. Users can deploy the scanner via USB or RS-232 for stationary workstations, or leverage Bluetooth 5.0 for mobile workflows. The STAR Radio option (433/910 MHz) provides long-range wireless capability without relying on facility WiFi infrastructure, ideal for sprawling warehouses or outdoor logistics yards. The 10 million trigger press rating ensures the device outlasts typical replacement cycles, reducing total cost of ownership.
Ideal Applications
- Manufacturing and assembly line quality control
- Warehouse receiving, put-away, and inventory management
- Parcel and package sortation
- Healthcare specimen and asset tracking
- Retail backroom operations and replenishment
- Transportation and cross-dock operations
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PowerScan 9600 strikes a balance between performance and cost that appeals to mid-market and enterprise deployments. The dual-connectivity model (wireless + wired options) eliminates infrastructure lock-in—organizations can start with USB tethering and upgrade to Bluetooth or STAR Radio as workflows evolve. The 2.5 m drop specification is genuine durability, not marketing hype; this scanner will survive the inevitable floor drops common in fast-paced warehouses.
The 10 million trigger specification warrants attention: at roughly 20-30 scans per minute (depending on workflow), this translates to 6+ years of continuous use before trigger wear becomes an issue. For high-volume operations, this durability directly reduces per-scan ownership costs compared to lower-rated alternatives.
The IP65 sealing is appropriate for light-to-moderate wet environments but not IP67 or higher; users in heavy washdown scenarios should verify moisture ingress risk. The Green Spot audible and visual feedback is standard Datalogic practice, reducing errors in noisy environments where traditional beeps may go unheard.
