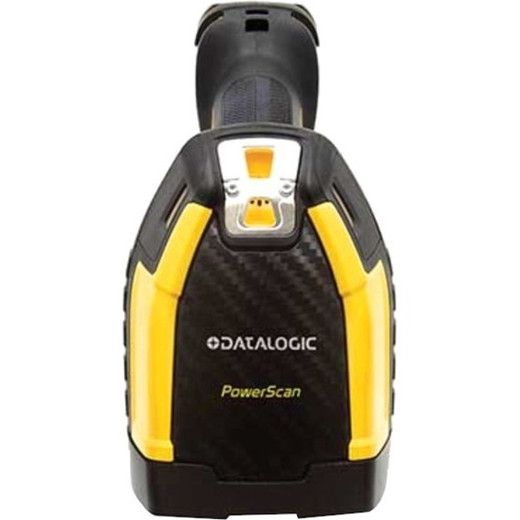

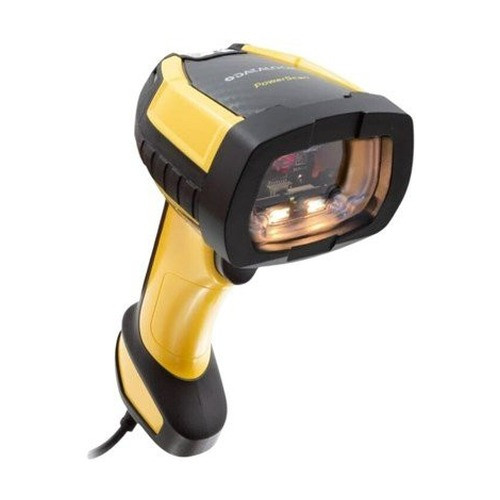

Datalogic PD9630-ARK1 2D Area Imager Industrial Barcode Scanner
The Datalogic PD9630-ARK1 is a handheld 2D area imager purpose-built for high-throughput industrial scanning in manufacturing, logistics, healthcare, and transportation. This industrial barcode scanner reads both linear (1D) and 2D symbologies—QR codes, data matrix, PDF417—at speed, making it essential in modern supply chains where mixed barcode formats are standard. The combination of rugged construction, wireless and wired connectivity, and field-proven reliability positions this unit for organizations standardizing barcode capture across multiple sites.
Key Features
- 2D Area Imager Engine: Captures both 1D and 2D barcodes at speed without mechanical movement. This matters because it eliminates the slower scan-line latency of older laser scanners—you're getting rapid throughput in pick-and-pack, receiving, and asset-tracking workflows where every second counts.
- IP65 Ingress Protection: Sealed against dust and water jets—suitable for warehouse environments with ambient moisture, but not for washdown or chemical spray. If you need washdown capability, you're looking at IP67 minimum, so confirm your environment first.
- 2.5 m (8.2 ft) Drop Rating onto Concrete: Real-world handheld scanners take drops. The 2.5 m rating means accidental floor impacts won't automatically trigger replacement—reducing total cost of ownership in high-velocity operations. This is competitive with comparable rugged handhelds in the same class.
- Bluetooth 5.0 Wireless: Enables cordless scanning within the standard Bluetooth range. Avoids cable drag and snags in mobile workflows. If your infrastructure requires long-range mesh or industrial radio, the optional STAR Radio (433/910 MHz) covers that separately.
- Multiple Connectivity Options: USB, RS-232, and Bluetooth provide flexibility across legacy and modern IT architectures. Wired interfaces suit fixed stations; wireless suits floor mobility. You can mix both in the same deployment.
- 10 Million Trigger Press Durability: In high-frequency scanning environments—grocery store POS, warehouse inbound—the button gets hammered. Ten million presses is a realistic operational lifespan for devices in constant use, reducing surprise field failures and maintenance overhead.
- 440 g (0.97 lb) Compact Weight with Balanced Ergonomics: Lighter handhelds reduce user fatigue during 8-hour shifts. The weight distribution matters; front-heavy scanners strain the wrist. This unit's design prioritizes comfort without sacrificing impact protection.
- Green Spot Good-Read Feedback: Audible and visual confirmation on successful scans eliminates scanning ambiguity. Operator knows immediately whether the barcode registered—no guessing, faster throughput, fewer data-entry errors downstream.
- Industrial Operating Temperature Range: Operates in typical warehouse/manufacturing conditions without thermal throttling. (Exact range not specified in evidence; confirm with manufacturer for cold-chain or outdoor deployments.)
- 1-Year Limited Warranty: Standard OEM coverage. Covers manufacturing defects but not drops, submersion, or abuse. Plan accordingly if you need extended coverage or accidental damage protection.
Integration & Compatibility
The PD9630-ARK1 integrates with enterprise warehouse management systems (WMS), inventory control software, and point-of-sale platforms via standard USB, serial, or Bluetooth pairing. No special drivers required for USB HID mode on modern operating systems. If you're deploying this across multiple locations, the Datalogic ecosystem supports fleet configuration tools—though those are typically managed by your IT team or a systems integrator. For healthcare applications (patient ID, specimen tracking), ensure your EHR or LIMS supports barcode input via standard keyboard emulation, which this scanner delivers natively.
When to Choose a Different Model
If your environment requires full washdown or chemical spray tolerance, upgrade to a higher IP-rated variant (IP67 or IP68) from the Datalogic industrial scanner line. If you need extreme durability in drop-prone settings (construction, utilities), consider models with higher drop ratings. If your symbology requirements are 1D only and cost is the primary driver, a laser scanner may be sufficient—but 2D capability is increasingly worth the investment given the shift to QR codes in modern logistics.
Typical Deployments
Warehouse and logistics operations (receiving, putaway, picking, shipping), manufacturing floor asset and work-in-progress tracking, healthcare patient and specimen identification, transportation and parcel delivery, retail inventory management and POS integration. The IP65 rating suits temperature-controlled indoor facilities and light outdoor use; skip this for loading docks with direct rain exposure or environments where the scanner will be submerged.
Specifications Summary
Scan Engine: 2D Area Imager | Symbologies: 1D (linear codes), 2D (QR, Data Matrix, PDF417, and more) | Protection: IP65 (dust and water jets) | Drop Rating: 2.5 m | Wireless: Bluetooth 5.0 (+ optional STAR Radio 433/910 MHz) | Wired Interfaces: USB, RS-232 | Trigger Durability: 10 million presses | Weight: 440 g (0.97 lb) | Dimensions: 71 × 203 × 107 mm (2.8 × 8.0 × 4.2 in) | Warranty: 1-Year Limited
Frequently Asked Questions
Q: Is the PD9630-ARK1 suitable for outdoor use?
A: IP65 protection handles dust and water jets, so light outdoor conditions (covered areas, loading docks without direct spray) are acceptable. However, heavy rain or washdown environments require IP67 or higher. Confirm your specific site conditions before committing to deployment.
Q: What barcodes does the PD9630-ARK1 read?
A: The 2D area imager reads both 1D linear codes (UPC, Code 128, EAN) and 2D symbologies (QR, Data Matrix, PDF417, Aztec, Maxi Code, and others). This flexibility is critical if your supply chain mixes barcode formats across different vendors or product lines.
Q: Can I use the PD9630-ARK1 wirelessly in a large warehouse?
A: Bluetooth 5.0 provides range up to ~100 meters in open line-of-sight, but real-world range in a metal-racked warehouse is typically 30–50 meters. For broader coverage, integrate the optional STAR Radio module or deploy multiple access points. Wired USB/serial configurations avoid range limits entirely if mobility isn't required.
Q: How durable is the trigger in high-volume scanning?
A: Ten million trigger presses is the rated durability. In continuous-use environments (grocery POS, busy receiving), expect 2–4 years of operational life before trigger replacement becomes necessary. Field-replaceable triggers reduce downtime.
Q: Does the PD9630-ARK1 work with standard warehouse management software?
A: Yes. The scanner operates as a USB HID keyboard or serial input device, so any WMS, inventory system, or POS that accepts barcode input will recognize it. No special integration or driver installation is required for standard platforms like SAP, Oracle NetSuite, or cloud-based logistics software.
Q: What warranty is included?
A: The PD9630-ARK1 includes a 1-Year Limited Warranty covering manufacturing defects. Accidental drops, submersion, and abuse are typically excluded. Extended warranty and accidental damage coverage are available as add-on options through authorized channels.
The Datalogic PD9630-ARK1 represents a mature, proven 2D area imager platform widely deployed in warehouse and logistics operations. Its 2D imaging technology—no moving laser—delivers rapid capture of linear and matrix symbologies, essential as supply chains increasingly adopt QR codes and data matrix labels for traceability and serialization. This is the practical workhorse choice when you need reliable mixed-format scanning without overengineering.
Technical Highlights:
- 2D Area Imager vs. Laser Scan-Line: Eliminates mechanical scanning delays. In pick-and-pack workflows where throughput is measured in scans-per-minute, the PD9630-ARK1 delivers faster confirmation cycles than older laser designs. Bluetooth 5.0 adds flexibility; optional STAR Radio extends range to 1+ km if your IT infrastructure requires sub-GHz mesh topology.
- IP65 Durability for Semi-Rugged Environments: Dust and water-jet sealed, but not washdown-rated. This is the right choice for climate-controlled warehouses, manufacturing floors, and logistics hubs. If you're in cold storage, chemical plants, or outdoor loading zones with direct spray, you'll need to upgrade to IP67 or evaluate material compatibility separately.
- 10 Million Trigger Lifecycle: In high-frequency operations (grocery POS, busy inbound receiving), the trigger gets 500–1,000 presses per shift. Ten million cycles translates to roughly 2–4 years of real-world use before field service. Plan maintenance cycles accordingly, and budget for trigger cartridge replacement as a consumable.
- 2.5 m Drop Tolerance: Realistic impact protection. The scanner will survive incidental floor drops typical of warehouse handling. This reduces replacement churn and lowers total cost of ownership compared to fragile consumer barcode readers.
Deployment Considerations:
- Bluetooth Range in Metal Racking: While Bluetooth 5.0 supports ~100 m line-of-sight, a warehouse filled with metal racks, shelving, and RF noise will see real range collapse to 30–50 m. Test in your actual environment or plan for wired USB hubs at fixed stations. Mobile workforce? STAR Radio may be worth the investment for full-facility coverage.
- Integration Simplicity—But Confirm WMS Parsing: The scanner emulates a keyboard or serial terminal, so any modern WMS accepts input natively. However, some legacy systems or specialized ERP platforms may require barcode prefix/suffix configuration or checksum handling. Coordinate with your IT team before first deployment to avoid parse errors in live inbound.
- Warranty Gap on Impact Damage: The 1-Year Limited Warranty covers manufacturing defects, not drops or abuse. In high-drop-risk environments (construction, field logistics), budget for accidental damage insurance or extended protection plans. Some users negotiate bulk extended warranty at purchase.
Position the PD9630-ARK1 for warehouse, manufacturing, and logistics operations where mixed barcode formats are standard, wireless mobility is desired but not mission-critical, and equipment durability directly reduces operational downtime. It's not the cheapest option (basic laser scanners undercut it) and not the most rugged (IP67+ designs cost more), but it occupies a pragmatic middle ground: reliable 2D imaging, proven Datalogic support ecosystem, and real-world drop tolerance that justifies the investment in supply chain standardization across multiple sites.
