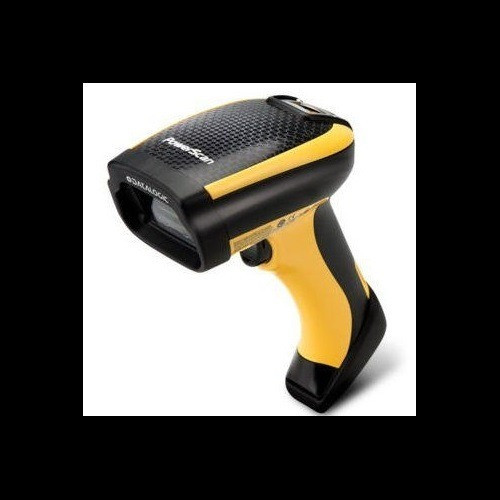

Datalogic PD9630-SRK1 2D Area Imager Industrial Barcode Scanner
The Datalogic PD9630-SRK1 is a purpose-built 2D area imager scanner for high-throughput manufacturing, logistics, warehouse, and healthcare environments where durability and scan reliability directly impact operational uptime. This handheld device combines robust construction with flexible wireless and wired connectivity, making it suitable for both greenfield deployments and integration into existing barcode infrastructure.
Key Features
- 2D Area Imager Technology: Captures both traditional linear (1D) barcodes and complex 2D codes—QR codes, DataMatrix, PDF417—without moving parts. Eliminates mechanical failure points common in laser scanners and reduces long-term maintenance costs on factory floors.
- IP65 Environmental Sealing: Dust and water resistance rated to IP65 means the scanner handles wet dock environments, washdown areas, and dusty manufacturing floors without component degradation. Skip this if you need full submersion protection (IP67 rated alternatives exist in other product families).
- 2.5 m (8.2 ft) Drop Tolerance: Rated for concrete-floor impact scenarios common in warehouse and transportation operations. Reduces replacement frequency from accidental drops during fast-paced scanning workflows.
- Bluetooth 5.0 Wireless + Wired Fallback: Bluetooth 5.0 provides modern 2.4 GHz connectivity for cordless mobility; wired USB, RS-232, and optional STAR Radio (433/910 MHz) alternatives support legacy systems and sites with RF interference concerns. Dual connectivity avoids vendor lock-in to wireless-only infrastructure.
- 10 Million Trigger Press Durability: The physical trigger switch is rated for 10 million actuations—equivalent to roughly 5–7 years of continuous use in high-volume scanning environments (500–1,000 scans per shift). Extends device lifespan and justifies capital spend in cost-per-scan analysis.
- Datalogic Green Spot Good-Read Indicator: Visual feedback (green light on successful scan) eliminates ambiguity for operators and reduces mis-scans in noisy environments where audio confirmation is unreliable or masked by warehouse noise.
- Lightweight Ergonomic Design at 440 g (0.97 lb): Low weight reduces hand and wrist fatigue during all-day handheld scanning operations. Critical for compliance-heavy environments (healthcare, pharmaceutical) where scan accuracy suffers when operator fatigue sets in.
- Compact Dimensions: At 71 x 203 x 107 mm (2.8 x 8.0 x 4.2 in), the scanner fits into supply belts, cargo pockets, or small holsters without bulk, improving worker comfort during extended picking or receiving shifts.
Integration & Deployment
The PD9630-SRK1 integrates into existing inventory management and warehouse execution systems via barcode scanner connectivity protocols including USB keyboard emulation, RS-232 serial, and Bluetooth pairing. Organizations standardizing on this model across multiple warehouses and facilities reduce operator training time and spare parts complexity. The scanner's compatibility with both modern and legacy serial-based infrastructure simplifies deployments in mixed-generation environments.
For wireless-heavy operations, the optional STAR Radio alternative provides frequency-agile connectivity (433 MHz or 910 MHz) in sites where 2.4 GHz saturation from Wi-Fi networks causes latency. Consult your IT team on frequency availability before ordering STAR variants.
What's in the Box
- 1x Datalogic PD9630-SRK1 scanner
- 1x USB charging/sync cable
- 1x Shoulder strap
- Quick Start Guide
Frequently Asked Questions
Q: Does the PD9630-SRK1 read both 1D and 2D barcodes?
A: Yes. The 2D area imager technology captures linear (1D) barcodes, QR codes, DataMatrix, PDF417, and other 2D symbologies in a single scan without reconfiguration.
Q: What's the warranty on the PD9630-SRK1?
A: The device includes a 1-Year Limited Warranty covering manufacturing defects and component failure under normal use.
Q: Can the PD9630-SRK1 work in wet environments?
A: IP65 sealing protects against dust and water spray, making it suitable for wet dock and washdown areas. It is not rated for full submersion—use IP67-rated alternatives if full underwater operation is required.
Q: What connectivity options does the PD9630-SRK1 support?
A: The scanner supports Bluetooth 5.0 wireless, USB wired connection, RS-232 serial, and optional STAR Radio (433/910 MHz). This flexibility allows integration into both modern and legacy inventory systems.
Q: How durable is the trigger switch?
A: The trigger is rated for 10 million presses, supporting 5–7 years of typical high-volume scanning use (500–1,000 scans per operator shift) before replacement becomes likely.
Q: Will the PD9630-SRK1 survive a drop to concrete?
A: The scanner is rated for 2.5 m (8.2 ft) drops onto hard surfaces, typical of warehouse floor impact scenarios. This rating does not cover repeated drops or drops from greater heights.
The PD9630-SRK1 strikes a practical balance for industrial scanning: rugged enough to handle factory and logistics wear, yet lightweight enough (440 g) that operators won't experience palm fatigue during extended shifts. The 2D area imager eliminates the mechanical complexity of older laser-based scanners—no moving mirrors to misalign, no timing circuits to drift. That simplicity translates directly into fewer service calls and lower total cost of ownership over a 5-year asset lifecycle.
Technical Highlights:
- IP65 + 2.5 m Drop Rating: Protects against real warehouse hazards—splash, dust, and clumsy operators. Not rated for submersion, so if your site hoses down equipment regularly, spec an IP67 variant instead.
- 10 Million Trigger Presses: In a 500-scan-per-shift environment, that's roughly 6–7 years of reliable service before the switch shows fatigue. Justifies the capital cost when calculated against scanner replacement frequency in high-velocity picking operations.
- Bluetooth 5.0 + Wired Fallback: Wireless mobility where your network is solid; hardwired RS-232 or USB when RF interference spikes or legacy serial PLC integration is required. Not all scanner vendors offer this flexibility.
Deployment Considerations:
- Confirm your inventory system supports Bluetooth 5.0 pairing or USB HID keyboard mode. Legacy serial-only systems will need the RS-232 cable variant.
- IP65 means splash-resistant, not submerged. Washdown environments are fine; continuous wet immersion is not.
- The Green Spot visual feedback is a genuine usability win in noisy warehouses where piezo beepers are masked by conveyor noise and dock activity.
The PD9630-SRK1 (often searched as PD9630 SRK1) is the right choice for mid-to-large operations standardizing on a single scanner SKU across receiving, picking, and shipping. It handles both legacy serial infrastructure and modern wireless networks without compromise, and its durability specs are real—not marketing fiction—backed by drop-test and trigger-cycle certifications that hold up in the field.
