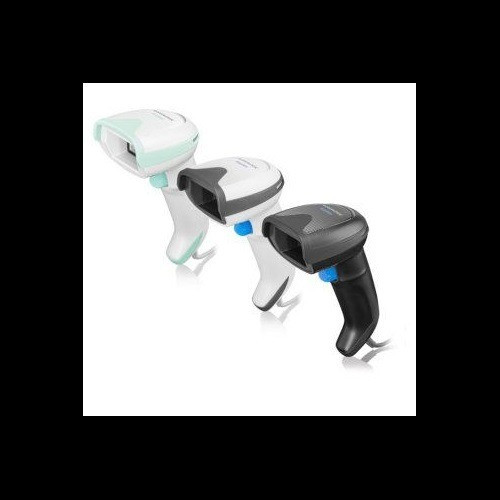

Datalogic GD4690-BK-HP 2D Area Imager Barcode Scanner
The Datalogic GD4690-BK-HP is a handheld 2D area imager scanner from the Gryphon I 4600 family, engineered for fixed-station enterprise deployments across retail, healthcare, and logistics. This wired scanner eliminates battery maintenance and mobile pairing complexity—a real operational advantage in high-volume POS, warehouse, and patient-intake environments where uptime directly drives revenue and safety outcomes.
Key Features
- 2D Area Imager Sensor: Captures both linear barcodes (UPC, Code 128) and 2D symbologies (QR codes, Data Matrix) without hardware swaps when barcode standards evolve. Wide-angle reading geometry means operators can scan at oblique angles without precise alignment—critical in fast-paced retail or clinical workflows.
- Three Connectivity Options (USB, RS-232, Keyboard Wedge): Accommodates legacy POS systems, modern PCs, and specialized hardware without proprietary adapters. Keyboard wedge mode emulates keyboard input, letting the scanner integrate into air-gapped or closed office environments without software drivers.
- Lightweight 240g Form Factor (0.53 lb): Extended scanning sessions—common in retail inventory or warehouse receiving—cause hand fatigue with heavier devices. At 240g, the GD4690-BK-HP reduces operator strain on eight-hour shifts, directly lowering RSI-related absenteeism in high-volume operations.
- Compact Dimensions (66 x 165 x 94 mm): Fits into tighter checkout stands, medication carts, or asset-tracking workstations where space is limited. Smaller footprint also simplifies mounting on existing POS hardware or mobile carts without major infrastructure redesign.
- Datalogic Green Spot Good-Read Feedback: Visual confirmation (LED flash or beep) that a barcode decoded successfully prevents duplicate scans and human guessing. In high-throughput retail or inventory settings, this feedback loop cuts error rates and rework.
- 5-Year Limited Warranty with Factory Support: Enterprise-class warranty aligns with typical 5–7 year IT equipment lifecycles. Datalogic's authorized service network minimizes downtime; spare units can be swapped on-site rather than waiting for mail-in repairs.
Connectivity & Integration
Wired connectivity eliminates the operational burden of Bluetooth pairing, battery charging schedules, and wireless interference troubleshooting. USB mode is standard for modern POS terminals; RS-232 supports legacy warehouse management systems; keyboard wedge accommodates office networks where IT policies restrict new drivers or software installation. The GD4690-BK-HP (often searched as GD4690 BK HP) integrates into existing enterprise infrastructure without custom development or middleware.
Deployment Scenarios
Ideal for retail chains standardizing on a single scanner model across hundreds of locations—simplified procurement, training, and spare parts logistics reduce total cost of ownership. Healthcare facilities deploying the GD4690-BK-HP at patient check-in, medication dispensing, and specimen tracking benefit from the scanner's proven reliability and compliance support across HL7 and pharmacy workflows. Warehouse and logistics operations using fixed receiving stations or inventory audit counters avoid the complexity of wireless fleet management while maintaining fast, accurate barcode capture. Multi-facility organizations achieve consistent performance and unified support contracts when deploying the same model across retail, office, and warehouse environments.
When to Choose a Different Model
If your environment requires mobile scanning (e.g., warehouse floor stock-checking or roaming healthcare staff), evaluate a wireless variant within the Datalogic barcode scanner lineup that supports 802.11 connectivity and extended battery life. If you need industrial-grade ruggedness (drop testing beyond 6 feet or chemical spray washdown), consider a ruggedized scanner family with higher IP ratings and reinforced optics. For very high-speed automated sortation or conveyor line scanning, area imagers may not be the optimal choice—contact a Datalogic systems engineer to evaluate fixed-mount or industrial-grade imaging systems.
Frequently Asked Questions
Q: Does the GD4690-BK-HP support QR codes and Data Matrix?
A: Yes. The 2D area imager architecture decodes both linear barcodes (1D) and 2D symbologies including QR codes, Data Matrix, PDF417, and Aztec codes. No firmware update or hardware change is required to switch barcode standards.
Q: What's the warranty on the GD4690-BK-HP?
A: 5-year limited warranty from Datalogic. Extended coverage (EaseOfCare program) is available for organizations seeking predictable multi-year support costs.
Q: Can I use the GD4690-BK-HP with my legacy RS-232 warehouse system?
A: Yes. The GD4690-BK-HP supports RS-232 connectivity alongside USB and keyboard wedge. No protocol translation or gateway required for serial systems.
Q: Is the GD4690-BK-HP suitable for high-volume retail (POS)?
A: Yes. The lightweight 240g design and fast decode rate make it well-suited to multi-hour POS shifts. USB connectivity is standard on modern point-of-sale terminals, and the green-read feedback confirms successful scans, reducing errors in high-throughput environments.
Q: What's the difference between keyboard wedge and USB mode?
A: Keyboard wedge emulates a keyboard input, allowing the scanner to work on air-gapped systems or those with restricted driver policies. USB mode provides direct communication to the host and is faster but requires a free USB port. Both are supported on the GD4690-BK-HP.
Q: Does Datalogic provide technical support for the GD4690-BK-HP?
A: Yes. Datalogic operates a global support network with factory repair centers and certified service partners. You can arrange on-site replacement, mail-in service, or phone-based troubleshooting depending on your support contract and location.
The Datalogic GD4690-BK-HP represents a mature, low-friction barcode capture platform optimized for organizations that prioritize reliability and integration simplicity over advanced mobility features. Its wired-only connectivity model eliminates battery dependency, Bluetooth pairing complexity, and wireless interference troubleshooting—a real operational win in fixed-station retail, healthcare, and warehouse environments where device standardization and uptime directly impact revenue and patient safety.
Technical Highlights:
- 2D Area Imager Sensor: Supports both 1D barcodes (UPC, Code 128) and 2D symbologies (QR, Data Matrix) without hardware swap when barcode standards evolve. Wide-angle reading geometry tolerates oblique scanning angles common in fast-paced retail or clinical workflows.
- 240g Lightweight Design: Reduces operator hand fatigue on multi-hour POS or warehouse inventory shifts. At this weight, the GD4690-BK-HP is noticeably less taxing than heavier industrial scanners, supporting higher scanning throughput per shift with lower RSI risk.
- Three Wired Connectivity Modes (USB, RS-232, Keyboard Wedge): USB integrates into modern POS terminals without drivers; RS-232 bridges legacy warehouse management systems; keyboard wedge works on air-gapped networks or systems with restricted driver policies. No proprietary adapters or software middleware required.
- Datalogic Green Spot Visual Feedback: LED confirmation of successful barcode decode prevents duplicate scans and operator guessing—directly reduces error rates and rework in high-volume retail or inventory environments.
Deployment Considerations:
- Wired Tether Requirement: Operators must remain within USB or serial cable reach of the host device. For roaming warehouse floor scanning or mobile healthcare staff, a wireless scanner variant is necessary—this is not a limitation of the GD4690-BK-HP itself, but a fundamental architectural choice that suits fixed stations and checkout counters.
- No Drop Rating Specified: The compact 66 x 165 x 94 mm form factor is lightweight but not rugged-certified. If your environment involves frequent drops onto concrete or chemical washdown, evaluate a ruggedized variant with formal IK and IP ratings.
- 5-Year Warranty Lifecycle Alignment: The warranty term matches typical enterprise equipment lifecycles. Datalogic's factory support infrastructure and certified repair network minimize downtime; spare units can be swapped on-site rather than waiting for mail-in service.
The GD4690-BK-HP is the right choice for retail chains, healthcare systems, and logistics operations standardizing on a single scanner model across fixed checkout stands, medication carts, and receiving stations. For multi-facility deployments, this scanner's proven reliability, simple wired integration, and strong warranty support reduce total cost of ownership and IT support burden over a 5–7 year lifecycle.
