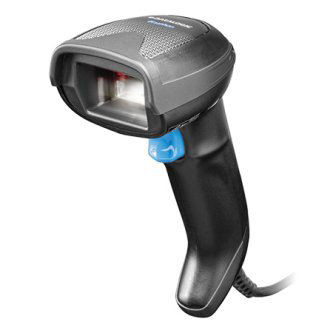

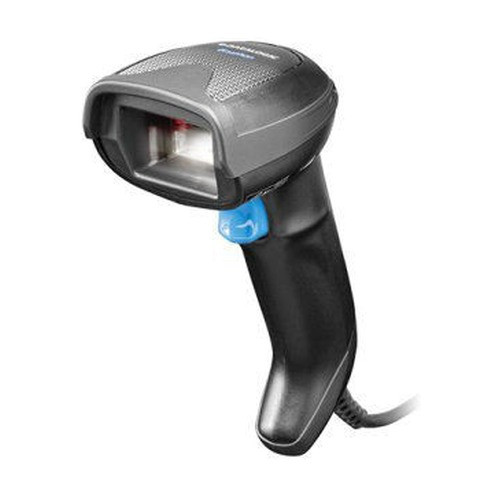

Datalogic GD4590-BK 2D Area Imager Handheld Barcode Scanner
The Datalogic GD4590-BK is a wired handheld 2D area imager scanner built for retail POS, warehouse operations, and light industrial asset tracking. Unlike older laser scanners, the 2D imager captures an image of the barcode rather than sweaming a single line—meaning it reads 1D and 2D codes (QR, DataMatrix, PDF417, and postal barcodes) from virtually any angle without requiring perfect alignment. This flexibility reduces scanning failures and operator frustration, especially in high-volume or chaotic environments.
Key Features
- 2D Area Imager: Captures both 1D and 2D barcodes from any orientation. No precise alignment required—faster scanning workflow and fewer rejects in busy retail or warehouse settings.
- Snappy Decoding Engine: Fast, reliable barcode recognition including postal codes and composite symbologies. Speeds throughput in distribution and fulfillment operations where scan velocity directly impacts labor cost.
- Green Spot Good-Read Feedback: Built-in visual confirmation light fires when a barcode is successfully read. Eliminates operator doubt and reduces accidental duplicate scans—measurable accuracy gain in high-speed checkout or inventory count scenarios.
- Multiple Connectivity Options: Wired connection via USB, RS-232, or Keyboard Wedge interface. Keyboard Wedge mode means zero software integration needed—the scanner acts as a USB keyboard, feeding barcodes directly into any application without drivers or middleware. Reduces deployment friction across diverse IT environments.
- Lightweight Ergonomic Design: At 222g (7.8 oz), weight is low enough that operators can hold and scan continuously for 8+ hours without significant hand fatigue. Matters when you have 50+ handheld scanners deployed across a warehouse—less fatigue equals higher productivity and fewer repetitive strain claims.
- Compact Form Factor: 64 x 160 x 89mm footprint fits easily into a hand, apron pocket, or mobile cart. Supports both fixed-mount checkout scenarios and roaming inventory-counting workflows without awkward bulk.
- 5-Year Limited Warranty: Datalogic-backed warranty covers defects and provides access to certified repair services. For fleet deployments spanning multiple locations, a predictable support SLA reduces unplanned downtime and keeps spare parts inventory manageable.
Integration & Compatibility
The GD4590-BK connects to any host system—POS terminal, mobile cart computer, warehouse management system (WMS), or office PC—via industry-standard USB, RS-232, or Keyboard Wedge. No proprietary interface means no vendor lock-in and no risk of obsolescence if your backend system changes. The Keyboard Wedge option is particularly useful in retail environments where you cannot modify POS software; the scanner simply emulates a keyboard, sending barcode data as if typed manually.
HD (high-definition) variants are available for applications requiring smaller or more densely packed barcodes—such as pharmaceutical lot tracking or compressed warehouse bin labels. Confirm barcode density and size with your applications team before purchase; standard and HD versions are otherwise compatible across your infrastructure.
Deployment Scenarios
The GD4590-BK excels in multi-location retail chains (consistency across hundreds of checkout lanes), warehouse receiving and putaway operations, healthcare supply chain management, and light manufacturing asset tagging. Its wired design means it's best suited for fixed or tethered mobile deployments rather than long-range roaming; if you need untethered mobility, consider a wireless variant in the Gryphon family.
When to Choose a Different Model
If you require wireless operation (Bluetooth or 2.4 GHz), look at cordless variants within the Datalogic Gryphon I 4500 family. If you scan extremely small or densely packed barcodes regularly, the HD-capable variant of the GD4590 may be necessary. If your environment demands rugged drop protection or submersion rating (IP67), confirm environmental requirements with Datalogic; standard commercial environments (retail, office, light warehouse) are well-covered by this model.
Frequently Asked Questions
Q: Does the GD4590-BK require software drivers or middleware to operate?
A: No. In Keyboard Wedge mode, it operates as a plug-and-play USB keyboard—no drivers, no configuration needed. USB and RS-232 modes may optionally use Datalogic software, but are not required for basic barcode-to-application integration.
Q: Can the GD4590-BK read QR codes and other 2D formats?
A: Yes. The 2D area imager reads QR codes, DataMatrix, PDF417, postal codes, and any 1D code (Code 128, UPC, EAN, etc.). It is not limited to 1D barcodes.
Q: What does the Green Spot do, and why does it matter?
A: The Green Spot is a visual confirmation light that flashes when a barcode is successfully decoded. It tells the operator immediately whether the scan was valid, reducing duplicate scans and operator errors in high-volume scenarios. This is especially valuable in retail checkout where speed and accuracy are both critical.
Q: Is the GD4590-BK suitable for outdoor or rugged warehouse environments?
A: It is rated for light industrial and warehouse environments but is not specifically rated IP67 or higher for full water/dust ingress. Confirm IP and environmental specifications with Datalogic if your deployment includes frequent wet or dusty conditions.
Q: How much does the GD4590-BK weigh, and can operators use it all day?
A: At 222g (7.8 oz), it is lightweight enough for extended all-day handheld use without significant operator fatigue. This is a key advantage over heavier scanners in high-volume retail or inventory environments.
Q: What is included in the 5-year limited warranty?
A: The 5-year limited warranty covers manufacturing defects and includes access to Datalogic certified repair services. Confirm coverage terms with Datalogic or your authorized reseller for specific exclusions and service options.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GD4590-BK (often searched as GD4590 BK) is a pragmatic choice for enterprises standardizing on a single handheld scanner model across dozens or hundreds of retail locations, distribution centers, or office environments. The combination of 2D imaging, Keyboard Wedge compatibility, and lightweight 222g ergonomic design addresses total cost of ownership in ways that matter: reduced operator strain means fewer workplace injuries and higher sustained throughput; Keyboard Wedge means you avoid custom integration costs on legacy POS systems; and the 5-year limited warranty provides predictable support across a geographically dispersed deployment.
Technical Highlights:
- 2D Area Imager Technology: Unlike single-line laser scanners, the GD4590-BK captures a full 2D image, allowing it to decode barcodes at any angle and from multiple symbologies (1D, 2D, postal codes) without operator training on "correct" scanning angle. This directly reduces reject rates and re-scans in high-volume retail or warehouse settings.
- Keyboard Wedge Interface: Emulates a USB keyboard, meaning the scanner works with any POS, WMS, or legacy application without drivers or middleware. Critical advantage when you have fragmented IT environments or cannot modify backend software.
- Green Spot Visual Confirmation: Immediate feedback that a barcode was successfully read, not just attempted. Measurable reduction in duplicate scans and operator errors compared to scanners with no read feedback.
- Multiple Connectivity (USB, RS-232, Keyboard Wedge): Flexibility to deploy the same hardware model across fixed checkout lanes, mobile carts, and roaming inventory counts without changing the scanner itself—only the interface cable or adapter changes.
Deployment Considerations:
- The GD4590-BK is a wired scanner. If your deployment requires untethered long-range mobility (roaming outdoor warehouse), investigate wireless variants in the Datalogic Gryphon family.
- Barcode density and size matter: Standard 1D/2D decoding is robust, but extremely small or densely packed labels (e.g., pharmaceutical blister packs, compressed bin labels) may require the HD variant. Confirm your barcode specifications before purchasing at scale.
- Keyboard Wedge mode is a strength for legacy system integration, but ensure your host system can accept keyboard input at the scan rate you expect. High-speed checkout scenarios (100+ scans/hour) rarely encounter bottlenecks, but misconfigured POS buffering can cause missed inputs.
Position the GD4590-BK for retail chains, healthcare supply networks, and multi-location warehouses where standardization and operator fatigue reduction drive ROI. The Snappy decoding engine and proven 2D imager technology make this a reliable workhorse for 24/7 scanning operations; pair it with a documented scanning procedure and Green Spot training, and you'll see measurable improvements in accuracy and throughput.
