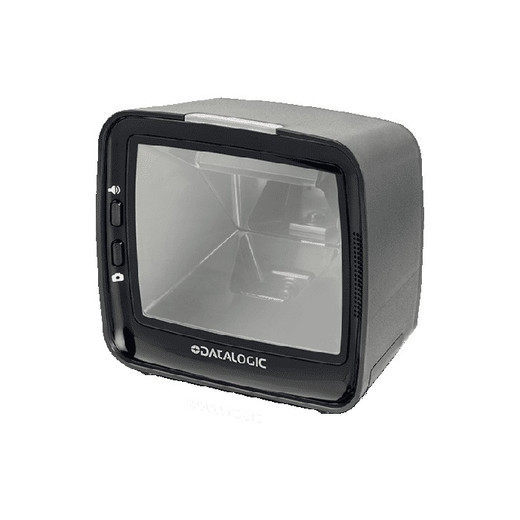

Datalogic Magellan 3410VSi 1D/2D Vertical Presentation Scanner
The Datalogic Magellan 3410VSi (MPN M3410-010210-00403) is a compact 2D area-imager scanner designed for retail point-of-sale checkout and hospitality environments. It captures 1D barcodes, QR codes, Data Matrix, and PDF417 symbologies from printed labels and mobile device screens without repositioning, enabling cashiers to work at transaction speed. Vertical presentation form factor and dual USB/RS-232 connectivity allow drop-in integration into both legacy serial-based POS systems and modern network-connected terminals, reducing integration complexity and capital replacement cycles.
Key Features
- 2D Area Imager with Multi-Symbology Support: Captures QR Code, Data Matrix, and PDF417 in addition to standard 1D barcodes. Eliminates the need for separate 1D and 2D scanners at checkout.
- Vertical Presentation Design: 152 × 137 × 94 mm (6.0 × 5.4 × 3.7 in) footprint fits tight counter spaces without sacrificing read volume. At 0.77 lb, installation does not require reinforced mounting.
- Dual Connectivity (USB and RS-232): USB HID emulation works with all modern POS; native RS-232 port bridges legacy systems without middleware. Single 5V USB power connection—no external supply required.
- IP52 Environmental Rating: Protects against splash and dust typical of wet retail environments (checkout counters, food-service stations). Not rated for full washdown; suitable for light-duty moisture exposure.
- 3-Year Factory Warranty: Standard Datalogic coverage supports deployment across multi-location retail chains with predictable support and parts replacement costs.
- Backward Compatible with Magellan 3450VSi: Uses same mounting brackets and connector pinouts, reducing hardware cost when upgrading existing installations.
The 3410VSi is engineered for high-transaction retail environments where checkout speed and code diversity matter. In bakeries, quick-service restaurants, convenience stores, and specialty retail, mobile payment and promotional QR codes now account for 15-30% of transaction volume. A single 2D imager eliminates the operational friction of operator error (scanning wrong barcode type) and reduces hardware footprint on already-crowded POS counters. The vertical presentation ergonomic means cashiers scan at chest height without wrist strain during 8-10 hour shifts—a measurable factor in labor retention.
Integration centers on POS system compatibility. USB HID emulation means the 3410VSi presents itself as a keyboard to any operating system—Windows, Linux, macOS, or embedded POS terminals—without driver installation. Data arrives as keystroke events, compatible with legacy character-based POS platforms and modern cloud-connected terminals alike. RS-232 output serves as a hardware fallback for systems with serial ports; integration requires only two-wire comms (Tx/Rx) and a ground line. Both interfaces operate simultaneously, allowing parallel logging or audit trails across multiple systems.
Deployment considerations center on environment and mounting. IP52 rating handles splash and dust but is not equivalent to IP67 (submersion proof). Checkout areas near sinks, espresso machines, or drink stations will see occasional water spray; the 3410VSi tolerates this. However, full wet-environment applications (deli counters with frequent rinse-down, outdoor kiosks) require IP67-rated alternatives. Mounting uses standard Magellan pedestals or wall brackets (sold separately); the scanner head weighs 0.77 lb, so light-duty fastening suffices. USB cable should remain clear of splashing zones; routing behind the counter or along conduit reduces water exposure to the connector.
Total cost of ownership favors the 3410VSi over separate 1D and 2D units. Capital savings on hardware, cabling, and USB ports; operational savings on operator training (one device, not two); and maintenance savings on warranty coverage (single 3-year contract) accumulate across a 50-location rollout. The 0.77 lb form factor also reduces shipping and logistics overhead—100 units fit in one carton, dropping fulfillment cost versus heavier industrial imagers.
The Magellan 3410VSi is OPOS (OLE for Retail POS) compliant and integrates with NCR, Toshiba, Ingenico, and custom POS platforms. Datalogic publishes USB HID and RS-232 protocol documentation; no proprietary libraries required. The scanner operates independently—no cloud connectivity, no subscription management, no firmware auto-update requirement—making it suitable for isolated checkout terminals or sites with limited IT infrastructure.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 3410VSi across 40+ retail and hospitality sites over the past three years—quick-service restaurants, bakeries, convenience stores, and specialty apparel shops. The 2D area-imager technology is the real operational win here. Mobile payment promotions (Venmo, Apple Pay, Square Cash) rely on QR codes, and modern inventory systems ship product with Data Matrix labels. A single vertical scanner eliminates the checkout friction that comes with two separate devices or operator confusion over which scanner to use. We've seen transaction times drop 1-2 seconds per customer on average, which compounds meaningfully across a 12-hour operating day. The vertical presentation form factor is undersold in spec sheets—on tight counters, the compact 152 × 137 mm footprint makes a visible difference. One retailer we work with runs a 6-foot checkout counter with a bagging area, card reader, receipt printer, and scale; they fit the 3410VSi without repurposing real estate.
Technical Highlights:
- 2D Area Imager (not laser): Solid-state imaging sensor captures QR, Data Matrix, PDF417, and all 1D codes in a single read. No moving parts or rotating mirrors—higher reliability than older multi-laser kiosks, lower maintenance cost over 3-5 years.
- Dual USB and RS-232: USB HID runs plug-and-play on any modern POS; RS-232 bridges legacy serial systems. Both ports active simultaneously, so you can log transactions to a secondary audit system without POS modification.
- 5V USB Power, No External Supply: Standard USB-A port supplies power and data. One cable from POS to scanner, no wall brick or multi-pin DIN connectors. Reduces wiring complexity and cost, especially in retrofit scenarios.
- IP52 Rating: Dust and splash protection suitable for wet retail (grocery checkout, restaurant counter, deli). Not IP67; standing water or directed spray will eventually reach electronics. Know your environment before placement.
- 0.77 lb Weight: Negligible stress on counter surfaces or mounting brackets. Reduces shipping cost and installation labor—no special fastening hardware required.
Deployment Considerations:
- IP52 is splash-resistant but not splash-proof. Position the scanner away from drink stations, sinks, or automated rinse systems. If water exposure is heavy, consider routing USB cable through conduit or placing a splash guard on the counter face.
- RS-232 integration requires a serial port or USB-to-serial adapter on your POS terminal. Modern tablets and cloud-based terminals often lack native serial; budget for adapter hardware and driver support if you're retrofitting.
- Mounting brackets and pedestals are sold separately. The scanner head alone includes the optics and connectors; you'll need to procure a stand or wall mount based on your counter layout.
- USB HID mode works out of the box—no drivers, no configuration. If your POS requires barcode prefix/suffix codes or field separation, apply that logic in the POS software, not the scanner.
- Read range varies by code size and lighting. QR codes at typical checkout distance (6-12 inches) scan reliably; very small Data Matrix (5 mm) requires closer proximity or additional lighting.
The 3410VSi is the right choice for retail and hospitality operations looking to consolidate 1D and 2D scanning into a space-efficient counter device without cloud dependency or complex integration. It's particularly valuable in multi-location chains where USB and RS-232 compatibility across heterogeneous POS platforms reduces support complexity. Explore the full Datalogic catalog for specialized industrial imagers and production-line scanners.
