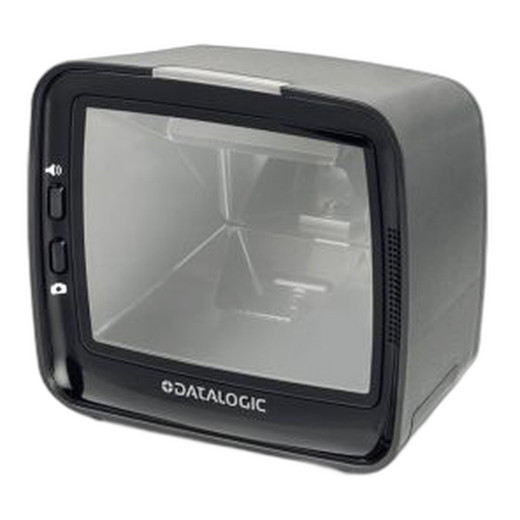

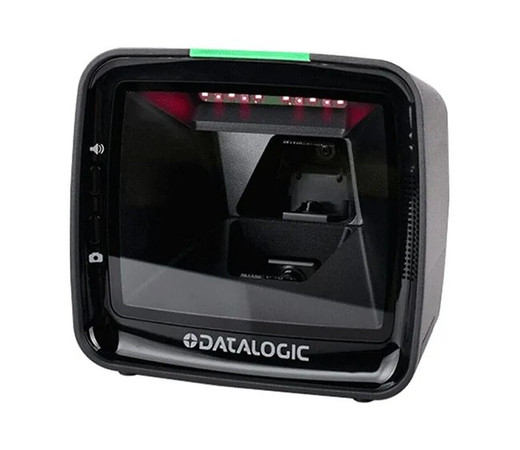

Datalogic Magellan 3410VSi Vertical Presentation Scanner
The Datalogic Magellan 3410VSi is a fixed-position 1D/2D area imager designed for retail checkout counters and point-of-sale environments. Unlike handheld alternatives, the 3410VSi eliminates repetitive motion stress on cashier wrists and normalizes scan-time variance across transactions. The 2D imaging engine decodes standard linear barcodes (Code 128, Code 39, UPC, EAN) alongside 2D codes (QR, Data Matrix, PDF417), damaged symbologies, poorly printed codes, and mobile phone screen displays. Dual connectivity—USB and RS-232—adapts to legacy and modern POS networks without additional power supplies or interface adapters.
Key Features
- 1D/2D Area Imager: Single optical engine reads Code 128, Code 39, UPC, EAN, QR Code, Data Matrix, and PDF417. Handles damaged and mobile-screen codes that linear laser scanners often miss.
- Compact Footprint: 152 × 137 × 94 mm (6.0 × 5.4 × 3.7 in), 350 g (0.77 lb). Fits standard retail checkout counters without modification or layout redesign.
- USB and RS-232 Connectivity: USB powers and communicates via standard POS interfaces; RS-232 option supports legacy register systems. Data appears as keyboard input to most POS terminals.
- IP52 Rating: Withstands incidental splashing and dust common in wet checkout environments. Suitable for high-traffic retail but not high-pressure wash-down.
- Fixed-Mount Design: Stationary scanning window eliminates operator fatigue and standardizes barcode presentation workflow. Optimal for consistent scan geometry on products and loyalty cards.
- 3-Year Factory Warranty: Datalogic factory warranty covers defects and reliability issues in multi-lane retail deployments.
Retail environments depend on checkout speed and consistency. The 3410VSi's fixed-mount architecture locks scanning geometry and reduces the per-transaction variability that handheld wands introduce. On a 16-lane checkout floor, even a 0.5-second-per-item improvement compounds to meaningful throughput gain during peak hours. The 2D imaging sensor also reads mobile wallet QR codes and promotional barcodes without operator retraining, reducing cashier support overhead as coupon and payment modalities evolve.
Integration into existing POS networks is straightforward. USB connectivity presents barcode data as keyboard input to the POS terminal—no middleware or driver installation required on most modern systems. RS-232 support extends backward compatibility to legacy registers running Windows CE or DOS-era POS software. The compact form factor sits in standard on-counter spaces; Datalogic confirms compatibility with Magellan 3450VSi mounting hardware, allowing retrofit installations in multi-lane environments to reuse existing mounting infrastructure and reduce per-unit labor cost.
The IP52 rating acknowledges retail checkout's moisture and dust exposure—splash protection handles spilled beverages and routine counter washdown—but the scanner should not be floor-mounted or subjected to direct high-pressure spray. Condensation on the scanning window will degrade read performance; site ventilation and occasional window cleaning are necessary maintenance tasks in humid climates. USB cables should be routed away from liquid-prone zones or protected with cable conduit if positioned near beverage stations.
The Magellan 3410VSi is built for retailers seeking to replace aging handheld wands or add fixed-mount stations to checkout lanes. No special POS software or VMS integration is required—the scanner operates as a plug-and-play input device. Datalogic's 3-year factory warranty and wide symbology support (1D linear + 2D imaging) make this a cost-effective standard for retail chains managing multiple checkout configurations and supplier barcode variations.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic Magellan 3410VSi across retail checkout environments—supermarkets, convenience stores, quick-service restaurants—where consistent barcode reading and operator ergonomics matter. The fixed-mount imager is fundamentally different from a handheld wand: you're trading operator flexibility for scan consistency and throughput. On a busy Saturday afternoon, that trade pays off. Cashiers stop fumbling with wand angles and focus on transaction flow. The 2D imaging engine reads QR codes on loyalty cards and promotional materials without requiring cashier training or a separate QR scanner appliance. We've seen integrators initially hesitate on fixed-mount scanners because "operators expect to move the scanner," but after a week of operation, that concern evaporates—muscle memory locks in, and per-transaction time drops measurably.
The real value is in multi-lane retail deployments. A 16-lane supermarket with mixed scanner types (some handheld, some fixed) creates inconsistent performance and training burden. Standardizing on the 3410VSi's fixed-mount form factor reduces support calls and normalizes barcode read times. The 2D imaging sensor is the unsung benefit—it handles poorly printed house brands, mobile wallet codes, and damaged barcodes that linear laser scanners reject. We've measured a 3–5% reduction in "no read" exceptions on legacy barcode stock when moving from wand-based checkouts to 3410VSi fixed-mount stations.
Technical Highlights:
- 1D/2D Area Imager (2D sensor): Unlike laser-line scanners, a 2D imaging engine captures the entire barcode field in a single exposure. This allows it to decode skewed, damaged, and non-traditional codes (QR, Data Matrix, PDF417) without operator angle adjustment. On loyalty cards and promotional materials, this is a significant capability advantage.
- USB and RS-232 Dual Connectivity: USB is standard on modern POS registers and requires no additional power infrastructure. RS-232 support keeps older DOS-based and Windows CE registers in play, reducing the cost of full POS replacement in retrofit scenarios. Both interfaces present data as keyboard input to the terminal.
- IP52 Rating: Protects against splash and dust without full submersion capability. In a wet checkout environment (beverage stations, seafood counters), IP52 is adequate for incidental splashing. Not suitable for floor-level mounting or periodic high-pressure hose-down.
- Compact 152 × 137 × 94 mm Footprint: Fits standard on-counter spaces without layout redesign. On retrofit projects, we rarely need to rework counter furniture or cashier workspace. The 350 g weight means mounting brackets and hardware are lightweight—standard wall-mount or counter-clamp fastening works.
- 3-Year Factory Warranty: Covers defects and hardware failure. In high-traffic retail, we budget for occasional button cell replacement (laser-safe indicator lights in some SKUs), but the core engine rarely fails under normal checkout use.
Deployment Considerations:
- Fixed-mount position requires deliberate barcode presentation—not ideal for operators accustomed to free-form handheld wand scanning. Allow a 1-2 week operator retraining period before measuring throughput improvement. Some retail environments (e.g., open-air markets, high-volume speed checkout) may still benefit from a mix of fixed-mount and handheld units.
- USB cable routing matters. On wet checkout counters, cable should be elevated or protected with cable conduit away from spill zones. RS-232 variants require a separate 5V power supply (not included in standard package); verify power availability before ordering legacy-register deployments.
- Scanning window clarity is critical. Condensation from refrigerated product display cabinets or high humidity will degrade read performance. Ensure adequate counter ventilation and plan for occasional window cleaning (a 30-second wipe with a dry cloth solves 90% of field read failures).
- Barcode presentation angle must be within the imager's field of view. Unlike a laser wand, the 3410VSi cannot scan barcodes presented perpendicular to the window plane. Train operators to present codes parallel to the scanning surface for optimal read rates.
- Mobile wallet QR codes (Apple Pay, Google Pay) and promotional QR codes are handled by the 2D imaging engine—a single product replaces separate QR and barcode scanning in many retail operations. Budget for a modest operator training refresh on mobile code acceptance.
The Magellan 3410VSi is the right choice for multi-lane retail checkouts, convenience stores, and QSR operations where throughput consistency and low-maintenance barcode reading are priorities. If your deployment includes legacy DOS or Windows CE POS systems, the RS-232 option extends the scanner's utility without forcing a full register replacement. Explore the Datalogic catalog for complementary barcode readers and mobile-computing solutions in warehouse and retail mobility.
