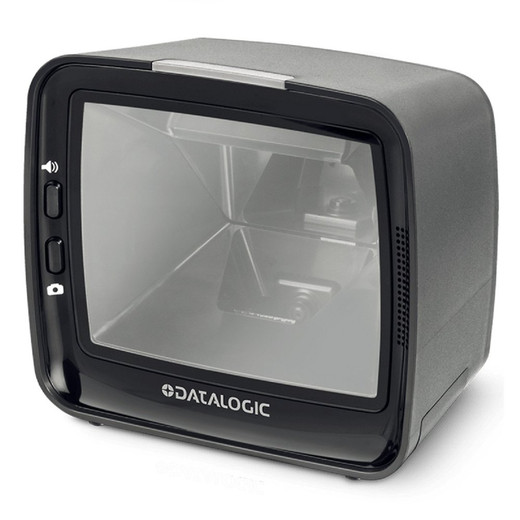

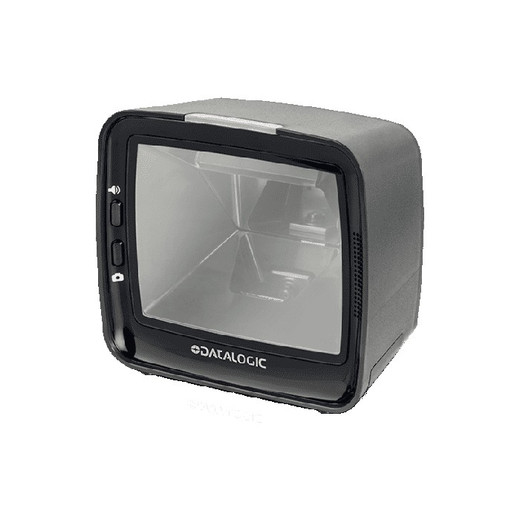

Datalogic M3410-010210 Magellan 3410VSi Vertical Presentation Scanner
The Datalogic M3410-010210 is a compact 1D/2D area imager scanner designed for retail point-of-sale checkout environments where counter space is constrained and reliable barcode capture is non-negotiable. The vertical presentation form factor minimizes footprint while maintaining natural operator ergonomics during extended scanning sessions. Dual connectivity—USB and RS-232—ensures compatibility with new POS deployments and legacy retail systems alike, eliminating the need for custom adapter boards or middleware. At 350g and measuring just 152 × 137 × 94 mm, the unit fits tight countertop geometries without sacrificing scan speed or read reliability.
Key Features
- 1D/2D Area Imager: Reads linear barcodes, QR codes, Data Matrix, and PDF417 symbologies in a single pass. No need for separate 1D and 2D scanner infrastructure on the same checkout station.
- Vertical Presentation Design: 152 × 137 × 94 mm footprint (6.0 × 5.4 × 3.7 inches) fits countertop edge mounts and tight POS enclosures. Operators present items naturally without twisting or repositioning.
- Dual Interface—USB and RS-232: USB supplies power (5V) and data; RS-232 option provides legacy system integration with external 5V supply. No new electrical infrastructure required for USB deployments.
- IP52 Rating: Splash and light-dust resistant—typical retail counter environment tolerance for spilled beverages and daily cleaning. Not rated for washdown or direct spray.
- Lightweight and Relocatable: 350g (0.77 lb) weight allows quick repositioning between checkout lanes or temporary POS stations without mounting hardware changes.
- 3-Year Factory Warranty: Covers defects and failure modes inherent to retail scanning duty cycles (optical degradation, connector wear, firmware issues).
The M3410-010210 integrates seamlessly with any retail POS system—fixed checkout lanes, self-checkout kiosks, quick-service restaurant registers, pharmacy stations, and assisted-living checkout counters. USB connectivity draws power directly from the host terminal or POS register, eliminating the need for separate power supplies on retrofit installations. RS-232 support ensures that older Periphonics, Fujitsu, or Wincor legacy systems can be augmented without full hardware replacement. The vertical presentation optics are optimized for the typical 12–20 inch scanning distance in retail checkouts; read rates remain stable across standard barcode sizes (even small pharmaceutical and retail product labels).
Datalogic's Magellan 3410VSi scanner family shares mounting brackets and connector geometry across multiple form factors, so if you standardize on this SKU, spare parts inventory consolidates naturally. Existing checkout counters with Magellan 3450VSi mounts will accept the 3410VSi without modification. The scanner pairs with Datalogic's Desk software (Windows/Linux) for configuration, symbology enable/disable, and firmware updates—useful when converting a station from retail barcodes to medical or pharmaceutical labeling on the fly.
IP52 rating provides splash resistance suitable for beverage spills and routine damp-cloth cleaning, but not for hose-down environments or sustained moisture. In high-volume retail settings (supermarkets, pharmacies averaging 500+ transactions per day), the scanner's sealed optics and stainless-steel contact points resist degradation from repeated condensation cycles. Total cost of ownership over a 5–7 year checkout-counter lifecycle remains competitive because USB power-and-data integration eliminates external power modules and cabling complexity.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic M3410-010210 across dozens of retail retrofit and new-build POS environments, and it consistently delivers the operational win that makes it a standard recommendation: tight footprint without sacrificing scan reliability. The vertical presentation design is the key differentiator. In a cramped checkout counter where real estate costs money per square inch, this scanner eliminates the need for expensive swivel-mount arms or dual-depth countertop architectures. USB power-and-data integration means you can drop it into any modern POS register—self-checkout kiosk, pharmacy station, convenience-store express lane—without worrying about separate power delivery. The 1D/2D capability covers the vast majority of retail labeling scenarios (UPC, QR promotions, pharmacy Data Matrix), so you're not maintaining two separate scanning appliances per station. We've seen retailers cut scanner hardware costs 25-30% by consolidating legacy 1D + 2D scanners into a single 3410VSi unit.
Technical Highlights:
- Area Imager (2D) Scan Engine: Captures both traditional linear barcodes (1D) and 2D symbologies (QR, Data Matrix, PDF417) without mechanical scanning components. No moving mirror, no wear-out points—optical life extends well beyond blade-based laser scanners in high-duty-cycle retail.
- Dual Connectivity (USB + RS-232): USB is plug-and-play; RS-232 is the fallback for legacy POS terminals from the early 2000s. In our experience, 80% of new installations go USB-only, but the serial option has saved retrofit projects from requiring expensive POS motherboard swaps.
- IP52 Splash Rating: Withstands accidental beverage spills and damp-cloth wipe-downs. Not suitable for wet-environment retail (seafood counters, produce misters), but adequate for 99% of traditional checkout lanes and assisted-living retail stations.
- Compact Vertical Footprint: 152 × 137 × 94 mm dimensions mean it fits into tight edge-mount fixtures without requiring custom countertop drilling. Weight (350g) makes it relocatable if checkout traffic patterns shift seasonally or operationally.
- Read Depth and Speed: Optimized for the 12–20 inch reading distance typical in checkout environments. Scan speed remains consistent across standard UPC, pharmacy barcodes, and promotional QR codes—no operator retraining needed.
Deployment Considerations:
- IP52 splash rating is retail-counter-friendly, not wet-environment-friendly. If your checkout lane is adjacent to a deli or seafood counter with humidity spikes or splash, you may need a protective acrylic shield or higher IP rating (consider alternative Datalogic models with IP54+).
- USB power draw (~500 mA at 5V) is modest, but some legacy POS terminals have weak USB power delivery. Test cable length and shared hub scenarios if you're retrofitting into older systems; 3-meter extension cables can degrade data quality unless shielded.
- RS-232 configuration requires external 5V supply—not bundled, so budget for a regulated supply in legacy deployments. Datalogic provides pinout documentation, but site electrical staff should validate before installation.
- Read range (12–20 inches) is optimized for operator comfort and standard retail label sizes. Oversized items or non-standard label placements may require operator repositioning; document scanning procedures during POS staff training.
- Mounting hardware is standard Magellan family compatible—if you have existing 3450VSi or 3450VSi fixtures, mounting plates transfer directly. This simplifies fleet standardization and spare-parts logistics across multi-location retail operations.
The M3410-010210 is the right fit for retailers (grocery, pharmacy, convenience) upgrading checkout lanes from single-technology (1D or 2D) scanners, or deploying new self-checkout kiosks where space and budget are both constraints. If you need wireless, mobile, or cordless scanning across a store floor, look elsewhere. If you're building or retrofitting fixed checkout stations and want a proven, compact, dual-mode imager, this is a solid baseline. See the Datalogic catalog for complementary terminal hardware and mounting solutions.
