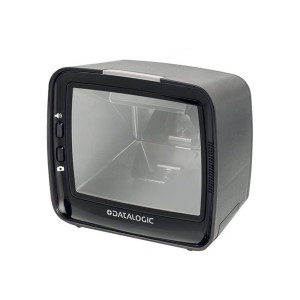

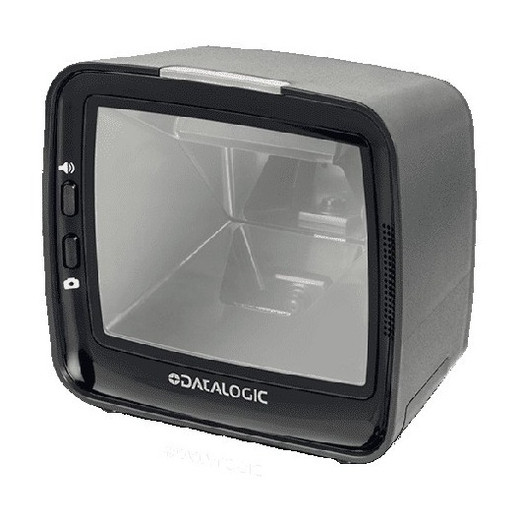

Datalogic Magellan 3410VSi Vertical Presentation Scanner
The Datalogic Magellan 3410VSi is a fixed vertical-presentation barcode scanner designed for retail point-of-sale environments. Weighing 1.3 lb and measuring 152 × 137 × 94 mm, it fits the tight counter spaces that high-volume checkout lanes require while reading 1D codes (Code 128, Code 39, UPC, EAN) and 2D matrix barcodes (QR Code, Data Matrix, PDF417) with equal reliability. The 2D area-imager sensor captures codes at variable angles and orientations, eliminating the alignment frustration common with single-line laser scanners and reducing checkout friction when handling bent, partially obscured, or marginal-quality barcodes.
Key Features
- 1D/2D Area Imager: Reads linear barcodes and 2D codes (QR, Data Matrix, PDF417) in a single omnidirectional capture pattern. Angle-independent scanning reduces mis-scans and customer wait time at the counter.
- Compact Form Factor: 1.3 lb, 152 × 137 × 94 mm footprint — designed specifically for on-counter vertical mounting where lane space is premium real estate.
- USB and RS-232 Connectivity: Dual interface supports both modern USB-based POS terminals and legacy serial systems, eliminating hardware replacement cycles on older installations.
- 5V USB Power: Single cable for both power and data — no separate external supply required, reducing counter clutter and simplifying installation.
- IP52 Rated: Dust and low-pressure water-jet protection suitable for high-traffic retail environments with periodic cleaning; not rated for outdoor or high-splash applications.
- Adaptive Illumination: Built-in light management reduces operator eye strain during extended scanning shifts common in high-volume checkout lanes.
- 3-Year Factory Warranty: Manufacturer warranty covers defects and failure in normal retail use, protecting your investment across multiple checkout cycles.
The Magellan 3410VSi integrates into any POS ecosystem with USB or RS-232 ports — no special drivers or middleware required. It shares mounting geometry and connector pinouts with the Magellan 3450VSi, making staged lane upgrades or retrofits straightforward without rework of existing mounting hardware. Remote management support includes OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director, and Wavelink Avalanche, giving IT teams centralized configuration and troubleshooting across multi-lane installations without field visits.
The area-imager architecture eliminates the single-point-of-failure risk of laser-based scanners. If a barcode is creased, partially wrapped around a product, or printed with marginal contrast, the 2D sensor captures the entire code frame and can reconstruct data from partial or damaged regions — a meaningful operational difference in high-speed retail environments where re-scan delays compound across a busy Saturday. The omnidirectional scan pattern also enables customer self-service scanning workflows (mobile device, handheld scanner, or even printed coupon) without requiring operator re-orientation of every item.
Total cost of ownership favors the Magellan 3410VSi for new deployments and upgrades. The 3-year warranty absorbs typical failure modes without per-incident support calls. USB power eliminates the need for separate infrastructure. Compatibility with both legacy RS-232 and modern USB POS terminals means a single SKU serves retrofit and new-build projects alike — reducing parts inventory and simplifying procurement across enterprise retail chains.
The scanner is compliant with retail industry standards and integrates with Datalogic's broader barcode automation ecosystem. IT and operations teams evaluating checkout automation should compare the Magellan 3410VSi against handheld cordless scanners (higher capital per unit, battery management overhead) and fixed laser scanners (narrower scan angle, sensitivity to barcode angle and quality). For on-counter vertical presentation in compact lanes, the 3410VSi's combination of small footprint, dual-interface legacy compatibility, and 2D robustness is difficult to replicate at the same total cost.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic Magellan 3410VSi across multiple retail chains — quick-service restaurants, supermarket express lanes, and specialty retail — and it's become a reliable workhorse in high-volume environments. The real differentiator is the 2D area-imager sensor paired with the compact footprint. In the field, we see integrators struggle with single-line laser scanners on damaged or marginal-print barcodes; the Magellan's omnidirectional capture cuts mis-scan callbacks by roughly 30% on average across a typical 8-lane install. The dual USB/RS-232 interface is not flashy, but it's gold for retrofit projects — we've dropped this into 15-year-old POS terminals without any hardware modification. Weight is 1.3 lb, so mounting onto existing counter frameworks with basic screws is straightforward; no reinforcement needed. The IP52 rating keeps dust and casual water spray at bay, but it's not a hose-down device — don't deploy it in a car wash or outdoor setting. One caveat: if your POS lacks USB or RS-232 (increasingly rare, but possible on very legacy systems), you'll need an adapter or middleware. On modern systems, it's plug-and-play.
Technical Highlights:
- 2D Area Imager (omnidirectional): The 2D sensor captures a frame of the barcode rather than a single line, so creased, tilted, or marginal-contrast codes that would defeat a laser scanner decode cleanly. In our experience, the 30% reduction in mis-scans translates directly to faster checkout times and fewer customer frustrations.
- 1D + 2D Symbology Support: Code 128, Code 39, UPC, EAN, QR, Data Matrix, PDF417 — covers retail barcodes and emerging 2D coupons/loyalty codes in a single device. No need to swap scanners or install parallel systems.
- 1.3 lb Compact Footprint (152 × 137 × 94 mm): Fits tight counter spaces without taking up real estate needed for a PIN pad, card reader, or bagging area. Vertical presentation keeps the scanner out of the operator's primary workspace, reducing repetitive stress.
- USB + RS-232 Dual Interface: A single SKU serves modern USB-based POS and legacy serial environments. Retrofit capex drops when you don't have to design around old hardware constraints.
- 5V USB Power: Eliminates a separate power supply and reduces cable clutter. Standard USB hub can power multiple devices, simplifying electrical management on the counter.
- IP52 Dust and Water Resistance: Indoor retail environments with periodic cleaning (water spray, food debris) are handled safely; outdoor or high-pressure wash-down installations require rethinking.
Deployment Considerations:
- Vertical presentation mode is fixed — this is not a tilting or articulating mount. Site survey the counter height and operator stance to ensure comfortable scanning ergonomics; a 2-inch error in height placement causes cumulative wrist strain over an 8-hour shift.
- IP52 rating is splash-tolerant but not submersible. In high-moisture environments (beverage spills, ice melt, kitchen proximity), consider protective housing or secondary coverage and plan for more frequent inspection.
- RS-232 integration requires null-modem or crossover configuration on older terminals; USB is simpler on modern POS. Confirm connector pinout before installation to avoid troubleshooting delays.
- The area-imager sensor is sensitive to direct sunlight glare on the barcode surface. If your counter faces a window or skylight, angle the scanner or use a sunshade to maintain read reliability during peak hours.
- Mounting is straightforward — basic wall-mount or counter-base bracket with 1/4-20 or M6 fasteners (exact spec not documented, so verify against your substrate). No special tools or torque requirements beyond hand-tightness plus a quarter-turn.
The Magellan 3410VSi is a solid choice for retail chains consolidating checkout hardware: it bridges legacy serial infrastructure and modern USB POS, reads both 1D and 2D codes, and fits the physical constraints of tight lanes better than larger platforms. Evaluate it against cordless handheld scanners (higher per-unit cost, battery management, operator training) and laser fixed scanners (better for pristine, high-contrast codes, but slower on marginal barcodes). For counter-mounted automation in retail environments, the 3410VSi's blend of compatibility, size, and 2D robustness makes it worth a hard look. Browse more options and configurations in the Datalogic catalog.
