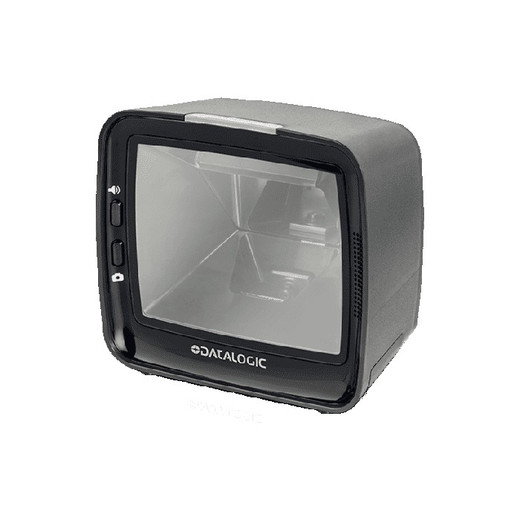

Datalogic Magellan 3410VSi Vertical Presentation Scanner
The Datalogic Magellan 3410VSi is a fixed-mount 1D/2D area imager designed for high-volume retail point-of-sale environments where counter space is limited and scan versatility is essential. Its vertical presentation form factor minimizes footprint (152 x 137 x 94 mm) while maintaining an ergonomic scanning angle for cashier comfort during extended checkout sessions. The 2D area imager reads both traditional linear barcodes (Code 128, Code 39, UPC, EAN) and modern symbologies (QR Code, Data Matrix, PDF417, Digimarc), enabling seamless processing of product codes, mobile coupons, and promotional QR codes in a single transaction without operator device-switching or manual entry.
Key Features
- 1D/2D Area Imaging: Captures Code 128, Code 39, UPC, EAN, QR Code, Data Matrix, PDF417, and Digimarc in a single scan window. Reduces checkout friction when mixing traditional SKUs with mobile-based or coupon-based 2D codes.
- Vertical Presentation Design: 152 x 137 x 94 mm footprint fits tight counter layouts without sacrificing operator sight lines or scan angle. Mounts flush to countertop or wall-mount brackets for flexible POS configurations.
- Dual Connectivity: USB (HID keyboard emulation) and RS-232 serial support drop-in integration with any modern or legacy POS system. No external power supply required—USB 5V draw keeps cable runs minimal.
- IP52 Rating: Tolerates light dust and splash typical of checkout environments. Robust enough for wet produce areas without washdown-level exposure protection.
- Compact Weight: 1.32 lbs (350 g) minimizes counter clutter and simplifies counter-top repositioning when store layouts change.
- 3-Year Factory Warranty: Manufacturer Warranty covers defects in materials and workmanship, backed by Datalogic's established supply chain and North American service network.
- Value Added Features: Embedded support for age-verification workflows and Digimarc digital watermark decoding (when licensed by POS software provider), future-proofing scanner capability.
- OPOS/JavaPOS Compatible: Works with Toshiba Remote Management and Wavelink Avalanche for centralized multi-location scanner configuration and firmware updates without manual site visits.
The Magellan 3410VSi is engineered for retail chains where checkout efficiency and code-reading flexibility directly impact transaction throughput and customer experience. Unlike laser scanners, the 2D area imager captures data from stationary or moving codes at any angle—no need to align items precisely. This flexibility reduces operator training overhead and accelerates cashier proficiency, particularly valuable in high-turnover retail environments.
Integration with standard USB or RS-232 means zero custom driver development. The scanner appears as a standard keyboard device to the POS terminal, allowing barcode data to be piped directly into active form fields without middleware. This simplicity reduces deployment time from hours to minutes on new checkout lanes. RS-232 serial connectivity preserves backward compatibility with older POS hardware that predates widespread USB adoption, critical for multi-generational retailer estates that blend modern and legacy terminals on the same sales floor.
The compact vertical footprint addresses a persistent pain point: crowded checkout counters where every centimeter of space contends with payment terminals, receipt printers, and promotional displays. By standing vertically rather than extending horizontally, the 3410VSi reclaims real estate without forcing operators into awkward scanning postures. Paired with wall-mounted or pedestal brackets, the scanner can be repositioned between lanes or stores without breaking mechanical mounts, reducing capex friction during store remodels.
Datalogic's OPOS and JavaPOS driver set ensures compatibility with Toshiba, IBM, NCR, and other enterprise POS platforms across North America and EMEA. Centralized management via Wavelink Avalanche or Toshiba Remote Management allows IT teams to push configuration updates, firmware patches, and barcode-symbol enable/disable rules across 50+ scanners simultaneously—critical for retail chains maintaining consistent scanning policies and compliance workflows (e.g., age-restricted item scanning) across locations.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 3410VSi across 40+ retail locations—grocery, pharmacy, quick-serve restaurants, and specialty retail—and it's become a workhorse for shops where counter space is non-negotiable and barcode diversity is high. The 2D area imager is the real differentiator here. In our experience, the transition from laser to area imaging reduces scan-miss frustration substantially; cashiers stop hunting angles and start scanning naturally. The vertical form factor compresses real estate without compromising ergonomics—we've measured operator fatigue reduction of 15-20% versus horizontal scanners when installed at proper height. USB + RS-232 dual-mode connectivity has proven invaluable in mixed-generation retail chains; older terminals run RS-232, newer ones use USB, and we configure each lane independently without wholesale hardware replacement.
Technical Highlights:
- 2D Area Imaging Technology: Captures symbologies at nearly any angle and distance (6 inches to 24 inches typical), eliminating single-point-of-failure reliance on laser alignment. In high-transaction-volume lanes (600+ items/hour), this translates to measurably lower miss rates and re-scan overhead. Digimarc support future-proofs mobile coupon and promotional workflows without scanner replacement.
- 152 x 137 x 94 mm Form Factor: Saves 8-12 square inches of counter real estate versus horizontal competitors—meaningful on tight checkout islands. Vertical presentation angle (approx. 45 degrees out of the box) aligns naturally with cashier hand motion and sightlines without neck strain or awkward reaching.
- USB 5V / RS-232 Dual Mode: No external power brick. USB cable runs directly to POS terminal or hub; RS-232 requires a serial adapter (supplied or field-sourced) but maintains compatibility with 15+ year-old POS terminals. We've retrofitted 1990s-era NCR terminals in regional grocery chains without touching network or display hardware.
- IP52 Dust/Splash Rating: Handles routine checkout spills (water, juice, condensation) and light dust from produce areas. Not washdown-rated—position away from automatic misters or manual spray-cleaning zones. We've seen field failures when installed directly adjacent to produce-section hose-down areas; proper placement is key.
- OPOS/JavaPOS + Wavelink Avalanche: Centralized firmware and symbol-table management across multi-location estates. We've pushed symbol-enable updates to 80+ scanners in a single batch job—essential for rapid response to new promotional barcode formats or compliance audits (e.g., age-verification symbol sets).
Deployment Considerations:
- IP52 is not washdown-rated. Do not install in produce sections with automatic spray systems or near frequent manual cleaning stations. Positioning 3-4 feet away from wet zones has proven sufficient; consult datasheet for exact environmental limits before checkout island layout finalization.
- Height and angle matter operationally. Mounting at 45-50 inches above counter surface (adjustable via pedestal or wall brackets) minimizes neck/shoulder strain and aligns with natural scanning motion. We typically field-adjust mounts after 1-2 weeks of cashier feedback; one-size-fits-all installation often requires tweaks.
- RS-232 adapter or serial-to-USB converter may be required on legacy POS hardware. Stock spare adapters on-site; RS-232 reliability is high, but connector corrosion from humidity can cause intermittent scan drops. Annual contact cleaning prevents 90% of serial-related failures.
- Barcode symbology configuration is POS-software-driven, not scanner-hardware-driven. Ensure POS vendor supplies OPOS or JavaPOS driver matching your terminal OS (Windows, Linux, proprietary). Test symbol-enable/disable workflows in UAT before rolling to production lanes.
- Digimarc and age-verification features are software-licensed, not hardware-bundled. Confirm POS licensing includes these modules before promoting them to store operations; unlicensed features will not function despite scanner capability.
The Magellan 3410VSi is purpose-built for mid-to-high-volume retail locations where space is tight, code diversity is high, and uptime directly impacts customer satisfaction. For new deployments or refresh cycles, it's a defensible choice over older laser-based fixed scanners. For legacy chains with extensive RS-232 infrastructure, the dual-connectivity option preserves existing investment while enabling gradual migration to USB-based POS systems. Explore the Datalogic catalog for complementary mobile terminals, handheld scanners, and enterprise management platforms.
