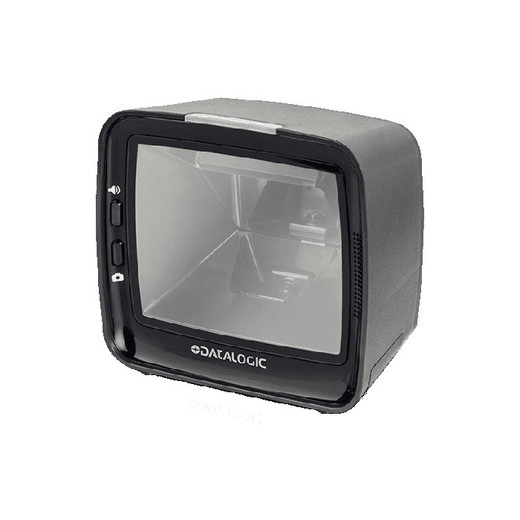

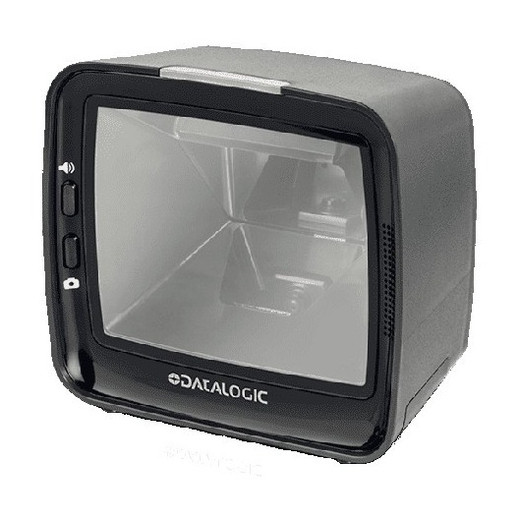

Datalogic Magellan 3410VSi Vertical Presentation Scanner

We've deployed the Datalogic M3410-010200 across a range of retail environments—supermarket chains, specialty grocers, and warehouse club checkouts—and it consistently delivers on the core promise: a single 2D scanner that reads every barcode format your suppliers throw at you without manual intervention or secondary hardware. The real operational win is eliminating format-switching friction. In a legacy installation, you might have had a UPC/EAN scanner and a separate QR/Data Matrix imager, or worse, staff manually keying codes for non-standard formats. This scanner handles that uniformity in a single compact footprint. On a 16-lane supermarket—that's 16 scanners you can standardize on spares, training, and troubleshooting. The vertical presentation form factor is also deceptively important; it positions the scanning window at natural counter height, reducing cashier reach and fatigue over an 8-hour shift.

Downsides are worth naming. First, this is a fixed counter scanner—it's not portable or mobile. If your workflow requires cashiers to walk the aisle with a handheld for price checks or inventory, you need a separate mobile device. Second, read range is limited compared to long-range industrial scanners; the M3410 is optimized for 15–25cm working distance, which is fine for checkout but inadequate for conveyor-line automation or overhead racking. Third, RS-232 integration on older POS terminals can require serial protocol configuration that not all retail staff are comfortable with; USB mode is plug-and-play, but legacy serial setups need IT involvement.

Technical Highlights:

• 2D Area Imager (1D/2D Symbologies): A single imaging engine replaces the need for separate 1D and 2D scan hardware. This reduces spare parts inventory, simplifies staff training, and guarantees that any barcode format entering your supply chain (UPC, EAN, Code 128/39, QR, Data Matrix, PDF417) will be readable at the register. No guesswork, no manual key entry, no second scanner.
• 940nm Invisible IR LED Illumination: Near-infrared light is invisible to human eyes but provides consistent barcode image contrast independent of ambient lighting conditions at the register. Reduces false reads in bright daylight or fluorescent checkout areas, and extends effective read distance on matte or low-contrast barcode labels.
• Dual Interface (USB + RS-232): USB keyboard-wedge mode works with zero configuration on modern POS terminals; RS-232 serial mode connects to legacy DOS or older Windows-based point-of-sale systems. This dual-interface design lets you deploy the same hardware across both new and legacy register lanes without separate SKUs or driver complications.
• Compact Vertical Mount (152 × 137 × 94 mm, 350g): Fits into tight counter-edge footprints that horizontal presentation scanners cannot occupy. Vertical positioning is ergonomically aligned with cashier line-of-sight, reducing reach and neck strain during repetitive barcode presentations.
• Standardized Magellan 3410VSi Platform: Configuration, spare parts, firmware, and support tools are identical across all M3410 variants. Multi-location retail deployments benefit from hardware uniformity—one spare-parts bin, one training curriculum, one support contact.

Deployment Considerations:

• Fixed Counter Installation: This scanner is designed for permanent mounting on a checkout counter or pedestal. It is not suitable for handheld use, mobile carts, or roving cashier stations. Plan your physical layout so product barcodes are presented to the scanner window, not vice versa.
• Cable Routing and Power: USB or RS-232 cables run from the scanner to the POS terminal. Plan routing to avoid trip hazards, especially in high-traffic checkout areas. If running cables near AC power lines or equipment, use shielded cable to prevent electrical noise interference on the serial line.
• Read Distance and Barcode Condition: Effective read range is approximately 15–25 cm depending on barcode density and contrast. Ensure your POS design brings the barcode into the scanner's focal zone naturally—don't expect staff to hold product 50 cm away. Also inspect supplier barcodes before deployment; torn, smudged, or low-contrast labels reduce read success and trigger manual entry fallback.
• RS-232 Protocol Configuration: If you're integrating into a legacy POS system via RS-232, verify baud rate, parity, and handshake settings with your terminal documentation. Standard settings are 9600 baud, no parity, 8 data bits; if your terminal differs, you'll need to configure the scanner's serial parameters using Datalogic tools or consult the vendor's integration guide.
• Supply Chain Barcode Validation: Before rolling out the scanner across your register lanes, audit your supplier barcode formats (UPC, EAN, QR, PDF417, Data Matrix). While the M3410 reads all standard symbologies, some legacy POS terminals may not parse certain barcode types—PDF417 in particular requires explicit terminal support. Test with real product samples from your current suppliers before full deployment.
• Spare Parts and Support Availability: Datalogic maintains consistent supply chains for the Magellan 3410 platform across North America. Confirm availability through your distributor before committing to multi-location rollouts; extended warranties and spare-scanner agreements are available for high-volume retail deployments.

The M3410-010200 is the right choice for retail environments where checkout speed, barcode universality, and counter-space efficiency are primary concerns—supermarket chains, full-service grocers, and specialty retailers with diverse supplier ecosystems. It's a mature, proven platform that simplifies POS integration and eliminates format fragmentation at the register. See our Datalogic catalog for related fixed and mobile scanning solutions.
