Speco Technologies AP500HA vs Speco Technologies APCR620L: Specification Comparison
The AP500HA and APCR620L are both Speco Technologies outdoor-rated proximity readers designed for access control panel integration via Wiegand output — making them genuine cross-shop candidates for installers selecting a credential reader. The AP500HA is a traditional 125kHz-only proximity reader, while the APCR620L is a dual-credential reader adding Bluetooth Low Energy mobile access and an integrated keypad. The comparison centers on credential flexibility, read range, and protocol support for access control deployments ranging from basic card-only sites to mobile-credential-ready installations.
In This Guide
- Which reader supports the credential types and read range your deployment requires?
- How do the output protocols and panel compatibility compare?
- What are the environmental ratings, power requirements, and physical installation differences?
- Which should you choose: the AP500HA or the APCR620L?
- Side-by-Side Specs
- FAQ
Which reader supports the credential types and read range your deployment requires?
The AP500HA reads 125kHz proximity cards and key fobs (HID and AWID format) only, with a specified read range of 8 inches. Output is Wiegand ABA Track II. No mobile credential or PIN entry capability is documented in the provided specs.

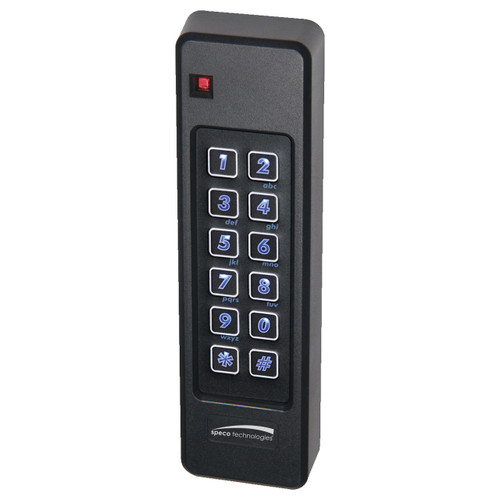

The APCR620L supports two credential modalities: 125kHz proximity cards at up to 4 inches, and Bluetooth Low Energy (BLE) mobile credentials at up to 15 feet. It also integrates a keypad for PIN entry. For proximity-card-only use, the AP500HA's 8-inch read range exceeds the APCR620L's 4-inch card range — a meaningful difference at turnstiles or tight-swing-door installations where card presentation geometry matters.
How do the output protocols and panel compatibility compare?
The AP500HA outputs Wiegand ABA Track II only. This is the dominant legacy protocol supported by nearly all access control panels, making it broadly compatible with existing infrastructure. No OSDP support is noted in the provided specs.
The APCR620L supports both Wiegand 26-bit and OSDP (Open Supervised Device Protocol). OSDP adds bidirectional, encrypted communication and tamper detection signaling between reader and panel — capabilities Wiegand cannot provide. The APCR620L's keypad output is documented as either Wiegand 9-bit or OSDP, selectable. The AP500HA's certifications include ETL and NDAA Section 889 Part B; NDAA compliance status for the APCR620L is not stated in the provided specs.
What are the environmental ratings, power requirements, and physical installation differences?
Both readers carry an IP67 weather-resistance rating and are specified for outdoor use. Operating temperature for the AP500HA is -40°F to 149°F; the APCR620L is rated -31°F to 150°F — a narrower cold-end range of 9°F compared to the AP500HA, which may matter in extreme-cold climates.
The AP500HA specifies 5–16 VDC input at 30mA draw at 12VDC — a narrow, known DC power envelope. The APCR620L lists 'AC/DC' as power supply type; no voltage range or current draw is provided in the specs, making power budget planning less precise at the specification stage. The AP500HA's ETL listing is confirmed; no equivalent electrical safety listing is noted for the APCR620L in the provided data. The APCR620L provides physical dimensions (1.78" W × 6.1" H × 0.91" D); AP500HA dimensions are not given as measurements in the provided specs.
Which should you choose: the AP500HA or the APCR620L?
Our take: The AP500HA is the stronger choice when the deployment is card-only, NDAA Section 889 Part B compliance is required, or the installation demands a tight cold-weather rating down to -40°F and a confirmed ETL listing with a fully specified DC power draw of 30mA at 12VDC. The APCR620L is the stronger choice when the site requires mobile Bluetooth credentials (up to 15 feet), PIN keypad entry, or OSDP encrypted panel communication — none of which the AP500HA provides. The key spec trade-offs: card read range favors the AP500HA (8 in. vs. 4 in.), mobile range is exclusive to the APCR620L (15 ft. BLE), and cold-temperature performance also favors the AP500HA (-40°F vs. -31°F). Installers on Wiegand-only legacy panels with card-only programs should select the AP500HA; those migrating to OSDP panels or deploying mobile credentials should select the APCR620L.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Speco Technologies AP500HA | Speco Technologies APCR620L |
|---|---|---|
| Credential Technology | 125kHz Proximity (HID/AWID) | 125kHz Proximity + Bluetooth LE (BLE) |
| Mobile Credential Support | — | Yes (BLE smartphones) |
| Integrated Keypad | — | Yes |
| Card Read Range | 8 inches | 4 inches |
| Mobile Read Range | — | 15 feet |
| Output Protocol | Wiegand ABA Track II | Wiegand 26-bit + OSDP |
| IP Rating | IP67 | IP67 |
| Operating Temperature | -40°F to 149°F | -31°F to 150°F |
| Power Input | 5–16 VDC | AC/DC (range not specified) |
| Current Draw | 30mA @ 12VDC | — |
| Audio Feedback | Beeper included | Beeper included |
| LED Feedback | Yes | Yes |
| NDAA Section 889 Compliant | Yes | Not stated in specs |
| ETL Listed | Yes | Not stated in specs |
| Warranty | 2-year | 2-year |
| Housing Color | White (black snap-on cover included) | White (black snap-on cover included) |
Frequently Asked Questions
Which should you choose: the AP500HA or the APCR620L?
The AP500HA is the stronger choice when the deployment is card-only, NDAA Section 889 Part B compliance is required, or the installation demands a tight cold-weather rating down to -40°F and a confirmed ETL listing with a fully specified DC power draw of 30mA at 12VDC. The APCR620L is the stronger choice when the site requires mobile Bluetooth credentials (up to 15 feet), PIN keypad entry, or OSDP encrypted panel communication — none of which the AP500HA provides. The key spec trade-offs: card read range favors the AP500HA (8 in. vs. 4 in.), mobile range is exclusive to the APCR620L (15 ft. BLE), and cold-temperature performance also favors the AP500HA (-40°F vs. -31°F). Installers on Wiegand-only legacy panels with card-only programs should select the AP500HA; those migrating to OSDP panels or deploying mobile credentials should select the APCR620L.
Can either reader work with my existing Wiegand access control panel?
Yes — both readers output Wiegand. The AP500HA outputs Wiegand ABA Track II; the APCR620L outputs Wiegand 26-bit (and also supports OSDP). Either will connect to a standard Wiegand panel, but verify your panel accepts the specific Wiegand bit-width (26-bit vs. Track II) before specifying.
Is the AP500HA or APCR620L better suited for a site that needs mobile phone-based access?
The APCR620L is the only option of the two that supports mobile credentials. It uses Bluetooth Low Energy (BLE) for smartphone-based access with a documented read range of up to 15 feet. The AP500HA has no documented mobile credential or BLE capability.
Does either reader carry NDAA Section 889 Part B compliance?
NDAA Section 889 Part B compliance is explicitly documented for the AP500HA. The provided specifications for the APCR620L do not state NDAA compliance status. For federal, defense, or government projects with NDAA requirements, verify APCR620L compliance directly with Speco Technologies before specifying.
