Socket Mobile CX4183-3250 vs Socket Mobile CX3530-2132: Specification Comparison

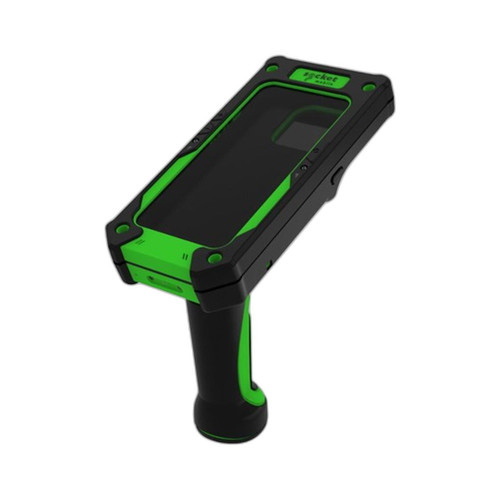

Both the CX4183-3250 and CX3530-2132 are handheld, Bluetooth barcode scanners from Socket Mobile aimed at mobile workforce deployments. The CX4183-3250 is built around the XtremeScanGrip XG930 form factor with an IP67 environmental rating, targeting field and industrial use on iOS. The CX3530-2132 is the SocketScan S740, a compact handheld with a 2000mAh battery and a scan engine capable of both 1D and 2D symbologies. This comparison covers scan capability, environmental and physical design, and platform compatibility to help buyers choose the right unit for their deployment.
In This Guide
Which scanner handles the barcodes your operation actually uses?
The CX4183-3250 is a strict 1D linear imager reading Code 128, Code 39, and UPC/EAN. No 2D symbologies — QR Code and Data Matrix are not supported. Deployments relying on 2D codes must verify format compatibility before committing to this unit.
The CX3530-2132 extends coverage to Code 128, Code 39, UPC, EAN, QR Code, and Data Matrix from a single scan engine. This means a single device can handle both legacy 1D barcodes on shelf labels and modern 2D codes on shipment manifests, mobile coupons, or parts bins without swapping hardware.
For operations running exclusively 1D linear barcodes, both units cover the core symbologies. Where QR Code or Data Matrix appear anywhere in the workflow, the CX3530-2132 is the only option between these two that meets that requirement.
Which unit is built for the harshest conditions on your site?
The CX4183-3250 carries a confirmed IP67 rating, meaning full protection against dust ingress and tolerance for temporary water immersion up to 1 meter. It is housed in the XtremeScanGrip XG930 form factor, a grip-style chassis designed for sustained handheld use in demanding environments. Operating temperature is specified at 0°C to 45°C.
The CX3530-2132 is listed with an 'Outdoor' environment rating and the same 0°C to 45°C operating temperature range. However, a discrete IP rating (such as IP54 or IP67) is not provided in the available specifications. Buyers requiring a verified ingress-protection standard should confirm with Socket Mobile before deploying this unit in wet or dusty conditions.
On battery, the CX3530-2132 specifies a 2000mAh pack capable of sustaining 8–12 hour shifts on typical duty cycles. Battery capacity is not specified for the CX4183-3250, so direct runtime comparisons cannot be made from available data.
Which scanner integrates with your existing mobile devices and OS environment?
The CX4183-3250 explicitly lists iOS (iPhone compatible) as its supported operating system, confirmed in the product specifications. Bluetooth is the sole connectivity method. Android compatibility is described in marketing context but is not listed as a confirmed spec field — iOS is the validated platform for this SKU.
The CX3530-2132 specifications do not list a specific supported operating system. Connectivity is Bluetooth. Buyers deploying on Android, Windows Mobile, or mixed-OS environments should verify platform support directly with Socket Mobile for the CX3530-2132.
Both units rely exclusively on Bluetooth wireless pairing; neither lists a wired USB or serial fallback in the provided specs. Both carry a 1-year warranty. No charging dock, charging cable, or additional accessory details are specified for either unit beyond the CX4183-3250 package note 'included with Scanner.'
Which should you choose: the CX4183-3250 or the CX3530-2132?
Our take: The CX4183-3250 is the stronger choice when iOS compatibility and a certified IP67 ingress-protection rating are non-negotiable requirements for field or light-industrial deployment. It delivers a verified IP67 dust-and-water seal and explicit iPhone compatibility that the CX3530-2132 cannot match on available specs — the S740 lists only a general 'Outdoor' rating with no discrete IP designation, and its OS support is unspecified. However, the CX3530-2132 is the only option between these two that reads QR Code and Data Matrix in addition to 1D symbologies, making it the necessary pick wherever 2D barcodes appear in the workflow. The CX3530-2132 also specifies a 2000mAh battery sustaining 8–12 hour shifts; no runtime figure exists for the CX4183-3250. Choose the CX4183-3250 for rugged, iOS-driven, 1D-only environments. Choose the CX3530-2132 where 2D scan capability or multi-shift battery endurance is the priority.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Socket Mobile CX4183-3250 | Socket Mobile CX3530-2132 |
|---|---|---|
| Product Line | XtremeScanGrip XG930 | SocketScan S740 |
| SKU | CX4183-3250 | CX3530-2132 |
| Form Factor | XtremeScanGrip Handheld | Handheld |
| Connectivity | Bluetooth | Bluetooth |
| Scan Engine | 1D Linear Imager | 1D (with 2D capability) |
| 1D Symbologies | Code 128, Code 39, UPC/EAN | Code 128, Code 39, UPC, EAN |
| 2D Symbologies | — | QR Code, Data Matrix |
| IP / Environmental Rating | IP67 | Outdoor (no IP rating specified) |
| Operating Temperature | 0°C to 45°C | 0°C to 45°C |
| Battery Capacity | — | 2000mAh |
| Estimated Battery Life | — | 8–12 hours (typical duty cycle) |
| OS Compatibility | iOS (iPhone) | Not specified |
| Scanner Type | Handheld | Handheld |
| Warranty | 1-year | 1-year |
| Datasheet Available | — | Yes (/content/product-datasheets/CX3530-2132.pdf) |
| Package Contents | Included with Scanner | — |
Frequently Asked Questions
Which should you choose: the CX4183-3250 or the CX3530-2132?
The CX4183-3250 is the stronger choice when iOS compatibility and a certified IP67 ingress-protection rating are non-negotiable requirements for field or light-industrial deployment. It delivers a verified IP67 dust-and-water seal and explicit iPhone compatibility that the CX3530-2132 cannot match on available specs — the S740 lists only a general 'Outdoor' rating with no discrete IP designation, and its OS support is unspecified. However, the CX3530-2132 is the only option between these two that reads QR Code and Data Matrix in addition to 1D symbologies, making it the necessary pick wherever 2D barcodes appear in the workflow. The CX3530-2132 also specifies a 2000mAh battery sustaining 8–12 hour shifts; no runtime figure exists for the CX4183-3250. Choose the CX4183-3250 for rugged, iOS-driven, 1D-only environments. Choose the CX3530-2132 where 2D scan capability or multi-shift battery endurance is the priority.
Can either scanner read QR codes or 2D barcodes?
Only the CX3530-2132 (SocketScan S740) supports 2D symbologies — specifically QR Code and Data Matrix, per its specifications. The CX4183-3250 is a 1D-only linear imager covering Code 128, Code 39, and UPC/EAN. If your workflow includes any 2D codes, the CX4183-3250 is not suitable.
Which unit is more ruggedized for warehouse or outdoor use?
The CX4183-3250 holds a confirmed IP67 rating, meaning it is fully dust-tight and can withstand temporary water immersion. The CX3530-2132 is listed as 'Outdoor' rated, but no specific IP rating is provided in the available specifications. For deployments where an IEC-standard ingress-protection certification is required, the CX4183-3250 is the verifiable choice.
How long will each scanner last on a single charge during a full shift?
The CX3530-2132 specifies a 2000mAh battery with an estimated 8–12 hour runtime on typical duty cycles. Battery capacity and runtime are not specified for the CX4183-3250 in the available data. Buyers requiring guaranteed multi-shift endurance should confirm CX4183-3250 battery specs directly with Socket Mobile before purchasing.
