Socket Mobile CX3426-1872 vs Honeywell 1962H-WC-CUP: Specification Comparison
Both the Socket Mobile CX3426-1872 and the Honeywell 1962H-WC-CUP are cordless 2D handheld barcode scanners intended for mobile warehouse, retail, and general-purpose data-capture deployments. Each uses a wireless imager engine capable of reading both 1D and 2D symbologies over Bluetooth, placing them squarely in the same purchasing category. The comparison that follows evaluates scan capability and symbology breadth, environmental and physical durability, and connectivity plus warranty coverage — the three axes that most directly determine fit for a given deployment.
In This Guide
- Which scanner offers broader symbology coverage and a more capable scan engine?
- Which unit is better suited to demanding physical environments?
- How do the two scanners compare on wireless connectivity version and warranty coverage?
- Which should you choose: the CX3426-1872 or the 1962H-WC-CUP?
- Side-by-Side Specs
- FAQ
Which scanner offers broader symbology coverage and a more capable scan engine?

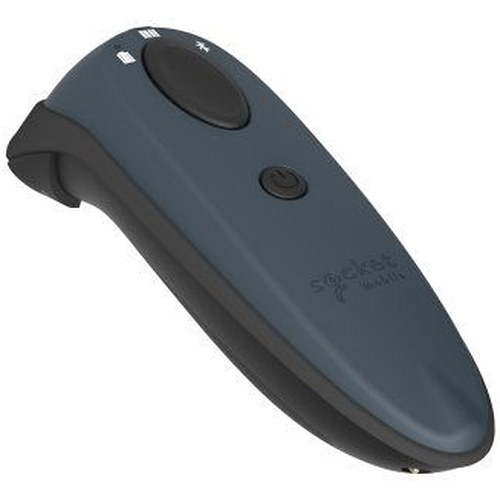

The Socket Mobile CX3426-1872 is specified with a 2D Linear Imager engine and supports five named symbologies: QR Code, Data Matrix, PDF417, Code 128, and Code 39. The product listing labels the scan engine type as '1D' in one field but '2D Linear Imager' in another, creating an internal inconsistency in the provided spec data; the marketed name and the tilde-prefixed fields consistently call it a 2D Linear Imager, so that is used here. No UPC/EAN or Aztec capability is listed.
The Honeywell 1962H-WC-CUP uses an Area Imager engine rated for both 1D and 2D barcodes and lists seven symbologies: UPC, Code 128, Code 39, QR Code, Data Matrix, PDF417, and Aztec. The Area Imager architecture generally enables omnidirectional reading, which reduces the need to align the scan beam precisely with the barcode. The Honeywell unit additionally specifies a working range of 2.5 to 50.8 cm (1 to 20 inches); no working-range figure is provided for the CX3426-1872.
For operations requiring UPC/EAN retail barcode scanning or Aztec code reading, only the Honeywell unit covers those symbologies per the provided specs. For operations limited to QR, Data Matrix, PDF417, Code 128, and Code 39, both scanners declare equivalent symbology support.
Which unit is better suited to demanding physical environments?
The Socket Mobile CX3426-1872 carries an operating temperature rating of 0°C to 45°C (32°F to 113°F). No IP ingress-protection rating and no drop-resistance rating are provided in the supplied specifications for this model.
The Honeywell 1962H-WC-CUP is rated IP65, meaning it is fully dust-tight and protected against water jets from any direction per the IEC 60529 standard. It additionally carries a 2.0 m (6.5 ft) drop rating. Its operating temperature range is not listed in the provided specifications.
For dock environments, outdoor loading areas, or any site where the scanner may be exposed to dust, splashing water, or accidental drops, the Honeywell unit provides two quantified, named durability certifications that the Socket Mobile unit does not. Buyers requiring rugged-rated hardware should weight this dimension accordingly; neither unit's cold-storage or high-temperature limit can be fully compared because one operating-temperature spec is absent.
How do the two scanners compare on wireless connectivity version and warranty coverage?
The Socket Mobile CX3426-1872 is listed as Bluetooth wireless; the specific Bluetooth version is not stated in the provided specifications. The warranty is 1 year.
The Honeywell 1962H-WC-CUP specifies Bluetooth 4.2 explicitly, which supports Bluetooth Low Energy (BLE) profiles relevant to modern host pairing. The specifications also reference USB connectivity as a secondary connection method. The warranty is 3 years.
The Honeywell unit provides a concrete Bluetooth version number, allowing IT teams to verify compatibility with host hardware and operating-system Bluetooth stacks. The Socket Mobile unit's Bluetooth version is unspecified, which may require a separate datasheet lookup before procurement. On warranty term, the Honeywell unit covers three times the duration of the Socket Mobile unit, a meaningful total-cost-of-ownership factor over a typical deployment lifecycle.
Which should you choose: the CX3426-1872 or the 1962H-WC-CUP?
Our take: The 1962H-WC-CUP is the stronger choice when physical durability, broader symbology support, and longer warranty coverage are deployment priorities. Concretely: the Honeywell unit carries an IP65 rating and a 2.0 m drop rating versus no stated IP or drop rating for the CX3426-1872; it supports seven symbologies including UPC and Aztec versus five for the Socket Mobile unit; and its warranty is 3 years versus 1 year. The Honeywell unit also specifies Bluetooth 4.2 while the Socket Mobile unit's Bluetooth version is undisclosed. The CX3426-1872 may suit controlled-environment retail or light warehouse deployments where UPC scanning is not required and the lower price point of a 1-year-warranty device is acceptable, but the specs as provided do not establish a clear technical advantage for it over the Honeywell. Buyers should verify the Socket Mobile Bluetooth version independently before pairing with enterprise infrastructure.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Socket Mobile CX3426-1872 | Honeywell 1962H-WC-CUP |
|---|---|---|
| Product Series | CX3426-1872 | Xenon XP 1952g |
| Form Factor | Handheld | Handheld |
| Scan Engine | 2D Linear Imager | Area Imager (1D/2D) |
| Connectivity | Bluetooth (version not specified) | Bluetooth 4.2 + USB |
| Symbologies — 1D | Code 128, Code 39 | UPC, Code 128, Code 39 |
| Symbologies — 2D | QR Code, Data Matrix, PDF417 | QR Code, Data Matrix, PDF417, Aztec |
| Total Named Symbologies | 5 | 7 |
| Working Range | — | 2.5 to 50.8 cm (1 to 20 in) |
| IP Rating | — | IP65 |
| Drop Rating | — | 2.0 m (6.5 ft) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | — |
| Application | Mobile warehouse, POS | General purpose |
| Warranty | 1 year | 3 years |
| PoE Class | — | 2 |
Frequently Asked Questions
Which should you choose: the CX3426-1872 or the 1962H-WC-CUP?
The 1962H-WC-CUP is the stronger choice when physical durability, broader symbology support, and longer warranty coverage are deployment priorities. Concretely: the Honeywell unit carries an IP65 rating and a 2.0 m drop rating versus no stated IP or drop rating for the CX3426-1872; it supports seven symbologies including UPC and Aztec versus five for the Socket Mobile unit; and its warranty is 3 years versus 1 year. The Honeywell unit also specifies Bluetooth 4.2 while the Socket Mobile unit's Bluetooth version is undisclosed. The CX3426-1872 may suit controlled-environment retail or light warehouse deployments where UPC scanning is not required and the lower price point of a 1-year-warranty device is acceptable, but the specs as provided do not establish a clear technical advantage for it over the Honeywell. Buyers should verify the Socket Mobile Bluetooth version independently before pairing with enterprise infrastructure.
Can either scanner read standard retail UPC barcodes found on consumer packaged goods?
Based on the provided specifications, only the Honeywell 1962H-WC-CUP lists UPC as a supported symbology. UPC is not listed among the five symbologies specified for the Socket Mobile CX3426-1872. Buyers with retail UPC scanning requirements should confirm Socket Mobile's full symbology list on the product datasheet before purchasing.
Which scanner is safer to use on a loading dock or in a wet area?
The Honeywell 1962H-WC-CUP is rated IP65 (dust-tight, protected against water jets) and carries a 2.0 m drop rating per the provided specifications. The Socket Mobile CX3426-1872 has no IP rating or drop rating listed in the provided specifications, making the Honeywell the only unit with documented protection for wet or rough-handling environments.
Is the Socket Mobile CX3426-1872 or the Honeywell 1962H-WC-CUP a better fit for a multi-year enterprise rollout?
For a multi-year enterprise rollout, the Honeywell 1962H-WC-CUP's 3-year warranty, explicit Bluetooth 4.2 version, and IP65/2 m drop certifications provide greater long-term assurance per the provided specifications. The Socket Mobile CX3426-1872 carries a 1-year warranty and does not disclose a Bluetooth version, both of which may increase support and compatibility-verification burden over a longer deployment horizon.
