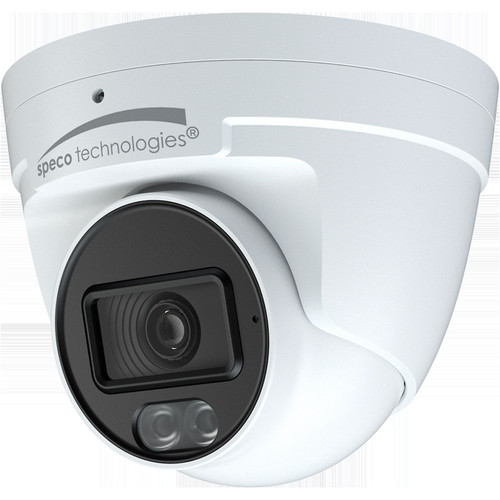

Digital Watchdog DWC-VSTB04Bi vs Speco Technologies O4KT1: Specification Comparison
Both the Digital Watchdog DWC-VSTB04Bi and the Speco Technologies O4KT1 are 4MP fixed-lens turret IP cameras sharing a 2560×1440 resolution, 2.8mm fixed focal length, and 802.3af PoE power delivery. They occupy the same segment of the market—outdoor-rated, IR-illuminated turrets targeted at installers needing compact, cost-effective surveillance nodes—making them direct cross-shop candidates. This comparison evaluates their imaging performance, physical installation requirements, and integration capabilities based strictly on published specifications.
In This Guide
How do the imaging specs compare?
Both cameras use a 1/3" CMOS sensor at 4MP (2560×1440) with a 2.8mm fixed lens. The DWC-VSTB04Bi specifies a 94° horizontal field of view and a maximum shutter speed of 1/100,000s, with Smart DNR 3D digital noise reduction, and an explicitly rated True WDR of 120dB. The O4KT1 lists WDR as a feature but does not specify a dB rating in the provided specifications. For minimum illumination, the DWC-VSTB04Bi reaches 0.0 lux in B/W mode and 0.005 lux in color; the O4KT1 specifies 0.005 lux at F1.6 with AGC on and 0 lux with IR active—effectively comparable in IR-on conditions.
IR range gives a slight edge to the DWC-VSTB04Bi at 100 feet (approximately 30m) via Smart IR, versus the O4KT1's 98 feet. Frame rate is a meaningful differentiator: the DWC-VSTB04Bi supports up to 30fps at all listed resolutions, while the O4KT1's maximum is specified at 20fps. The DWC-VSTB04Bi also adds MJPEG as a third compression codec alongside H.264 and H.265; the O4KT1's provided specs list only H.265 and H.264.
What about installation and environment?
Both cameras carry an IP67 ingress protection rating. The DWC-VSTB04Bi adds an IK10 vandal impact rating and specifies an aluminum die-cast housing, providing a documented resistance to mechanical impact that the O4KT1's provided specifications do not address—no IK rating is listed for the O4KT1. The DWC-VSTB04Bi has a published operating temperature range of -22°F to 140°F (-30°C to 60°C); no operating temperature range is provided in the O4KT1's specifications.
Both cameras are powered by 802.3af PoE with no included power supply; the O4KT1 additionally lists 12VDC as an input option. The DWC-VSTB04Bi's maximum draw is specified at 5W. The O4KT1 lists wall, ceiling, pole, and corner as supported mount types; the DWC-VSTB04Bi notes mounting accessories are optional and sold separately without listing specific mount types. The O4KT1 also lists PTZ adjustment ranges (pan 0°–360°, tilt 0°–75°, rotation 0°–360°), which reflect physical positioning during installation rather than motorized PTZ operation.
Which fits your VMS and analytics better?
Both cameras are ONVIF-conformant and support RTSP and HTTPS. The DWC-VSTB04Bi is explicitly certified for DW Spectrum IPVMS in addition to any ONVIF-compliant CMS, and supports IPv4 and IPv6, a broader protocol list (802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP), dual-stream at different rates and resolutions, and a video bitrate range of 64Kbps to 8Mbps. The O4KT1 confirms ONVIF, RTSP, and HTTPS but does not enumerate a comparable protocol list in provided specifications. The O4KT1 is NDAA-compliant and FCC-certified; no equivalent certifications are listed for the DWC-VSTB04Bi in the provided specifications.
For edge analytics, the DWC-VSTB04Bi specifies Line Crossing, Perimeter Intrusion, and Tampering Detection. The O4KT1 does not list any edge analytics in its provided specifications. On-board storage: the DWC-VSTB04Bi supports microSD/SDHC/SDXC up to 1TB; the O4KT1 supports microSD up to 256GB. Both cameras include a built-in microphone and audio input; the DWC-VSTB04Bi additionally specifies one audio output and G.711A/U compression, and supports 8 programmable privacy masks. Operational notifications (email, FTP) are listed for the DWC-VSTB04Bi; this is not addressed in the O4KT1's provided specifications.
Which should you choose: the DWC-VSTB04Bi or the O4KT1?
Our take: The DWC-VSTB04Bi is the stronger choice when edge analytics, higher frame rates, broader storage capacity, and a documented vandal rating are decision factors. It delivers 30fps versus the O4KT1's 20fps—a 50% throughput advantage relevant to fast-motion scenes—supports microSD up to 1TB versus 256GB, and carries a specified IK10 impact rating and aluminum die-cast housing that the O4KT1's provided specs do not match. Its 120dB True WDR rating is explicitly quantified, while the O4KT1's WDR value is unspecified. The DWC-VSTB04Bi also includes built-in edge analytics (Line Crossing, Perimeter Intrusion, Tampering Detection) absent from the O4KT1's spec sheet. Conversely, the O4KT1 holds NDAA compliance—a hard procurement requirement for U.S. federal and many state/local government projects—which is not documented for the DWC-VSTB04Bi. Where NDAA compliance is mandatory, the O4KT1 becomes the qualifying choice regardless of other spec differences.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Digital Watchdog DWC-VSTB04Bi | Speco Technologies O4KT1 |
|---|---|---|
| Resolution | 4MP (2560 × 1440) | 4MP (2560 × 1440) |
| Image Sensor | 1/3" CMOS | 1/3" CMOS |
| Lens / Focal Length | 2.8mm fixed | 2.8mm fixed |
| Horizontal FOV | 94° | — |
| Min Illumination | 0.0 lux (B/W) / 0.005 lux (color) | 0.005 lux @ F1.6 AGC on / 0 lux (IR on) |
| IR Range | 100 ft (30 m) | 98 ft |
| Wide Dynamic Range | True WDR 120dB | WDR (dB not specified) |
| Max Frame Rate | 30 fps at all resolutions | 20 fps |
| Video Compression | H.264, H.265, MJPEG | H.265, H.264 |
| IP Rating | IP67 | IP67 |
| IK / Impact Rating | IK10 | — |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) | — |
| Power Input / PoE Class | 802.3af PoE, max 5W | 802.3af PoE; 12VDC |
| Edge Storage | microSD/SDHC/SDXC up to 1TB | microSD up to 256GB |
| Audio | 1 in / 1 out / built-in mic; G.711A/U | Audio input; built-in mic |
| Edge Analytics | Line Crossing, Perimeter Intrusion, Tampering Detection | — |
| NDAA Compliance | — | Yes |
| Warranty | 5 years | 5 years |
Frequently Asked Questions
Which should you choose: the DWC-VSTB04Bi or the O4KT1?
The DWC-VSTB04Bi is the stronger choice when edge analytics, higher frame rates, broader storage capacity, and a documented vandal rating are decision factors. It delivers 30fps versus the O4KT1's 20fps—a 50% throughput advantage relevant to fast-motion scenes—supports microSD up to 1TB versus 256GB, and carries a specified IK10 impact rating and aluminum die-cast housing that the O4KT1's provided specs do not match. Its 120dB True WDR rating is explicitly quantified, while the O4KT1's WDR value is unspecified. The DWC-VSTB04Bi also includes built-in edge analytics (Line Crossing, Perimeter Intrusion, Tampering Detection) absent from the O4KT1's spec sheet. Conversely, the O4KT1 holds NDAA compliance—a hard procurement requirement for U.S. federal and many state/local government projects—which is not documented for the DWC-VSTB04Bi. Where NDAA compliance is mandatory, the O4KT1 becomes the qualifying choice regardless of other spec differences.
Is the DWC-VSTB04Bi or O4KT1 better for low-light performance?
In IR-on conditions both cameras reach 0 lux, making them functionally equivalent at the darkness floor. In color/ambient-light mode the DWC-VSTB04Bi specifies 0.005 lux; the O4KT1 also specifies 0.005 lux at F1.6 with AGC on. The DWC-VSTB04Bi's explicitly rated 120dB True WDR gives it a documented advantage in high-contrast mixed-light scenes where WDR strength matters, as the O4KT1's WDR level is not quantified in its provided specifications.
Does either camera require NDAA compliance for a government project?
Yes, if your project has a federal or NDAA-related procurement requirement. The O4KT1 is listed as NDAA-compliant in its provided specifications. No NDAA compliance certification is stated for the DWC-VSTB04Bi in its provided specifications, so for those projects the O4KT1 is the compliant option based on available data.
Can either camera record locally without a NVR?
Both support on-board microSD storage. The DWC-VSTB04Bi accepts microSD/SDHC/SDXC cards up to 1TB, while the O4KT1 supports microSD up to 256GB. For extended edge-recording retention without a network recorder, the DWC-VSTB04Bi's higher storage ceiling is the practical advantage.
