Datalogic 957011001-00053 vs Datalogic 9810101120-04253: Specification Comparison
Both the Datalogic Magellan 9550i (SKU 957011001-00053) and the Datalogic Magellan 9800i (SKU 9810101120-04253) are bi-optic fixed retail scanner units from Datalogic's Magellan family, designed for countertop POS checkout environments. They share the same fundamental form factor and function—digital imaging bi-optic scanners targeting high-volume retail—making them directly cross-shoppable. The comparison below examines their scan capabilities, physical footprint and build, and interface/connectivity options to help integrators and IT buyers select the right unit for their deployment.
In This Guide
- Which scanner offers broader barcode reading capabilities for retail checkout?
- How do the two scanners compare in size and weight for counter installation planning?
- Which unit offers better POS interface compatibility for mixed legacy and modern environments?
- Which should you choose: the 957011001-00053 or the 9810101120-04253?
- Side-by-Side Specs
- FAQ
Which scanner offers broader barcode reading capabilities for retail checkout?
The Magellan 9550i specifies a 2D digital imaging engine with explicit GS1 2D Digital Link support, covering UPC, EAN, QR Code, Data Matrix, and PDF417 symbologies. Its scan type is described as 'Digital Imaging Bi-Optic with GS1 2D Digital Link,' indicating readiness for next-generation GS1 Digital Link barcodes increasingly adopted in retail.

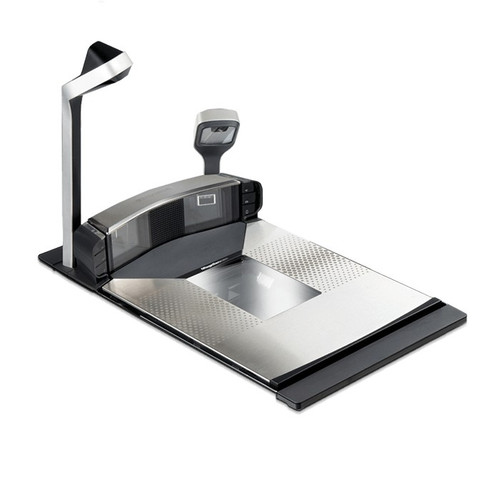

The Magellan 9800i is described as a 'Digital Imaging Bi-Optic' with '1D/2D omni-directional' barcode capability. Day/Night vision is explicitly listed as a supported feature (Yes), which the 9550i specs do not mention. However, the 9800i's specs do not enumerate specific symbologies or call out GS1 2D Digital Link support.
For deployments requiring confirmed GS1 Digital Link readiness or specific 2D symbology coverage, the 9550i's specs provide that assurance. For deployments where day/night ambient lighting variability is a concern at the checkout lane, the 9800i's explicitly listed Day/Night capability is a differentiator not documented for the 9550i.
How do the two scanners compare in size and weight for counter installation planning?
The Magellan 9550i measures 305 x 216 x 406 mm (12 x 8.5 x 16 in) and weighs 6.4 kg (14.1 lbs). Its specs note drop, thermal shock, and electrical surge testing, and reference multiple platter and configuration mounting options.
The Magellan 9800i is slightly larger at 312 x 221 x 419 mm (12.3 x 8.7 x 16.5 in) and heavier at 6.8 kg (15.0 lbs). No equivalent durability test certifications or mounting configuration details are listed in the provided 9800i specs.
The dimensional difference is modest—7 mm wider, 5 mm deeper, 13 mm taller—but relevant where checkout counter cutouts or lane widths are tightly constrained. The 9550i's 0.4 kg weight advantage and documented durability testing may favor installations where ruggedization assurance is required, while the 9800i's footprint difference should be verified against counter templates before installation.
Which unit offers better POS interface compatibility for mixed legacy and modern environments?
The Magellan 9550i supports USB and RS-232 interfaces. This dual-interface configuration covers modern USB POS terminals and legacy RS-232 serial connections commonly found in older retail infrastructure.
The Magellan 9800i supports USB, RS-232, and IBM interfaces. The addition of an IBM interface extends compatibility to IBM SurePOS and compatible legacy systems, which remain in service at a number of grocery and big-box retail environments.
For environments running IBM POS hardware or IBM-protocol peripherals, the 9800i is the only option between the two with a documented IBM interface. Environments standardized on USB or RS-232 are served by both units. The 9550i specs also note an optional in-bonnet USB color camera, which the 9800i specs do not reference, adding a secondary value capture capability for retailers who want integrated imaging without a separate peripheral.
Which should you choose: the 957011001-00053 or the 9810101120-04253?
Our take: The 957011001-00053 (Magellan 9550i) is the stronger choice when confirmed GS1 2D Digital Link readiness, documented durability testing, or an optional integrated camera are priorities. The 9550i is 7–13 mm smaller across all dimensions, 0.4 kg lighter, and explicitly documents drop, thermal shock, and electrical surge testing—none of which appear in the 9800i's provided specs. It also offers an optional in-bonnet USB color camera, a feature not listed for the 9800i. However, the 9810101120-04253 (Magellan 9800i) is the stronger choice for IBM POS environments: it is the only unit of the two with a documented IBM interface, and it explicitly lists Day/Night vision capability not mentioned in the 9550i specs. Buyers on IBM-based checkout infrastructure, or in stores with significant ambient lighting variation, should select the 9800i; all others will generally find the 9550i's documented feature set sufficient.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Datalogic 957011001-00053 | Datalogic 9810101120-04253 |
|---|---|---|
| Series / Family | Magellan 9550i | Magellan 9800i |
| Product Type | Bi-Optic Fixed Retail Scanner | Bi-Optic Fixed Retail Scanner |
| Scan Type | Digital Imaging Bi-Optic with GS1 2D Digital Link | Digital Imaging Bi-Optic |
| Scan Engine | 2D Imager | — |
| Barcode Capability | 1D and 2D | 1D/2D Omni-Directional |
| Symbologies 1D | UPC; EAN | — |
| Symbologies 2D | QR Code; Data Matrix; PDF417 | — |
| GS1 2D Digital Link Support | Yes | — |
| Day/Night Vision | — | Yes |
| Interfaces | USB; RS-232 | USB; RS-232; IBM |
| Dimensions (mm) | 305 x 216 x 406 | 312 x 221 x 419 |
| Dimensions (in) | 12 x 8.5 x 16 | 12.3 x 8.7 x 16.5 |
| Weight | 6.4 kg (14.1 lbs) | 6.8 kg (15.0 lbs) |
| Optional Camera | In-bonnet USB color camera | — |
| Durability Testing | Drop; thermal shock; electrical surge tested | — |
| Warranty | 1-Year Standard Factory Warranty | 1-Year Limited |
Frequently Asked Questions
Which should you choose: the 957011001-00053 or the 9810101120-04253?
The 957011001-00053 (Magellan 9550i) is the stronger choice when confirmed GS1 2D Digital Link readiness, documented durability testing, or an optional integrated camera are priorities. The 9550i is 7–13 mm smaller across all dimensions, 0.4 kg lighter, and explicitly documents drop, thermal shock, and electrical surge testing—none of which appear in the 9800i's provided specs. It also offers an optional in-bonnet USB color camera, a feature not listed for the 9800i. However, the 9810101120-04253 (Magellan 9800i) is the stronger choice for IBM POS environments: it is the only unit of the two with a documented IBM interface, and it explicitly lists Day/Night vision capability not mentioned in the 9550i specs. Buyers on IBM-based checkout infrastructure, or in stores with significant ambient lighting variation, should select the 9800i; all others will generally find the 9550i's documented feature set sufficient.
Is the 957011001-00053 or 9810101120-04253 compatible with IBM POS systems?
Based on the provided specs, only the 9810101120-04253 (Magellan 9800i) lists an IBM interface. The 957011001-00053 (Magellan 9550i) specifies USB and RS-232 only. If your POS infrastructure uses IBM-protocol connectivity, the 9800i is the documented choice.
Do both scanners read QR codes and 2D barcodes?
The 957011001-00053 (Magellan 9550i) explicitly lists QR Code, Data Matrix, and PDF417 among its supported symbologies and calls out GS1 2D Digital Link support. The 9810101120-04253 (Magellan 9800i) is described as supporting 1D/2D omni-directional reading, but its provided specs do not enumerate specific 2D symbologies or reference GS1 Digital Link. Confirm 9800i symbology details with Datalogic documentation before deploying in a GS1 Digital Link environment.
Which scanner is physically smaller for tight checkout counter installations?
The 957011001-00053 (Magellan 9550i) is slightly more compact at 305 x 216 x 406 mm and 6.4 kg, versus the 9810101120-04253 (Magellan 9800i) at 312 x 221 x 419 mm and 6.8 kg. The differences are modest—up to 13 mm in any single dimension—but should be verified against your counter cutout specifications before ordering either unit.
