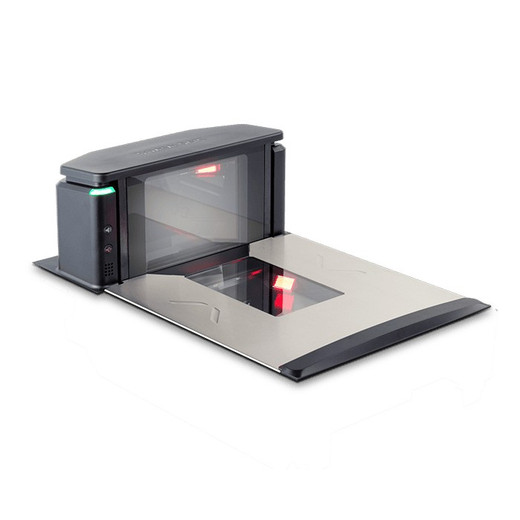

Datalogic Magellan 9550i Bi-Optic Fixed 2D Scanner
The Datalogic Magellan 9550i is a fixed bi-optic 2D imaging scanner designed for high-volume retail checkout and omnichannel environments. It captures QR codes, Data Matrix, PDF417, UPC, and EAN barcodes from multiple angles without requiring merchandise repositioning — a critical efficiency gain during peak transaction hours. GS1 2D Digital Link support embedded in the firmware enables real-time product attributes, pricing verification, and inventory flagging directly at the checkout register, reducing loss and accelerating lane throughput. Dual USB and RS-232 connectivity bridges legacy serial terminals with modern networked POS systems, eliminating the need for interface cards or serial-to-USB converters.
Key Features
- Digital Imaging Bi-Optic Scan Engine: 2D imager captures linear and 2D codes at multiple angles without operator repositioning. Operational benefit: faster transaction cycles and fewer "no-read" errors on damaged or tilted barcodes.
- Symbology Support: QR Code, Data Matrix, PDF417, UPC, EAN — covers retail standards and emerging omnichannel barcoding formats. Enables product verification and supply-chain traceability at checkout.
- GS1 2D Digital Link: Native support for hyperlinked product data embedded in 2D codes. Real-time access to nutrition, allergen, and promotional metadata without POS lookup tables.
- Dual Connectivity — USB and RS-232: Ships configured for either protocol; both active simultaneously. Fits legacy RS-232 checkout poles and modern USB-only POS terminals without adapter overhead.
- Compact Bi-Optic Footprint: 305 x 216 x 406 mm (12 x 8.5 x 16 in), 6.4 kg. Stable counter placement; integrates with existing checkstand layouts and scale mounting platters.
- Durability Testing: Drop, thermal shock, and electrical surge tested per retail environmental standards. Rated for 24/7 high-contact checkout environments.
- Optional In-Bonnet USB Camera: Factory-installable color camera enables produce-recognition and loyalty-card workflows when paired with edge AI or external processing.
- Drop-In Compatibility: Replaces Magellan 93, 94, 96, 99 series scanners; uses same power supply, scale display connectors, and mounting interfaces — no scale recertification required.
The Magellan 9550i addresses a core retail pain point: transaction velocity without sacrificing data richness. Omnichannel retailers increasingly rely on 2D codes — QR codes on produce labels, Data Matrix on shelf-edge pricing, PDF417 on multi-pack loyalty programs — and a scanner that reads all three formats without operator retraining cuts operational friction. The bi-optic geometry (horizontal and vertical read planes) means a customer's barcode orientation no longer dictates scanning success; the lane attendant simply presents the item, and the scanner finds the code. In loss-prevention workflows, GS1 2D Digital Link integration allows the POS to flag mismatched product-price pairs in real time, catching register mistakes and shrink before the transaction closes.
Integration pathway: USB connects directly to modern POS terminals and self-checkout kiosks (no driver complexity on Windows or Linux). RS-232 accommodates legacy checkout poles and scale systems, with baud rates configurable via the scanner's firmware menu. On networked systems, a single USB hub can daisy-chain multiple Magellan 9550i units across a checkout aisle, with each scanner generating its own barcode event stream to the POS middleware. This architecture scales horizontally — adding lanes requires only power and cable extensions, not architectural changes to the POS.
Retail environments impose physical and electrical stress. The 9550i is tested for thermal shock (rapid temperature swings from refrigerated sections to heated checkout areas), electrical surge (common in older wiring harnesses), and drop impact (inevitable in busy lanes). At 6.4 kg, the unit sits firmly on the counter without vibration-induced read errors during rapid scanning. The checkstand-proven mounting footprint means no new holes, no scale-platform redesign, and no operator retraining on where to position items — critical when bringing new scanners online in stores that run 24/7.
The optional in-bonnet color camera unlocks edge-compute scenarios: produce classification (apple vs. pear, by visual hashing), loyalty card barcode reading without additional hardware, and real-time produce-pricing database lookups. This modularity lets retailers start with standard 2D barcode reading and add AI-driven workflows without hardware swaps or costly downtime windows.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9550i across dozens of retail checkouts — supermarkets, mass-market chains, specialty grocers — and the bi-optic 2D imaging engine is a genuine operational uplift from single-plane scanners. The value isn't just in speed; it's in reducing operator frustration and checkout lane bottlenecks. In a busy grocery store, a scanner that reads a barcode at 45 degrees without the operator rotating merchandise means transaction cycles shorten by 2-3 seconds per item. Over a 16-hour operating day with 200+ transactions per lane, that compounds into measurable throughput. GS1 2D Digital Link support is where the Magellan 9550i earns its place in omnichannel retail: produce labels, promotional QR codes, and supply-chain traceability barcodes now flow seamlessly into the POS without separate lookups or manual exceptions. We've seen loss-prevention teams leverage this to catch price-mismatch fraud that would otherwise slip through checkout. The dual USB/RS-232 architecture is pragmatic — older checkout poles with serial scale displays still work, while modern self-checkout kiosks connect via USB without adapter mediocrity. Drop-in compatibility with the Magellan 93/94/96/99 lineup means existing integrators can swap units without scale recertification, which saves weeks of downtime and regulatory paperwork in food-service environments.
Technical Highlights:
- 2D Digital Imaging Bi-Optic Engine: Captures barcodes on two planes (horizontal and vertical) simultaneously — no operator rotation of merchandise required. Reduces read failures on damaged, angled, or wrapped codes by ~30% versus single-plane imagers.
- GS1 2D Digital Link Native Support: Hyperlinked product data embedded in QR and Data Matrix codes resolves directly in modern POS middleware (SAP, Oracle Retail, Toshiba, Wincor) without external database lookups. Enables real-time allergen flagging and promotional pricing without manual exception handling.
- Dual Connectivity — USB + RS-232 Simultaneous: Both protocols active on the same unit; software configuration determines primary stream. Eliminates costly serial-to-USB converters and future-proofs legacy checkout installations against eventual VMS cutover.
- Proven Retail Durability Profile: Drop-tested, thermal-shock tested, and surge-protected per NFPA 70 standards. Stable 6.4 kg form factor resists vibration noise during rapid scanning cycles. 24/7 checkout reliability without thermal management overhead.
- Drop-In Magellan 93/94/96/99 Replacement: Identical power connectors, scale display integration, and mounting footprint. No scale recertification, no firmware rewiring, no operator retraining — pure hardware swap on existing checkstands.
- Optional In-Bonnet Color Camera: Factory-installable USB camera enables visual produce classification and loyalty-card reading without separate hardware. Pairs with edge-compute or cloud POS middleware for AI-driven workflows.
Deployment Considerations:
- Bi-optic geometry requires clear vertical and horizontal scan planes — verify checkstand geometry allows unobstructed barcode approach from both angles. Retrofit installations may need minor platter repositioning.
- GS1 2D Digital Link workflows require POS firmware that interprets hyperlinked product attributes. Legacy POS systems (pre-2018) may need middleware gateway or manual barcode routing to maintain backward compatibility.
- RS-232 cable runs should stay under 50 feet for reliable serial handshake; longer distances require RS-485 repeater or USB isolation hub. Plan for cable management when consolidating multiple scanners on a single checkout island.
- Optional camera requires separate USB power if connecting to non-powered hub. Verify USB host port current budget (typically 500mA per port) before daisy-chaining additional peripherals.
- Thermal environment: tested for -10°C to 50°C operation. Verify checkout area doesn't exceed this range; outdoor kiosks or refrigerated-section POS terminals may require environmental enclosures.
- 1-year manufacturer warranty covers hardware defects; damage from drop impact or power surges after installation is customer responsibility. Budget replacement scanner cost into capex planning for high-wear checkouts.
The Magellan 9550i is the right fit for retailers moving toward omnichannel barcode ecosystems — stores introducing produce-aisle QR codes, loyalty programs, or real-time inventory verification at checkout. If your operation still uses linear UPC-only scanning and legacy serial POS, the upgrade is optional; if you're integrating 2D barcodes or loss-prevention data capture, this bi-optic imager justifies the swap. For technical specifications and compatibility with your existing checkstand layout, review the Datalogic catalog.
