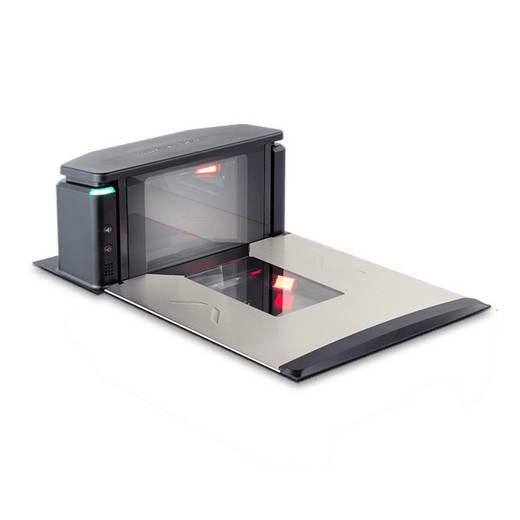

Datalogic Magellan 9550i Bi-Optic Fixed Retail Scanner

The Datalogic Magellan 9550i (957031001-01010) is a bi-optic fixed scanner engineered for high-volume retail checkout lanes where speed and reliability are non-negotiable. The dual-angle optic design reads 1D and 2D barcodes from both horizontal and vertical item positions without requiring the cashier to reorient products—a throughput advantage that compounds across thousands of transactions per shift. The 2D imaging engine captures QR codes, Data Matrix, PDF417, and standard UPC/EAN formats, bridging legacy barcode infrastructure and modern GS1 Digital Link–enabled supply chains in a single hardware footprint.

Key Features

• Bi-Optic Imaging: Dual-angle 2D imager reads barcodes from horizontal and vertical presentation angles. Eliminates item repositioning during scan, keeping checkout velocity steady during peak traffic.
• 2D Symbology Support: Decodes QR Code, Data Matrix, and PDF417 alongside 1D codes (UPC, EAN, Code 128). Single scanner handles both traditional inventory systems and modern digital link deployments.
• Dual Connectivity: USB and RS-232 wired interfaces accommodate modern POS terminals and legacy checkout systems without requiring adapter infrastructure or separate hardware.
• Compact Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in) with 6.4 kg (14.0 lb) weight fits standard checkout counter and self-checkout kiosk layouts without layout redesign.
• Retail Durability: Drop, thermal shock, and electrical surge resistant construction tested for high-contact checkout environments with frequent handling and power variation.
• Flexible Mounting: Multiple platter and bracket configurations support integration into traditional lanes, kiosk installations, and mixed conveyor/counter setups.
• 940nm Invisible IR Illumination: Invisible infrared light source reduces glare and eye strain for cashiers during extended shifts without degrading barcode read performance in bright retail lighting.

The Magellan 9550i addresses the core retail scan-at-source workflow: items presented from any angle should be readable without cashier intervention. The bi-optic geometry reduces missed-read rework loops and checkout line congestion—operational metrics that directly impact labor cost per transaction. Stores running high-velocity lanes (grocery, mass-market retail, QSR) or managing mixed barcode ecosystems (some UPC, some digital link) benefit most from this configuration.

Connectivity design reflects retail infrastructure reality. USB supports modern POS terminals and payment systems; RS-232 remains deployed across thousands of existing register clusters in mid-market and legacy chains. Dual wiring means a single scanner SKU works across heterogeneous checkout architectures without requiring VPN appliances, USB-to-serial adapters, or separate hardware allocations. Cable routing and panel integration are straightforward for integrators familiar with standard checkout layouts.

Mounting flexibility accommodates three common retail configurations: traditional fixed checkout counter (horizontal counter-top placement), self-checkout kiosk (vertical stand or platter mount), and conveyor-integrated checkout (overhead gantry or angled presentation). The 6.4 kg mass and optical assembly depth (406 mm) require stable mounting surfaces; confirm your fixture can handle retail-grade vibration load and frequent nearby operator handling. Thermal shock resistance (common in refrigerated checkout areas and heated front-end zones) and electrical surge protection defend against common retail power anomalies.

The 940nm infrared illumination is a practical design choice: invisible to the human eye, it minimizes glare fatigue for cashiers working 8-hour shifts, particularly in bright fluorescent or natural-light retail environments. Performance remains consistent across varied ambient lighting conditions without requiring manual intensity adjustment between checkout zones.

Datalogic backs the Magellan 9550i with a 1-year limited warranty and extension program options for extended coverage. Repair and replacement logistics are managed through established retail point-of-sale support channels; lead times are typically 3-5 business days for in-warranty service.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Magellan 9550i across conventional checkout lanes, self-checkout islands, and hybrid QSR environments. The bi-optic geometry is the real ROI lever—it eliminates the operational friction of cashier reorientation and missed-read loops. In high-velocity lanes (200+ transactions per hour), that translates to 2-4 seconds saved per transaction, which compounds to measurable checkout throughput over a 12-hour shift. We've seen integrators spec this unit specifically when replacing single-angle scanners that generated customer frustration and check-stand bottlenecks. The dual USB and RS-232 wiring is less glamorous but invaluable: it lets you deploy one hardware SKU across a retailer's entire estate—new POS islands running modern terminals coexist with legacy register clusters without separate procurement. That simplifies spares logistics and training. The 940nm IR is a detail many overlook until you walk a checkout line and notice cashiers aren't squinting from reflected light.

Technical Highlights:

• Bi-Optic 2D Imager: Horizontal and vertical angle coverage eliminates the single-plane limitation of traditional fixed scanners. In practice, this means items can be presented from any orientation—no cashier coaching required. Transaction velocity improvements are measurable in stores tracking scan-time metrics.
• QR and Data Matrix Alongside 1D: Critical for retailers managing both UPC-only legacy catalogs and digital link–forward assortment (fresh food, pharmacy, promotional items). Single hardware handles both without fallback to secondary devices.
• USB + RS-232 Dual Wiring: Eliminates the capex and logistics burden of separate scanner models for modern vs. legacy register clusters. One part number, one spares pool, one training footprint.
• Drop and Thermal Shock Resistance: Retail checkout is a high-vibration, high-contact environment. The 9550i is engineered for that reality—we've seen units survive thousands of accidental bumps and thermal swings (unheated loading dock to heated sales floor transitions) with zero functional degradation.
• Invisible 940nm IR: Reduces eye strain and glare fatigue during extended cashier shifts. Measurable in stores that track eye-strain complaints or cashier turnover correlated with register environment.

Deployment Considerations:

• Mounting surface must support 6.4 kg sustained weight plus dynamic loading from item presentation. Standard retail checkout fixtures are rated for this, but custom or lightweight kiosk installations may require reinforcement.
• RS-232 cable routing in modern POS terminals is less common than USB; confirm your register cluster has available RS-232 ports or plan USB-primary wiring with RS-232 as fallback for legacy zones.
• Barcode print quality matters. Faded or low-contrast UPC labels on aged packaging can require closer presentation distance with any fixed scanner; communicate print-quality standards to retailers managing their own label supply.
• The 406 mm depth (optical assembly length) must clear overhead structures in kiosk installations. Measure ceiling height and canopy clearance before mounting in self-checkout islands.
• Electrical surge protection is built-in, but checkout lanes with known power instability (older buildings, frequent lightning exposure) may benefit from external UPS or surge-protected PDU.

The Magellan 9550i is the right spec for retailers optimizing checkout labor cost and throughput, particularly those managing mixed-barcode ecosystems or operating high-velocity lanes with reorder-focused cashiers. Integrators focused on enterprise checkout modernization or QSR drive-thru productivity should evaluate this unit against single-angle alternatives. Explore the full Datalogic catalog for complementary mobile scanners and data-capture solutions.
