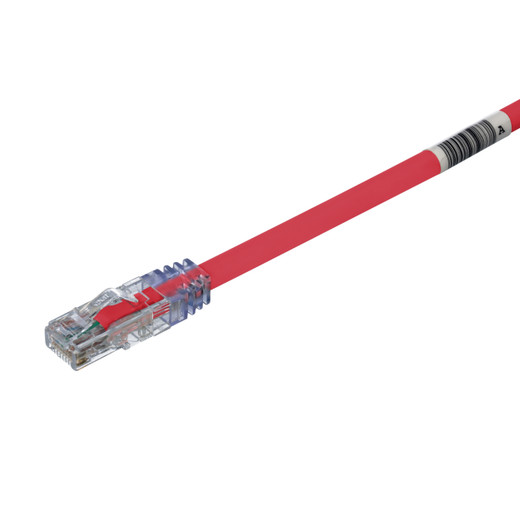

Panduit UTP6AX30RD 30 ft Cat 6A UTP Patch Cord

Panduit UTP6AX30RD Cat 6A UTP Patch Cord

The Panduit UTP6AX30RD delivers certified 10GBASE-T performance in a 30-foot Cat 6A patch cord built for data centers, enterprise backbone aggregation, and high-density PoE deployments. This red UTP jumper uses 24 AWG solid copper conductors in a 0.250" diameter jacket, providing the bandwidth headroom and alien crosstalk rejection required for 10 Gb/s Ethernet across the full 1–500 MHz spectrum. The tangle-free modular plug design streamlines rack work during moves, adds, and changes, while integrated RapidID barcoding enables one-scan port mapping in documentation software—cutting hours from infrastructure audits and troubleshooting cycles. When you're provisioning server clusters, consolidating I/O to 10Gig uplinks, or running 802.3bt Type 4 PoE to high-power access points over distance, this cord gives you verifiable TIA-568.2-D Category 6A compliance without the bulk or handling friction of shielded alternatives.

Key Features

• 10GBASE-T Certified: Exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA standards across 1–500 MHz, ensuring full 10 Gb/s throughput for converged data center fabrics and high-speed computing backplanes
• Alien Crosstalk Suppression: Solid foil tape construction limits interference between adjacent cables in dense bundles, maintaining signal integrity in 40+ cable pathways without shielded bulk
• Tangle-Free Latch: Snag-resistant plug design permits fast insertion and one-hand release in crowded patch panels, reducing install time and accidental disconnects during adjacent port work
• RapidID Pre-Installed Barcodes: Factory-applied unique identifiers integrate with Panduit RapidID software for automated port mapping, cable tracing, and as-built documentation—eliminating manual label errors
• PoE++ Ready: Supports IEEE 802.3af/at/bt Type 3 and Type 4 power delivery (up to 90W), meeting power budget requirements for Wi-Fi 6E APs, PTZ cameras, and LED lighting controllers over the full 30-foot run
• Solid 24 AWG Copper: Lower DC resistance than stranded equivalents maintains PoE voltage stability and reduces insertion loss at 500 MHz, critical for 10Gig error-free operation
• Universal Wiring Compatibility: Wired to support both T568A and T568B termination schemes, ensuring plug-and-play connectivity across mixed legacy and modern infrastructure
• High-Visibility Red Jacket: Simplifies VLAN identification, circuit tracing, and emergency power or OOB management network designation in color-coded rack environments

Panduit's TX6A™ 10Gig platform addresses the reality that most 10GBASE-T link failures trace to inferior patch cords, not structured cabling. This UTP6AX30RD cord uses the same solid 24 AWG copper and precision geometry found in Panduit's horizontal cable, maintaining consistent impedance and return loss across the entire channel. The U/UTP construction (unshielded twisted pair) relies on tight pair geometry and foil tape rather than heavy braided shields, yielding a 0.250" diameter that's 30% thinner than typical Cat 6A STP cords—a tangible advantage when dressing cables in 1U server rear clearances or high-density angled patch panels. The tangle-free latch uses a low-profile boot that deflects snags during insertion yet releases cleanly with thumb pressure, a design refinement that matters when you're swapping 40 server uplinks in a maintenance window. Alien crosstalk—the interference between cables in a bundle—is the limiting factor for UTP at 500 MHz; Panduit's foil tape and pair separation hold ANEXT below -67 dB at 500 MHz, exceeding the -60 dB TIA-568.2-D requirement with margin for real-world bundle derating.

In modern data centers, 30-foot patch cords bridge top-of-rack switches to adjacent cabinet rows, connect blade chassis to aggregation switches, or link storage arrays to converged network adapters—runs where 10 Gb/s is baseline and PoE++ is increasingly common for in-rack management modules. This cord's 24 AWG solid copper exhibits ~6.5 Ω/100m DC resistance (versus ~9 Ω for stranded), translating to 0.6 volts less drop over 30 feet under 802.3bt Type 4 load—enough to keep a 90W device above its minimum operating voltage when the PSE is already marginal. The CM flame rating suits plenum-adjacent riser pathways and general building spaces (though not air-handling plenums), covering the majority of enterprise and light industrial installations. RapidID integration is a force multiplier during commissioning and troubleshooting: scan the barcode at each port, and Panduit's software auto-populates your DCIM or spreadsheet with actual installed cable IDs, lengths, and test results—eliminating the "which cable goes where" guesswork that burns hours during outage recovery. The red jacket isn't cosmetic; it's a visual contract that this run belongs to a specific VLAN, security zone, or backup network, reducing human error when a tech is tracing circuits under pressure.

Compliance extends beyond TIA and ISO: the cord meets ANSI/TIA-1096-A (formerly FCC Part 68) for telephony compatibility, IEC 60603-7 for international modular connector standards, and UL 1863 safety certification (File E129886). RoHS compliance ensures it's spec-ready for federal and California state procurements. When you're bidding a 10Gig refresh, virtualizing a server farm, or aggregating 2.5/5GBASE-T edge switch uplinks, the UTP6AX30RD gives you a patch cord that installs faster, documents automatically, and performs to standard without the handling tax of shielded cable—a combination that pays back in labor savings the first time you dress a 42U rack in half the expected time.
