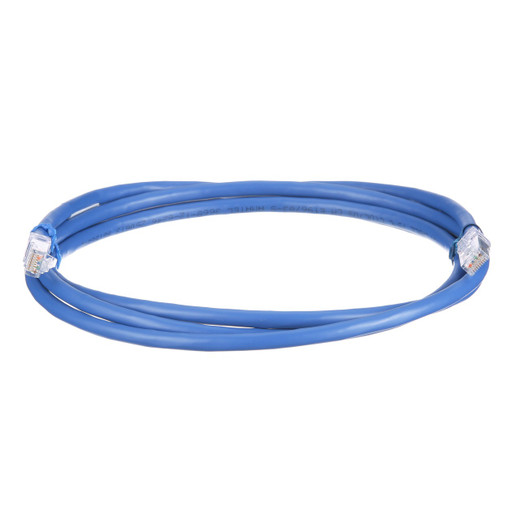

Panduit UTP6AX22BU Cat 6A 22 ft UTP Patch Cord

Panduit UTP6AX22BU TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX22BU delivers 10GBASE-T performance in a 22-foot, unshielded twisted pair patch cord engineered for high-density datacenter and structured cabling deployments. Built on TX6A 10Gig technology with solid foil tape shielding around each pair, this Cat 6A U/UTP cable suppresses alien crosstalk to support full 10 Gb/s transmission over copper without the bulk and termination complexity of shielded alternatives. The 0.250-inch (6.4 mm) diameter, 24 AWG solid conductor construction maintains bend radius compliance in tight pathways while the tangle-free modular plug latch eliminates snag-induced downtime during moves, adds, and changes. Pre-installed RapidID barcodes enable one-scan port mapping for accurate documentation in large-scale rollouts.

Key Features

• TX6A 10Gig modular plugs with solid foil tape per pair to limit alien crosstalk and guarantee 10 Gb/s Ethernet
• 24 AWG solid copper conductors in U/UTP (unshielded) construction for reduced cable diameter and pathway congestion
• Tangle-free latch design prevents snags on adjacent cables and provides fast, reliable disconnect in dense patch fields
• Pre-installed RapidID barcodes for rapid port identification and cable management documentation using Panduit RapidID software
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements with margin for future headroom
• Rated for IEEE 802.3bt Type 3 and Type 4 PoE++ (up to 90W) to support high-power IP cameras, WAPs, and LED lighting over a single cable
• CM (communications) flammability rating for general-purpose horizontal and riser applications per NEC Article 800
• 2,500 insertion-cycle plug durability tested to exceed typical enterprise infrastructure refresh intervals

Alien crosstalk—interference between adjacent cables in a bundle—is the limiting factor in 10GBASE-T deployments over unshielded copper. Panduit's TX6A solid foil tape wraps each twisted pair individually, creating an internal shield that blocks electromagnetic coupling from neighboring cables without requiring a full F/UTP or S/FTP construction. This approach cuts cable diameter by roughly 30% compared to fully shielded Cat 6A alternatives, improving airflow in high-density cable trays and reducing pathway fill. The 24 AWG solid conductor design maintains DC loop resistance within TIA-568.2-D limits while offering superior pull tension and termination stability compared to stranded-conductor patch cords in permanent-link applications. The 0.250-inch outer diameter simplifies installation in congested telecommunications rooms and meets the 6x bend radius rule (1.5-inch minimum) for Category 6A channels without kinking or performance degradation.

RapidID integration addresses a critical pain point in large datacenter and campus network deployments: accurate, scalable cable documentation. Each UTP6AX22BU ships with a factory-applied barcode that links the physical cable to Panduit's RapidID port-mapping software. During installation, technicians scan the barcode at both ends, automatically logging switch port, patch panel position, VLAN assignment, and cable length in a centralized database. This eliminates manual label creation, reduces documentation errors that lead to troubleshooting delays, and provides instant asset visibility for MAC (moves, adds, changes) work orders. In environments with hundreds or thousands of patch cords, RapidID cuts documentation time per cable from 2–3 minutes to under 10 seconds and ensures that as-built records remain synchronized with physical infrastructure. The 22-foot length suits typical equipment-to-patch-panel distances in datacenter hot/cold aisle layouts, underfloor cable distribution, and mid-span connections in telecommunications rooms.

The UTP6AX22BU meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 modular plug requirements, ensuring compatibility with all RJ45 jacks in TIA-568-compliant structured cabling systems. IEEE 802.3bt Type 3 and Type 4 PoE++ certification confirms the cable can deliver up to 90W of DC power alongside 10 Gb/s data without exceeding temperature rise limits—critical for powering PTZ IP cameras with integrated heaters, 802.11ax Wi-Fi 6E access points, and LED high-bay fixtures in warehouses and production floors. The CM flammability rating qualifies the cable for general-purpose horizontal runs and riser installations per NEC Article 800; plenum-rated variants (CMP) are required only in air-handling spaces. UL 1863 certification and RoHS compliance meet procurement requirements for federal, healthcare, and multinational enterprise deployments where material safety and supply chain transparency are contract stipulations.
