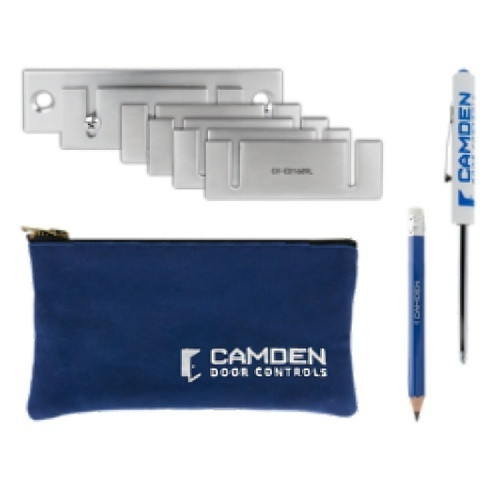

Camden CX-STR-TMPKIT Electric Strike Marking Template Kit

Overview

The CX-STR-TMPKIT is a marking template accessory that eliminates guesswork during electric strike installation. It guides accurate hole drilling and frame positioning for Camden magnetic lock strike systems, reducing installation time and ensuring repeatable, code-compliant strike placement. Use this template on new installations or retrofit projects where door frame preparation must be precise — misaligned strikes cause intermittent release failures and callbacks.

Compatibility

The CX-STR-TMPKIT is designed for use with Camden CX-Series magnetic lock strike systems, including the CX-91S and CX-92S series. It supports installation on standard door frames and works in coordination with Camden mounting brackets (L-bracket, L&Z bracket variants), filler plates, and armature housings in the CX-Series accessory ecosystem. Confirm your specific strike model before ordering to ensure template alignment with your frame geometry and strike mounting configuration.

Installation Notes

Position the template against the door frame at the strike mounting location. Mark all pilot holes with the template in place — this ensures proper spacing and alignment with frame material. The template accommodates standard door frame thicknesses and coordinates with Camden's bracket and filler plate offerings. Remove the template after marking; pilot holes guide final strike installation. Verify frame material (wood, metal, composite) supports the strike's holding force before drilling.
