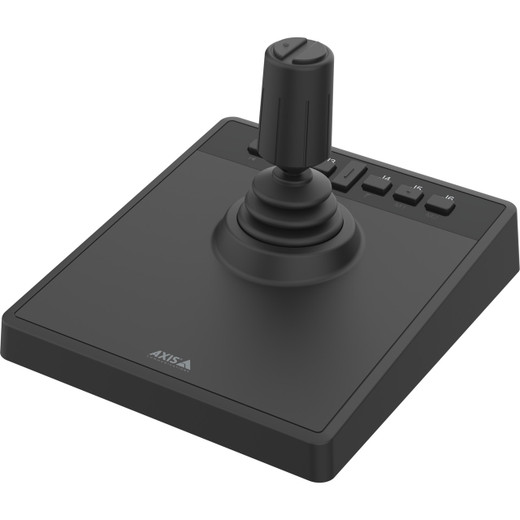

Axis 02475-001 TU9002 Hall-Effect Joystick Control
The Axis 02475-001 is a precision three-axis joystick engineered for professional PTZ camera operation in security command centers and surveillance control rooms. Built on Hall-effect technology instead of resistive potentiometers, this control eliminates mechanical wear points that degrade accuracy over thousands of operating hours—critical when operators are managing multi-camera scenes during active security incidents.
Key Features
- Hall-effect joystick with three-axis control: X/Y axes handle pan and tilt movements, while the Z knob manages zoom. Hall-effect sensing means zero contact wear between moving parts, so the joystick maintains consistent response throughout its operational life without calibration drift.
- Square delimiter deflection zones (±15° XY, ±25° Z): These constrained movement envelopes prevent accidental over-deflection during rapid camera positioning. Tactile feedback reduces operator fatigue and ensures repeatable, predictable control—especially valuable in time-critical security responses.
- 16 customizable hotkeys: Program frequently used PTZ presets, focus modes, or auxiliary camera functions directly into the joystick. Operators access critical scenes with a single button press rather than manual joystick navigation, cutting response time during incidents.
- Dual USB connectivity (Type A + Type C): USB Type A connects to the host workstation; USB Type C connects to the 02475-001 unit itself. This flexibility accommodates both legacy systems and modern computer architectures without requiring separate adapters or hubs.
- Tiered IP rating (IP54 top surface, IP5x joystick module): The IP54 rating on the top surface and IP5x around the joystick module protect against dust ingress and moisture splash common in active command centers. The bottom panel is IP20, suitable for desktop mounting. These ratings ensure the joystick remains operational in dusty server rooms or high-traffic security operations without sacrificing tactile response.
- Compact ergonomic footprint (185 × 156 × 122 mm / 7.3 × 6.1 × 4.8 inches): Small enough to fit dense multi-monitor workstations without consuming valuable desk space. At 679 g (1.5 lb), it's lightweight enough to reposition between operators or workstations without strain.
Integration & Compatibility
The 02475-001 integrates directly with Axis IP cameras and PTZ systems via AXIS Camera Station version 5.54 or higher. Axis maintains a formal integration program with third-party video management software vendors; refer to axis.com for the current list of certified VMS solutions. If you're deploying this joystick alongside network video recorders or existing PTZ camera infrastructure, confirm your VMS supports the TU9002 before purchase.
The 200 cm (78.7 inch) USB cable accommodates standard command-center desk layouts where the host workstation sits 6–8 feet from the operator's position. If you need longer cable runs, third-party USB extension cables are available, though they may introduce latency or signal degradation in high-noise environments.
What's in the Box
- Axis TU9002 Joystick unit
- USB cable (200 cm) with Type A to Type C connectors
- Installation guide
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02475-001 addresses a real problem in command-center ergonomics: joystick wear. Resistive joysticks degrade predictably over time, introducing dead zones and requiring frequent recalibration. The 02475-001's Hall-effect architecture eliminates that maintenance burden entirely. After 5,000+ operating hours—roughly one operator working 10 hours per week for a year—a resistive joystick may need replacement; the 02475-001 will still deliver repeatable sub-degree accuracy.
Technical Highlights:
- Hall-effect sensing vs. potentiometric: No sliding contacts means zero wear-induced drift. In a 24/7 command center rotating four operators, that translates to years longer operational life before recalibration or replacement.
- Deflection zone constraints (±15° XY, ±25° Z): These soft-limit envelopes prevent the joystick from over-traveling, reducing accidental pan/tilt overshoots during high-speed scene changes. Critical when managing multiple PTZ cameras simultaneously under time pressure.
- 16-hotkey programmability: Pre-program pan/tilt/zoom presets for critical zones—parking lot entry, loading dock, server room entrance. Operators hit one key instead of manually jogging the PTZ, cutting response latency by 2–3 seconds on average incident calls.
Deployment Considerations:
- Confirm your VMS version: AXIS Camera Station 5.54 or higher is required. Older versions won't recognize the 02475-001 without manual driver work, which defeats the plug-and-play benefit.
- The 200 cm cable is non-replaceable by the operator; if you need longer runs, budget for a USB 3.0-rated extension cable and test latency before deployment. USB 2.0 extensions may work but introduce jitter on fast pan/zoom commands.
- IP5x rating around the joystick module is dust-resistant but not washdown-rated. Don't deploy this in wet environments or spray-down zones; stick to climate-controlled command centers.
For organizations already standardized on Axis PTZ cameras and AXIS Camera Station, the 02475-001 is the fastest path to ergonomic multi-camera control. Its Hall-effect design and hotkey architecture make sense in high-utilization control rooms where operators spend 8+ hours per shift managing dynamic scenes.
Frequently Asked Questions
Q: Does the Axis 02475-001 require special drivers or firmware updates?
A: No. The joystick works plug-and-play with AXIS Camera Station 5.54 or higher. If you're using third-party VMS software, check the vendor's ONVIF or Axis integration documentation to confirm the TU9002 is certified before purchase.
Q: Can I use the 02475-001 with non-Axis PTZ cameras?
A: If your non-Axis PTZ cameras are ONVIF-compliant and your VMS supports ONVIF Profile S (PTZ control), the joystick may work. However, Axis does not officially support or test this configuration. Contact your VMS vendor to verify compatibility before deploying.
Q: What's the difference between Hall-effect and resistive joysticks?
A: Hall-effect joysticks use magnetic sensors and require no physical contact between moving parts, eliminating wear. Resistive joysticks rely on variable potentiometers that degrade over thousands of hours. The 02475-001's Hall-effect design maintains accuracy far longer without recalibration.
Q: Is the 02475-001 waterproof or outdoor-rated?
A: No. It has IP54 top-surface and IP5x module ratings—suitable for dusty indoor command centers but not for outdoor, wet, or washdown environments. It's a desktop control device only.
Q: Can I program the 16 hotkeys without IT staff?
A: Yes. Hotkey assignment is handled through AXIS Camera Station's user interface. Operators can typically configure presets themselves, though IT may want to lock down button assignments for security/consistency reasons.
Q: What happens if the USB cable is damaged?
A: The 200 cm cable is integral to the unit and not field-replaceable. Damage typically requires sending the joystick to a service center. Standard USB extension cables (USB 3.0-rated, under 15 feet) can add length but introduce potential latency; test before relying on them in production.
