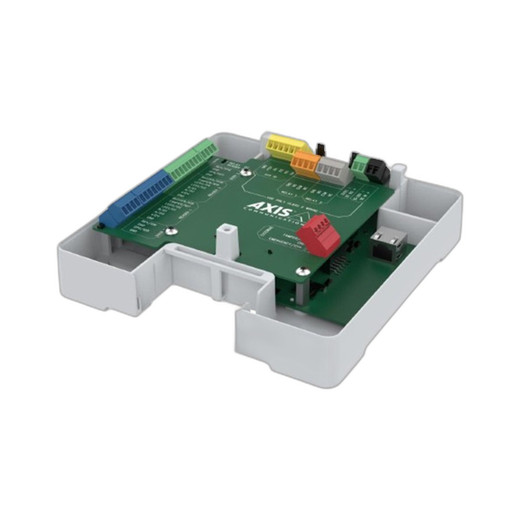

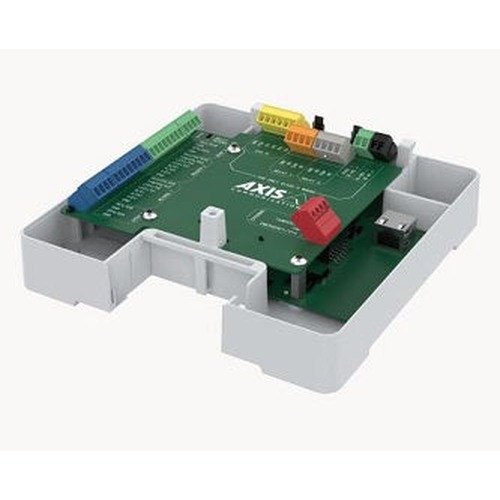

Axis 02654-001 Network Door Controller
The Axis 02654-001 is a network-based access control device built for environments where you need independent control over two separate door circuits—whether that's an entrance vestibule, secure zone boundary, or segregated facility access point. It runs on PoE (Class 4), which eliminates dedicated power wiring, but it also accepts 10–28 V DC backup input. That dual-power design matters: if your network drops, DC backup keeps egress doors operational, which is critical for life-safety compliance and building code adherence. The barebone form factor—no integrated enclosure—gives integrators flexibility to choose their own mounting strategy and environmental protection based on site requirements.
Key Features
- Dual-relay control: Two independent relay outputs let you command two doors separately. This avoids the need for two separate controllers in dual-entry scenarios, cutting hardware cost and management overhead.
- PoE + DC backup: Primary power from standard 802.3af PoE keeps your network cleaner. DC input (10–28 V) provides continuity during network outages—meaning locked doors stay locked and egress doors unlock as configured, even if your switch goes down.
- 6 alarm inputs/outputs: Integrate door sensors, motion detectors, pushbuttons, and third-party alarms into a single control point. Each alarm channel is configurable, so logic is applied at the edge rather than upstream to your VMS.
- Digital I/O support: Extends compatibility with auxiliary devices and legacy access hardware, avoiding costly system replacement.
- Operating temperature –40 to +70 °C: This wide range handles warehouse loading docks, outdoor vestibules, and climate-variable industrial spaces without thermal derating or performance loss.
- UL 294 access control certification: Validates suitability for regulated environments (healthcare, government, finance) where third-party inspection and compliance audits are routine.
- UL 2043 plenum rating: Approved for above-ceiling and return-air installations in office buildings without additional fire barriers—a cost and scheduling win for retrofits.
- Tamper detection and edge processing: Detects physical tampering and runs access logic locally, reducing latency and dependency on centralized systems for critical door commands.
Integration & Compatibility
The 02654-001 integrates with Axis access control systems and third-party platforms via ONVIF-compatible interfaces. It pairs well with network video recorders for synchronized event logging—door events, alarm triggers, and video clips all timestamped together. If your infrastructure already runs an Axis VMS, adding this controller reduces architectural fragmentation and training overhead. Digital I/O and alarm channels support mixed-vendor sensor ecosystems, so you aren't locked into one brand's ecosystem.
Why Choose the 02654-001
Pick this model if you need reliable, code-compliant dual-door control without the complexity of a full access management platform. Its PoE primary power and DC backup eliminate single points of failure for emergency egress. The 6 configurable alarm channels handle sensor integration at the edge, reducing configuration burden on your VMS and improving response time. The wide operating temperature range and UL certifications make it suitable for regulated verticals (healthcare, data centers, government) where compliance audits are standard. Consider a different approach if you need to control more than two doors from a single device—the 02654-001 is purpose-built for two independent circuits.
Frequently Asked Questions
Q: Does the Axis 02654-001 work with non-Axis video management systems?
A: Yes. The controller supports ONVIF-compatible interfaces and digital I/O, so it integrates with third-party VMS platforms and access control systems. Integration depth depends on your platform's ONVIF Profile support.
Q: What happens if the network fails but DC backup is connected?
A: The 02654-001 continues to operate on DC input (10–28 V). Relay states follow your configured backup behavior—egress doors can be set to unlock on power loss for life-safety compliance, while secure doors remain locked.
Q: Can I install the 02654-001 in a ceiling plenum or above a drop ceiling?
A: Yes. UL 2043 plenum rating permits installation in controlled-environment plenums and return-air spaces without additional fire-rated enclosures, saving retrofit time and cost.
Q: Does the 02654-001 provide power output for auxiliary devices?
A: Yes. It provides up to 24 V DC output for powering sensor devices, electric strikes, and other auxiliary hardware.
Q: What's the operating temperature range for the 02654-001?
A: –40 to +70 °C (–40 to +158 °F). This range covers outdoor vestibules, warehouse environments, and climate-variable industrial spaces without thermal derating.
Q: Is the Axis 02654-001 certified for regulated industries?
A: Yes. UL 294 access control certification validates its use in healthcare, government, and finance deployments subject to compliance audits and third-party inspection.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02654-001 represents a practical approach to edge-based access control. It avoids the bloat of a full management platform while delivering reliable dual-door command with built-in resilience. PoE as primary power is the right default—standard enterprise networks already carry it, so no new power infrastructure. The DC input (10–28 V) backup is where resilience lives: during a network outage, your egress logic doesn't go silent, which is critical for life-safety code compliance and auditor approval.
Technical Highlights:
- Dual independent relays: Two completely separate door circuits mean you avoid daisy-chaining or complex relay logic to handle entrance vestibules or zone segregation. Each door operates independently.
- 6 configurable alarm channels: Edge-based alarm processing means sensor events trigger local logic without roundtrip latency to a distant VMS. Critical for motion-detection egress unlock or tamper lockdown scenarios.
- 24 V DC output: Eliminates the need for a separate power supply to feed electric strikes, mag locks, or door sensors. Cleaner wiring, fewer single points of failure.
- –40 to +70 °C operating range: Unlike controllers rated 0–50 °C, the 02654-001 handles unheated warehouse docks and outdoor vestibules without derating relays or introducing thermal cycling stress.
- UL 2043 plenum-rated enclosure: If you retrofit above a drop ceiling or in a controlled-air return, you skip the cost and schedule hit of custom fire-rated cabinets. Straightforward ceiling mount, no barriers needed.
Deployment Considerations:
- The barebone form factor (no integrated enclosure) means you specify your own cabinet or surface mount—adds flexibility but requires planning. Don't assume it ships ready to bolt to a wall.
- DC backup voltage must come from your own power source (UPS, battery, or facility backup). If you don't have one, network-only operation is reliable but loses the egress-safety edge.
- Integration with non-ONVIF VMS platforms may require custom I/O mapping. Test driver support before committing to a mixed-vendor ecosystem.
The 02654-001 is strongest in healthcare facilities, secure government buildings, and regulated finance environments where egress safety and compliance audits are non-negotiable. It's also well-suited for data centers and industrial sites spanning multiple climate zones. Pair it with a UPS-backed DC supply and ONVIF-compatible VMS, and you have a resilient, codifiable access point that won't trap occupants if the network hiccups.
