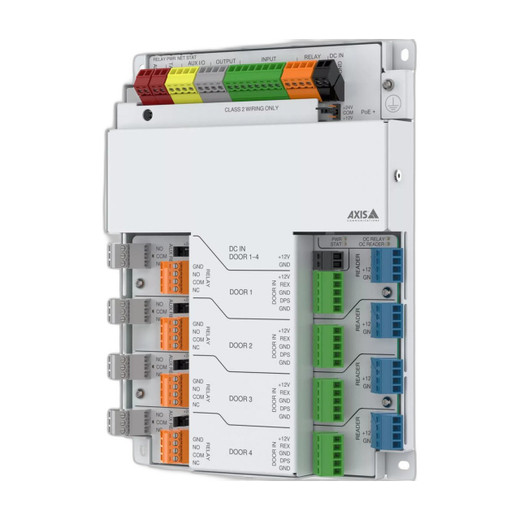

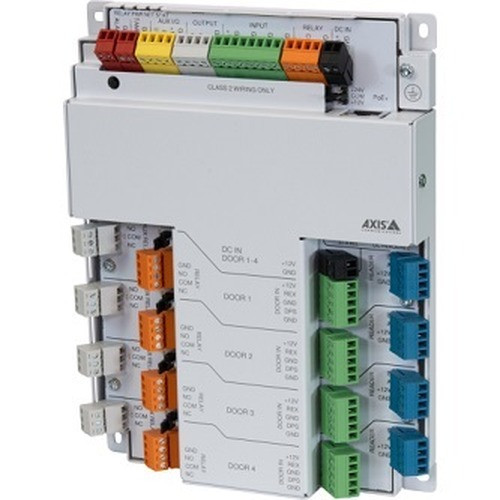

Axis 03078-001 Network Door Controller
The Axis 03078-001 is a compact, enterprise-grade network door controller that centralizes access control for up to four doors from a single networked device. It supports eight OSDP (Open Supervised Device Protocol) readers and eight locks, making it a practical choice for organizations moving away from legacy proximity-card systems toward encrypted, auditable credential management. Power delivery via standard PoE eliminates the need for dedicated 24VDC power supplies, simplifying both initial deployment and future relocations.
Key Features
- Four-door management capacity. Consolidates control logic for up to four separate access points into one device, reducing the number of control nodes you need to manage, patch, and monitor across your network.
- Eight OSDP reader support. OSDP (Open Supervised Device Protocol) encrypts credential data in transit—no plaintext card numbers crossing your network. This prevents credential cloning attacks that exploit unencrypted Weigand or RS-485 reader protocols.
- Eight lock outputs. Integrate eight individual locks, magnetic strikes, or relay-controlled door hardware from one controller, simplifying wiring and reducing junction box complexity at each access point.
- OSDP Verified certification. Third-party verified compliance with OSDP secure communication standards, ensuring interoperability with certified third-party readers while maintaining encrypted command and credential channels.
- PoE power delivery (IEEE 802.3af). Draws under 13W, staying well within standard PoE budget on any managed switch. No 24VDC supply chain, no UPS considerations for power supplies—power and data travel one cable.
- Axis Edge Vault hardware security module. Protects cryptographic keys and sensitive access data against both logical and physical tampering, isolating them in secure on-device storage rather than relying on software-only encryption.
- Secure boot and signed firmware. Prevents unauthorized code injection and ensures the controller only runs Axis-signed software, reducing risk of rootkit or malware persistence at the access-control layer.
- Compact form factor. Fits into standard equipment closets, ceiling cavities, or control-room racks without requiring dedicated cabinet space, important in retrofit and multi-tenant environments.
Integration and Compatibility
The 03078-001 is designed to integrate with access control systems running Axis management software and with any OSDP Verified reader from qualified manufacturers. Network integration relies on standard Ethernet and ONVIF-based APIs for third-party VMS platforms. When deployed alongside Axis IP cameras, the controller can trigger camera actions (snapshot, recording, PTZ preset) upon credential events, enabling video verification at access points and forensic correlation between physical entry and visual record.
For organizations already running Axis Companion or integrating with mainstream VMS platforms (Milestone XProtect, Genetec, Hanwha), the controller communicates via REST APIs and standard protocols. Door events (open, denied, tamper) flow into your management console in real time, enabling audit trails, anomaly detection, and emergency lockdown commands.
When to Choose a Different Model
If you need to manage more than four doors from a single controller, Axis offers larger access control platforms in the same family with greater port density. If your environment requires only two doors or fewer, smaller single-door controllers may reduce complexity and cost. For applications requiring integrated video at the controller level (rather than separate cameras), consider controllers bundled with embedded analytics or paired with compact networked recorders.
Frequently Asked Questions
Q: Does the Axis 03078-001 require a separate management server or software license?
A: The 03078-001 operates as a standalone device and does not require a dedicated server. However, for centralized policy management across multiple controllers, enterprise deployments typically integrate it with Axis access management software or a third-party VMS platform using ONVIF APIs. Many organizations use existing Axis management infrastructure at no additional cost.
Q: What happens to door locks if the network goes down?
A: The 03078-001 itself does not have a built-in battery or backup power—it depends on PoE. Loss of network power results in loss of electronic control. To maintain access during power loss, integrate the controller with UPS-backed PoE switches or add battery-backed door controllers at critical access points. Many integrators deploy the 03078-001 for convenience areas and redundant controllers for life-safety zones.
Q: Is the Axis 03078-001 compatible with legacy Weigand or RS-485 readers?
A: No. The 03078-001 supports only OSDP readers. If you have existing Weigand readers, you would need to upgrade to OSDP Verified readers or deploy a separate Weigand-to-OSDP converter. This is by design—OSDP encryption is the security advantage of this controller over legacy architectures.
Q: Can I mount the 03078-001 on a wall, or is it enclosure-only?
A: The compact form factor is designed for installation in equipment closets, control rooms, or 19" racks. It is not rated for direct wall mounting in occupied spaces. Install it in a secured closet or cabinet and run ethernet and door control wiring to the access points.
Q: Does the controller support emergency egress (REX) buttons or motion sensors?
A: Yes. In addition to OSDP readers, the 03078-001 can accept input from request-to-exit buttons, motion sensors, and other door automation devices wired to the controller's input/output ports, enabling integrated life-safety and access workflows.
Q: What is the warranty on the Axis 03078-001?
A: Axis typically provides a standard one-year manufacturer warranty on access control devices. Verify the specific warranty terms with your specialty distributor at point of purchase, as some regions or wholesale agreements may differ.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03078-001 is built for integrators tired of supporting aging proximity-card systems with unencrypted credential transmission. OSDP protocol encryption eliminates credential cloning as a practical attack vector—a significant upgrade for organizations handling high-value facilities, data centers, or regulated environments. The controller's ability to manage eight readers and eight locks from a single PoE device cuts infrastructure complexity dramatically compared to deploying four separate single-door controllers.
Technical Highlights:
- OSDP Verified encryption: Unlike legacy Weigand or unencrypted RS-485 protocols, OSDP uses cryptographic handshakes to exchange credentials and commands. A network tap cannot yield usable card data. This is non-negotiable in environments where social engineering or physical attacks on readers are realistic.
- Edge Vault hardware security module: Cryptographic keys and sensitive access data are segregated in a tamper-resistant silicon module, not stored in regular flash memory. Physical attacks (chip-off, fault injection) cannot extract keys. This is enterprise-grade compliance infrastructure, especially important in HIPAA or SOC 2 environments.
- Single PoE feed (under 13W): No 24VDC supply chain means faster deployment, fewer power-distribution points to maintain, and zero UPS overhead for access control power. On a properly managed PoE switch with redundant uplinks, this controller becomes part of your network resilience, not a separate infrastructure silo.
- Compact footprint: Equipment closet or rack-mount installation—no cabinet sprawl. In retrofit scenarios (offices, campuses) where access-control cabinets are already undersized, the 03078-001 fits where traditional 4-door controllers do not.
Deployment Considerations:
- Weigand readers are not compatible: If you're upgrading from legacy Weigand infrastructure, budget for reader replacement. Converters exist but add cost and latency. Plan for a phased reader upgrade in parallel with controller deployment.
- No built-in battery or failsafe power: A PoE outage means a network outage for door control. In life-safety zones (emergency exits, building egress), pair the 03078-001 with a UPS-backed PoE switch or deploy a second battery-backed controller for redundancy. Convenience-area access (offices, conference rooms) tolerates brief lockdown; critical areas do not.
- Management integration is not free: The controller itself is plug-and-play, but integrating events into your VMS or enterprise audit log requires ONVIF API configuration or a third-party integration layer. Budget for that engineering upfront.
The 03078-001 is the right choice for organizations standardizing on encrypted access control and consolidating infrastructure. It's not a retrofit drop-in for legacy Weigand systems, and it's not a battery-backed autonomous controller for power-failure scenarios. It's a network-native, security-hardened four-door platform for campuses, multi-tenant buildings, and enterprises already running centralized access management.
