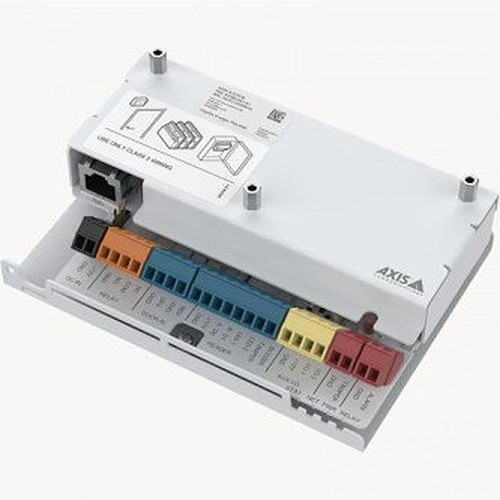

Axis 02369-001 Network Door Controller
The Axis 02369-001 is a compact, network-native access control device designed to centralize door management without dedicated 24V power infrastructure at each entry point. Built for integrators deploying Axis surveillance ecosystems, this controller consolidates authentication, event logging, and lock control into a single PoE-powered unit, reducing installation labor and supporting retrofit scenarios where power routing is constrained.
Overview
Access control deployments often demand separate power conditioning, relay coordination, and credential management across multiple vendors. The 02369-001 eliminates that fragmentation by combining PoE delivery, multi-method authentication, and I/O expansion in one form factor. It operates across the temperature range 0–70°C, suitable for climate-controlled indoor and semi-outdoor environments—warehouses, office corridors, secure storage areas, and data centers where environmental extremes are unlikely. For larger installations or outdoor exposure, specify an enclosure and verify thermal design with your systems engineer.
Because it draws power from Class 4 PoE (under the typical 13W budget), the 02369-001 won't strain switch power supplies even on installations spanning dozens of doors. That efficiency matters on retrofit projects where PoE injectors or limited-capacity power budgets would otherwise force expensive electrical upgrades.
Key Features
- PoE Class 4 Power with 12VDC Option: Standard PoE delivery eliminates remote 24V power supplies at each door, a substantial labor and material savings on multi-door sites. The 12VDC backup input ensures continuity if PoE fails, supporting critical-access scenarios where brief power loss triggers alarms.
- Four Alarm Inputs and Two Relay Outputs: Integrates request-to-exit sensors, door position switches, and duress buttons without external interface boards. The two outputs enable both lock control and secondary alarm signaling (siren, strobe, central panel relay) from a single device.
- Single 24VDC Relay Output: Directly drives standard electric strikes and magnetic locks up to 24VDC, handling most common door hardware without intermediary relays.
- Multi-Method Credential Support: Accepts RFID cards, numeric PIN entry, and mobile access credentials (if paired with a compatible credential management platform). No hardware swap needed if authentication method changes; reconfigure at the controller or management console.
- Digital I/O Connectivity: Expands integration with third-party sensors (occupancy, environmental, or custom logic) and connected locks supporting open-collector signaling.
- UL 294 Access Control Certification: Confirms the device meets ANSI/UL 294 performance and safety standards for access control systems. Installers can confidently specify this in compliance-sensitive verticals (financial, healthcare, regulated manufacturing).
- UL 2043 Plenum Rating: Safe for installation in air-handling spaces (plenums) without additional enclosure, reducing footprint and installation friction in buildings with plenum cabling.
- Five-Year Warranty Eligibility: Extended warranty coverage available, signaling manufacturer confidence in durability and reducing long-term replacement risk.
Integration and Deployment
The 02369-001 integrates with Axis IP cameras and video management systems via standard Ethernet, supporting real-time door event correlation with video playback. Pair it with an NVR or VMS platform to timestamp lock actuation, alarm state changes, and credential usage alongside recorded video. This audit trail is critical for incident investigation and compliance reporting in healthcare, government, and financial institutions.
Installation requires basic network drops and 24V lock wiring. Verify your PoE switch has adequate power budget (Class 4 = up to 13W per port); on crowded switches, confirm total switch capacity before deployment. If the controller will operate in a harsh or outdoor location, mount it in a rated enclosure and test thermal stability in summer peak; the 0–70°C range assumes controlled indoor air.
For mobile credential support, confirm your credential management system and mobile platform support the Axis controller integration—this is NOT a plug-and-play mobile unlock feature but rather a configured backend process.
When to Choose a Different Model
The 02369-001 suits single-door or small multi-door deployments (3–5 doors per controller). If you're managing 20+ doors across a facility, evaluate a dedicated access control platform with higher I/O density and advanced features (anti-passback, scheduled access, manager override logging). For outdoor doors or extreme temperature environments, select a controller rated for the operating range and specify external environmental protection. If you need wireless credential readers, the 02369-001 integrates only with wired RFID or network-connected readers, not standalone wireless fobs—confirm reader hardware compatibility upfront.
Frequently Asked Questions
Q: Can the 02369-001 control multiple doors with one unit?
A: The single relay output controls one lock strike per unit. For multi-door deployments, wire multiple 02369-001 controllers in parallel on the same network, each with its own relay and alarm I/O. Larger sites may benefit from a centralized access control platform instead.
Q: What happens if PoE power drops?
A: The controller supports a 12VDC backup input for failover power. If both PoE and 12VDC fail, the device loses power; relay state depends on your lock configuration (fail-secure or fail-safe). Plan backup power strategy during design and test failover behavior before deployment.
Q: Is the 02369-001 compatible with Milestone XProtect or other non-Axis VMS platforms?
A: The controller communicates via Ethernet and ONVIF-compliant APIs, enabling integration with most modern VMS platforms. Verify your specific VMS version supports the Axis controller before purchasing; integration depth (native event subscription vs. webhook polling) varies.
Q: Does the 02369-001 include door position monitoring?
A: The four alarm inputs can wire to door position sensors, reed switches, or magnetic contacts. The controller reports open/closed state but does not force-lock the door if it remains open; that logic must be configured in your VMS or a separate access control platform.
Q: What's the maximum cable run from the PoE switch to the 02369-001?
A: Standard Ethernet cable limits are 100 meters (328 feet) per run. If you exceed that distance, use a PoE extender or run additional cabling. Always verify voltage drop and signal quality before deployment.
Q: Can I use the 02369-001 in a warehouse or unheated storage facility?
A: The operating range is 0–70°C (32–158°F). Unheated warehouses in cold climates may drop below 0°C in winter; verify your facility's minimum seasonal temperature before purchasing. If needed, select an enclosure with thermal management or request a variant with extended temperature rating from the manufacturer.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02369-001 is a pragmatic mid-range access control solution for organizations already operating Axis camera infrastructure. Its PoE power delivery is the primary win—most door controllers force remote 24V power conditioning, adding wiring labor and electrical design work. Eliminating that step cuts installation time and cost, particularly on retrofit projects or buildings with power-constrained wiring closets. The combination of four alarm inputs and two relay outputs, plus a single 24VDC strike control, handles the majority of standard single-door or small multi-door scenarios without intermediary interface modules.
Technical Highlights:
- PoE Class 4 Operation: Draws under 13W peak, so even a densely packed PoE switch won't exhaust its power budget. On a 60W switch (four ports), you can power four 02369-001 units plus additional cameras without overload.
- Four Alarm Inputs + Two Outputs: Request-to-exit sensors, duress buttons, and door position monitors wire directly; no need for external I/O boards. The dual outputs allow simultaneous lock release and siren/strobe triggering.
- UL 294 and UL 2043 Compliance: Certifications confirm suitability for regulated access control deployments and plenum-rated installations, eliminating secondary enclosure costs in many building configurations.
Deployment Considerations:
- Single relay output limits you to one door per unit. If you're deploying 10+ doors, cost-per-door often favors a dedicated 8- or 16-door access control panel over multiple distributed 02369-001 units.
- Operating range of 0–70°C excludes cold storage, outdoor loading docks, and unheated warehouses in winter climates. Verify facility temperature stability before specifying.
- Mobile access support requires integration with a credential management backend; this is not a standalone mobile unlock feature. Confirm your VMS or credential platform supports the Axis controller API.
The 02369-001 is ideal for secure document storage, office suites, server rooms, and small retail stockrooms where Axis cameras already provide surveillance and the door count is under five. Pair it with an Ethernet switch with sufficient PoE budget and a network-based VMS or access control guide to design the full system architecture. For campus-wide deployments or extreme environmental needs, escalate to a purpose-built access control platform.
