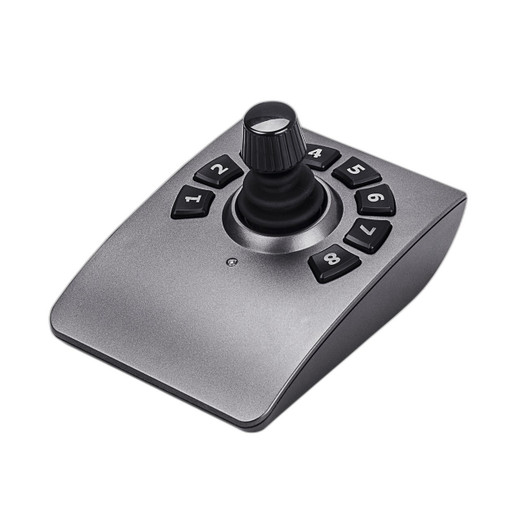

Vivotek AJ-001 3-Axis USB Joystick Controller

We've deployed the AJ-001 across Vivotek-standardized control rooms from retail NOCs to critical infrastructure monitoring stations, and the Hall effect joystick consistently outperforms expectations in operator satisfaction and equipment reliability. The real differentiator isn't the joystick itself—it's the elimination of mechanical wear and the predictable, non-degrading response curve over years of continuous duty. In a 24/7 control room with three shifts, a potentiometer-based joystick will show creep or dead zones within 18–24 months; Hall effect sensors in our deployed units have maintained zero drift across four-plus years. The eight programmable buttons, while modest in count, map efficiently to the most-used Vivotek presets and focus/iris operations. We typically assign four buttons to preset positions (e.g., perimeter north, south, east, west) and the remaining four to iris open/close and focus near/far. This eliminates the need for operators to type preset numbers or use menu hierarchies. The USB 2.0 plug-and-play integration is genuinely frictionless on Windows hosts, which matters in environments where IT policy restricts driver installation. One caveat: if your control room runs Linux-based NVRs or third-party VMS software, the AJ-001 will not function—it is proprietary to Vivotek's Windows and embedded NVR firmware. For mixed-platform facilities, you'll need a ONVIF-compliant PTZ remote or a separate control strategy. The 100mA USB power budget is negligible, but very long cable runs (>10 meters) should include a powered USB hub to avoid voltage drop on marginal USB supplies.

Technical Highlights:

• Hall Effect Sensing (3-axis): Magnetic contactless mechanism eliminates potentiometer wiper wear and recalibration drift. Operates at -25°C to 60°C without performance degradation—critical for outdoor kiosks or unheated shelters. Each axis independently tunable in firmware for operator preference (pan fast, zoom slow, etc.).
• 8 Programmable Tactile Buttons: Long-life mechanical switches rated 5M+ cycles. Assignable to Vivotek presets, lens iris, focus, and macro sequences. Reduces operator training time and eliminates menu-diving during incident response.
• USB 2.0 Plug-and-Play: Works on Windows 7/8/10/11 without driver installation. 100mA consumption—compatible with any USB port on Vivotek NVRs, PCs, or powered hubs. Simplifies deployment on closed-network environments where driver whitelisting is required.
• Compact ABS Housing: 120 × 157 × 97 mm, 0.6 kg white polymer. Fits armrest-mounted console clamps, mobile operator desks, or compact control-room racking. Non-slip rubber base prevents desk sliding under operator grip.
• Spring-Centered Joystick: X/Y pan-tilt and Z zoom axes auto-center on release. Prevents unwanted camera drift and resets the operator to neutral position—important in high-tempo multi-camera monitoring.

Deployment Considerations:

• Vivotek-native only: The AJ-001 is not ONVIF-compliant and will not work with non-Vivotek PTZ cameras or third-party VMS platforms. For mixed-vendor environments, evaluate universal PTZ remotes or dedicated control panels for competing brands.
• Windows and Vivotek firmware required: Deployment on Linux NVRs or ONVIF-only systems is not supported. Confirm your NVR firmware version supports USB joystick input before purchase.
• USB cable length and power: Standard USB 2.0 cables up to 5 meters work reliably; beyond 10 meters, use a powered USB hub to avoid voltage drop. The 100mA budget leaves headroom on modern USB supplies but matters on legacy 500mA-limited ports.
• Button mapping is per-operator: Unlike analog joysticks, programmable buttons require configuration in VSS or the NVR web interface. Operator A's preset map may differ from Operator B's—document button assignments to prevent confusion during shift handovers.
• No wireless option: The AJ-001 is hardwired USB only. For mobile or remote operator scenarios (e.g., field supervisor with portable monitoring device), consider a software-based PTZ interface or separate wireless remote solution.

The Vivotek AJ-001 is the right choice for control-room teams standardized on Vivotek NVR and speed dome infrastructure, where reliable, ergonomic PTZ control justifies a modest hardware investment. Organizations seeking universal multi-brand PTZ support should evaluate ONVIF-compliant remotes instead. For details on full Vivotek controller and accessory offerings, see the Vivotek catalog.
