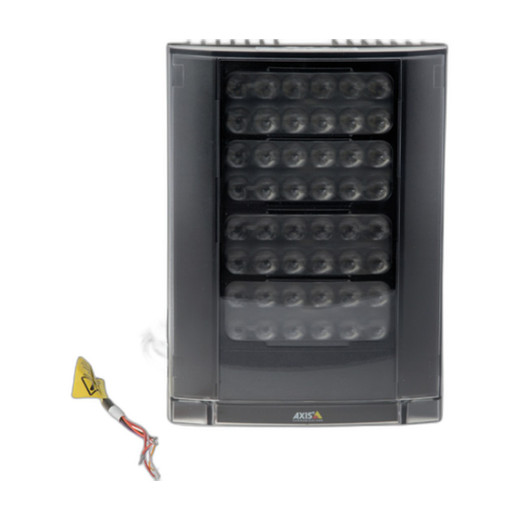

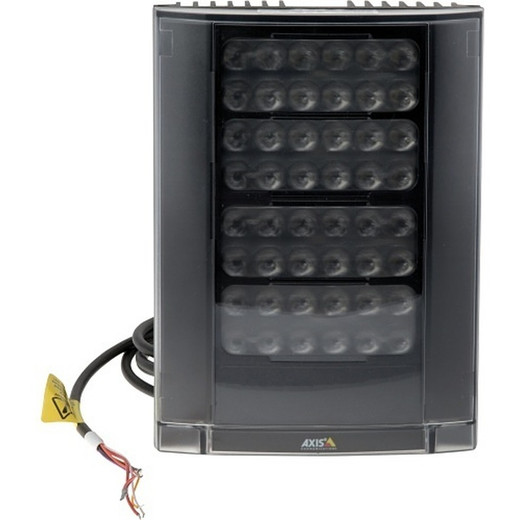

Axis 01214-001 T90D40 IR-LED Illuminator
The Axis 01214-001 is a modular infrared LED illuminator designed to extend Axis IP cameras into complete-darkness surveillance scenarios. It bridges a critical gap in outdoor security: reliable, long-range IR coverage without the cost and complexity of traditional lighting infrastructure. Built for perimeter security, large parking areas, transportation hubs, and industrial sites where ambient light is absent or insufficient.
Key Specifications & Deployment Benefits
- Extended IR Range (105m–500m): Range varies by lens configuration. Narrow 10° lens delivers 500m reach for distant perimeter walls or fence lines; wide 140° lens covers near-field areas at 105m. Eliminates the need to deploy multiple illuminators across a single perimeter section — one unit handles both distance and coverage breadth via interchangeable optics.
- Interchangeable Diverging Lens System: Operators select beam angles between 10° and 140° to match deployment geometry. This modularity cuts inventory costs — one SKU adapts to multiple site configurations instead of stocking narrow-beam and wide-beam variants separately. Field adjustments remain possible without a truck roll.
- Dual AC/DC Power Input (12/24V DC or AC): Eliminates infrastructure lock-in. Connect to a dedicated illuminator power supply, or source 12/24V from compatible Axis camera units running PoE injectors. Reduces wiring runs and power distribution complexity in sprawling outdoor deployments.
- IP66 Environmental Sealing: Full protection against direct rain and dust ingress — no degradation in heavy rain, snow, or dusty industrial yards. Assumes outdoor mounting without additional housing; IP66 is not submersion-proof (don't mount below waterline or in standing water).
- IK09 Impact Resistance: Aluminum and polycarbonate construction withstands 20 joules of impact energy — meaningful in high-traffic areas, industrial sites with mobile equipment, or locations subject to vandalism pressure. Reduces replacement frequency and downtime.
- Operating Temperature Range (-50°C to 50°C): Covers arctic and tropical climates without thermal derating. IR output remains stable across seasonal extremes — no performance loss in deep winter or peak summer heat. Suitable for global deployments without climate-specific variants.
Integration & Compatibility
The T90D40 is engineered as a complement to outdoor IP cameras in the Axis surveillance line. It pairs directly with Axis network cameras that support external illuminator triggering via contact closure or GPIO logic — confirm your camera model supports illuminator wiring before ordering. For organizations building large-scale surveillance networks with extended recording retention, the T90D40 ensures nighttime image quality parity with daytime footage, reducing post-event review delays and improving forensic clarity.
Power distribution simplifies when using Axis illuminator-compatible power supplies (sold separately). Alternatively, PoE injectors feeding 12/24V auxiliary outputs on Axis switches or camera housings can parasitically power the illuminator from the same infrastructure loop as the camera.
When to Choose a Different Approach
If your deployment requires illumination in heavy fog or suspended particulate (industrial smoke, dust storms), IR performance degrades significantly — consider supplementing with visible-spectrum area lighting. For indoor or short-range applications (under 50m), less expensive compact IR illuminators may suffice. For sites already equipped with traditional outdoor lighting, verify whether existing fixtures provide sufficient camera sensor exposure before adding IR.
Typical Deployment Scenarios
- Perimeter fencing and boundary walls in low-light or no-light conditions
- Large parking lots, vehicle marshaling areas, and transportation terminals
- Industrial facilities, warehouses, and loading docks with minimal ambient light
- Remote installations or harsh-climate locations requiring temperature extremes
- 24/7 security operations where nighttime visibility consistency is non-negotiable
Frequently Asked Questions
Q: What is the maximum effective IR range for the Axis 01214-001?
A: Maximum range is 500 meters using the narrow 10° lens configuration. The wide 140° lens delivers approximately 105 meters of effective illumination. Actual range depends on camera sensor sensitivity, lens focal length, and reflective properties of the target surface.
Q: Can I power the T90D40 directly from a PoE camera?
A: Not directly from the camera's PoE input. You can power it from a 12/24V DC auxiliary output on a compatible Axis PoE injector or switch, or use a dedicated illuminator power supply. Confirm your power source provides adequate current for the illuminator's load.
Q: Is the Axis 01214-001 suitable for submersion or water enclosure mounting?
A: No. IP66 provides protection against rain and direct spray, but not submersion. Do not mount below the waterline or inside flooded enclosures. IP67 or higher ratings are required for submerged applications.
Q: What mounting options does the T90D40 support?
A: The illuminator supports wall, ceiling, and pendant mounting via standard brackets (verify bracket compatibility with your installation geometry). Ensure mounting hardware carries an IP66 rating to maintain environmental sealing at connection points.
Q: Does the T90D40 work with non-Axis cameras?
A: The T90D40 is designed for Axis camera integration. Compatibility with third-party cameras depends on GPIO/contact-closure support in the camera and synchronization logic in your VMS or illuminator controller. Consult the camera manufacturer and illuminator documentation before assuming cross-brand operation.
Q: What is the warranty coverage for the 01214-001?
A: Refer to Axis standard warranty terms at the time of purchase. Typical Axis illuminator warranties cover manufacturing defects but not environmental damage, impact damage, or improper installation. Confirm terms with your distributor.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01214-001 addresses a genuine operational constraint in outdoor surveillance: delivering consistent nighttime image quality across large perimeters without the capital expense and maintenance burden of traditional area lighting. Its 500-meter maximum range is particularly valuable — most competing IR illuminators max out at 100–150 meters, forcing multi-unit deployments on larger sites. The interchangeable lens system eliminates inventory fragmentation; a single SKU adapts to both narrow-throw perimeter runs and wide-angle near-field coverage.
Technical Highlights:
- Modular Optics (10°–140° beam angles): A single 01214-001 unit replaces what would otherwise require stocking two separate illuminator SKUs. Field teams can swap lenses on-site without inventory coordination delays. This flexibility is particularly valuable in staged rollouts where initial narrow-beam placements later require supplementary wide-angle fill.
- Dual AC/DC Power Input: Unlike single-voltage illuminators, the T90D40 connects to either 12V or 24V DC, or AC mains. This eliminates power-infrastructure lock-in and simplifies wiring in hybrid deployments (some sites run 12V camera supplies, others 24V or AC). A meaningful operational simplification for multi-site integrators.
- IK09 + IP66 Durability: The combination — 20-joule impact resistance plus full dust/rain sealing — allows deployment in high-traffic or industrial environments without secondary enclosures. Operating range of -50°C to +50°C covers polar and tropical climates without thermal derating or seasonal variants.
Deployment Considerations:
- Power draw isn't specified in available evidence — confirm the illuminator's DC current demand against your power supply's available capacity before ordering. Undersized supplies will cause brownouts or shutdown logic.
- IR performance degrades significantly in heavy fog, snow, or suspended dust. In environments with frequent particulate (industrial smoke, loading dock dust), visible-spectrum supplemental lighting may be necessary regardless of IR illuminator wattage.
- The 01214-001 is purpose-built for Axis cameras with GPIO/contact-closure illuminator wiring. Cross-brand integration requires third-party synchronization controllers — confirm feasibility before specifying on mixed-vendor sites.
The T90D40 is the logical choice for large-perimeter or 24/7 no-light surveillance where cost-per-meter and inventory simplicity matter. Its modular design and wide power input flexibility make it the preferred standard for Axis-standardized integrators managing multiple site types — from industrial yards to remote utility corridors.
