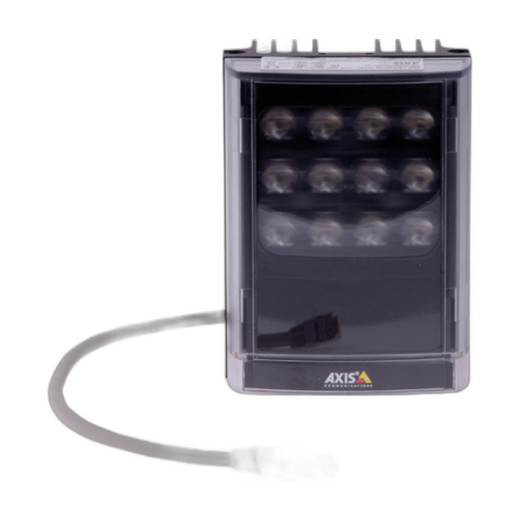

Axis 01211-001 T90D20 IR-LED Illuminator PoE
The Axis 01211-001 is a professional infrared LED illuminator engineered to extend nighttime surveillance range for Axis network cameras without adding infrastructure complexity. Powered entirely by PoE+ (IEEE 802.3at), this compact illuminator eliminates the need for separate electrical runs—a material cost and labor reduction on outdoor deployments where cable management already strains budgets.
Overview
Infrared illumination distance matters when your camera's native low-light performance isn't enough. The T90D20 delivers beam distances from 36 to 144 meters depending on the selected lens, meaning you can illuminate a loading dock or perimeter fence without sacrificing image quality through excessive sensor gain. Four interchangeable diverging lenses (10°, 35°, 60°, 80°) let you match the illuminator's beam angle to your camera's field of view—a field adjustment that saves multiple site visits during commissioning. This is part of the outdoor IP camera ecosystem, and the tight coupling to Axis cameras ensures firmware coordination and simplified support.
Key Features
- PoE+ Power (IEEE 802.3at): Single RJ-45 cable supplies power and eliminates dedicated 120/240VAC runs. On a typical PoE+ switch with 95W total budget, the 01211-001 draws power without conflict, freeing budget for additional cameras or switches downstream.
- Beam Distance 36–144 meters: At 144 meters (472 feet) maximum, this range covers large perimeter areas and vehicle approaches where passive motion detection alone would miss early warning. Shorter 36-meter option available via 80° lens for tighter coverage.
- Four Interchangeable Lenses (10°, 35°, 60°, 80°): Divergence angles match narrow telephoto camera setups (10°) through wide-angle placements (80°). Field-swappable design avoids ordering multiple illuminators or site revisits.
- IP66 Environmental Rating: Dust and water ingress protection handles direct rain, salt spray, and washdown conditions. IK09 impact resistance (40 joules) withstands vandalism and accidental contact in high-traffic areas without housing replacement.
- Operating Temperature −50°C to +50°C: Extended thermal range supports arctic warehouses and desert facilities without thermal cycling failures. No heater or cooling jacket required, reducing bill-of-materials and maintenance overhead.
- Aluminum and Polycarbonate Enclosure: IK09-rated construction resists UV degradation and physical impact. Compact form factor mounts flush to standard camera brackets, minimizing visual profile and wind loading.
- Seamless Axis Integration: Designed for Axis network cameras; firmware-level coordination ensures synchronized operation and unified event logging through AXIS Camera Station or third-party VMS platforms supporting ONVIF.
Deployment Scenarios
Perimeter and Vehicle Approaches: Pair with a wide-angle Axis camera (10° illuminator lens, 144m range) covering parking lots or fence lines where pre-incident visibility is non-negotiable. The 144-meter reach means threats are visible well before they reach the building.
Entry Points and Loading Docks: Narrower 35° or 60° lenses (108–72 meter ranges) focus infrared output on doors and receiving areas where license plate or facial detail matters. Tight beam angle prevents wasted energy on adjacent structures.
Extreme-Climate Facilities: Refrigerated warehouses, mining sites, and arctic security installations benefit from the −50°C to +50°C rating. No separate environmental enclosure or heated supply is needed.
Single-Cable Infrastructure: Facilities without spare electrical conduit or those upgrading legacy analog systems to IP can deploy the 01211-001 on existing or new PoE+ runs. No power budget strain if you're using a PoE injector or 95W+ switch per camera group.
Integration & Compatibility
The 01211-001 is designed explicitly for Axis IP cameras and integrates with any VMS supporting ONVIF event triggering (Milestone XProtect, Genetec Security Center, AXIS Camera Station, etc.). Firmware updates maintain parity with Axis camera releases. For PoE planning, consult your PoE switch specifications to confirm sufficient headroom; a single 95W PoE+ injector can power one illuminator plus one typical Axis box camera.
When to Choose a Different Model
If you require passive infrared without active LED illumination (to avoid detection by thermal imaging), look for passive thermal models in the Axis thermal camera line. If your deployment requires submersible (full underwater) operation beyond IP66, consult Axis's higher-rated enclosure accessories. For indoor low-light scenarios where 144 meters is excessive, consider pairing your camera with Axis Lightfinder or OptimizedIR technology instead.
Frequently Asked Questions
Q: What's the maximum infrared range on the Axis 01211-001?
A: The 01211-001 delivers a beam distance of up to 144 meters (472 feet) with the 10° diverging lens. Wider lenses reduce effective range: 35° lens reaches ~108 meters, 60° reaches ~72 meters, and 80° reaches ~36 meters. Choose the lens that matches your camera's field of view and target coverage distance.
Q: Can the Axis 01211-001 mount on non-Axis cameras?
A: The 01211-001 is designed and tested for Axis network cameras. While mechanical mounting may be possible, firmware-level coordination and synchronization are not guaranteed on third-party cameras. For best results and warranty coverage, pair it with Axis cameras.
Q: Does the 01211-001 work in cold climates?
A: Yes. The operating temperature range extends from −50°C to +50°C (−58°F to +122°F), making it suitable for arctic warehouses, mining sites, and northern perimeter deployments without additional thermal management or heated enclosures.
Q: How much power does the 01211-001 consume?
A: The 01211-001 is powered entirely by PoE+ (IEEE 802.3at). Specific wattage is not specified in the datasheet, but PoE+ supplies up to 30W per port, allowing simultaneous operation with a typical Axis box or turret camera on the same switch without exceeding 95W per switch port allocation.
Q: What's included in the box?
A: Package contents are not detailed in the available documentation. Contact the manufacturer or your specialty reseller for a complete list of included accessories (mounting brackets, lens wrench, weatherproof connectors, etc.).
Q: Is the Axis 01211-001 weather-sealed for direct rain?
A: Yes. The IP66 rating means water spray and dust will not penetrate the enclosure. However, full submersion (IP67 or higher) is not supported. For direct washdown or splash scenarios at ground level, IP66 is sufficient; for overhead rain or moisture-heavy environments, the 01211-001 is rated for those conditions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01211-001 solves a real integration challenge: extending surveillance range without adding infrastructure burden. The PoE+ power model eliminates the cost and labor of dedicated electrical runs—a meaningful reduction on multi-camera outdoor deployments where every meter of conduit and every breaker circuit costs money and time. The 144-meter maximum beam distance (with the 10° lens) addresses the gap between passive camera low-light capability and the coverage distances required for early-threat detection at perimeters and vehicle approaches.
Technical Highlights:
- Four Interchangeable Lenses (10°, 35°, 60°, 80°): Field-adjustable beam angles eliminate the guesswork of selecting a fixed-divergence illuminator. Match the lens to your camera's actual field of view during commissioning without ordering multiple units or site revisits.
- IP66/IK09 Enclosure: The combination of dust/water ingress protection (IP66) and 40-joule impact resistance (IK09) means this illuminator survives both salt spray and vandalism without housing replacement—a material advantage in high-traffic or corrosive environments.
- −50°C to +50°C Operating Range: Extended thermal tolerance eliminates the need for heated enclosures or thermal cycling preventatives. Arctic warehouses and desert installations deploy it as-is without accessories.
Deployment Considerations:
- PoE+ power budgeting: confirm your switch or injector supplies at least 30W available per port if you're combining the 01211-001 with a power-hungry Axis PTZ or multi-sensor camera.
- The 01211-001 is optimized for Axis cameras. While ONVIF compatibility exists, firmware-level synchronization (event correlation, coordinated IR on/off) is guaranteed only on Axis camera pairs.
For integrators deploying Axis IP camera systems beyond conventional indoor or well-lit outdoor ranges, the 01211-001 (01211 001 when searching datasheets) is the default choice. The lens interchangeability and PoE+ power model reduce both upfront capex and ongoing commissioning overhead—a rare combination in infrared illuminators.
