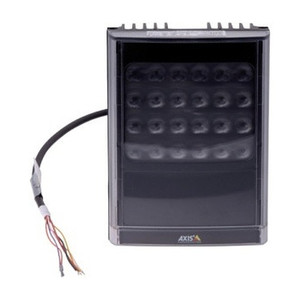

Axis 01210-001 T90D20 IR-LED Illuminator AC/DC
The Axis 01210-001 is a professional infrared lighting module designed to extend night vision capability for Axis IP cameras operating in zero-light or low-light conditions. Built for unattended outdoor deployment, the T90D20 delivers flexible illumination across a 36m to 144m range through four interchangeable lens options, eliminating the need to stock multiple illuminator models for different coverage scenarios.
Key Features
- Interchangeable IR-LED Lenses (10°, 35°, 60°, 80°): Swap lens modules to match your deployment geometry — narrow 10° beams concentrate infrared output for distant perimeter runs (up to 144m), while wider 80° angles deliver broad coverage for closer-range applications. This modularity means a single 01210-001 unit covers narrow and wide scenarios without additional hardware purchases.
- IP66 & IK09 Environmental Protection: IP66 rating means the illuminator withstands direct rain, dust, and high-pressure water jets without performance loss. IK09 impact resistance protects against physical vandalism and accidental strikes — critical for unattended fence-line or remote-site installations where replacement cycles are expensive.
- Dual AC/DC Power Input (12/24V DC or AC): Supports both alternating and direct current, eliminating the need for separate power conditioning in mixed electrical environments. Integrates cleanly with backup power supplies, UPS systems, and solar charging rigs common in remote warehouse and perimeter deployments.
- NEMA 4X Corrosion Rating: Beyond IP66, NEMA 4X certification delivers salt-spray and chemical-exposure resistance. Deploy this illuminator on coastal installations, near agricultural sites, or industrial facilities without concern for electrolytic corrosion.
- Extreme Temperature Operating Range (-50°C to 50°C): The T90D20 maintains performance across arctic, tropical, and high-temperature industrial environments. No thermal derating, no seasonal performance fluctuation — a single unit handles year-round surveillance in any climate zone.
- Aluminum & Polycarbonate Construction: Durable lightweight materials provide corrosion resistance and thermal stability. Polycarbonate lens housings resist UV degradation over multi-year outdoor service cycles.
Integration & Compatibility
The 01210-001 pairs with any Axis outdoor IP camera equipped with infrared-capable sensors — including thermal, night-vision, and high-sensitivity models. Synchronize illuminator activation with camera trigger inputs or configure standalone timers for 24/7 operation. For 24/7 multi-camera surveillance, coordinate illuminator placement with camera mounting heights and focal lengths to eliminate washout and shadow zones.
Deployment Context
Primary use cases include perimeter security (fence-line monitoring), parking lot and yard surveillance, industrial warehouse exterior protection, and transportation hubs requiring extended-range night coverage. The 144m maximum beam distance aligns well with 5MP+ megapixel camera capabilities — the illuminator won't become a resolution bottleneck at long range, and narrow lens options concentrate light efficiently for narrow fields of view common in PTZ and telephoto lens installations.
When to Consider a Different Model
If your deployment requires illumination distances exceeding 144m, or if you need color reproduction in near-total darkness (infrared illuminators produce monochrome output), evaluate higher-powered standalone LED work lights or hybrid white-light/infrared solutions from the Axis portfolio. For indoor vault or equipment-room applications where ambient lighting is already present, an illuminator may be unnecessary — confirm minimum illumination requirements with your camera's datasheet before purchase.
Frequently Asked Questions
Q: What is the maximum IR projection distance of the Axis 01210-001?
A: The T90D20 achieves a maximum range of 144m (472 ft) with the 10° narrow-beam lens, concentrating infrared output for distant perimeter runs. Wider 35°, 60°, and 80° lenses deliver proportionally shorter ranges (approximately 106m, 65m, and 36m respectively) but cover broader coverage areas.
Q: Can the 01210-001 operate in wet or salty environments?
A: Yes. The IP66 rating provides full protection against rain and high-pressure water jets, while NEMA 4X certification adds salt-spray and chemical-exposure resistance — ideal for coastal installations and industrial sites near chemical or agricultural operations.
Q: What power options does the Axis 01210-001 support?
A: The illuminator accepts 12V or 24V DC, or AC mains power. This flexibility simplifies installation in mixed electrical environments and enables integration with backup power systems or solar charging solutions.
Q: Is the 01210-001 compatible with all Axis network cameras?
A: The T90D20 works with any Axis IP camera equipped with infrared-capable sensors (thermal, night-vision, or high-sensitivity models). Confirm your camera's IR trigger or power-sync capabilities with its datasheet to ensure proper synchronization.
Q: What are the operating temperature limits for the T90D20?
A: The 01210-001 operates reliably from -50°C to 50°C (-58°F to 122°F). No thermal derating or seasonal performance adjustments are needed — deploy confidently in arctic, tropical, and temperate climates.
Q: Can I swap lenses on the 01210-001 in the field?
A: Yes. The four interchangeable lens modules (10°, 35°, 60°, 80°) allow you to reconfigure the illuminator's beam pattern on-site, adapting to changing coverage needs without purchasing additional hardware.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01210-001 T90D20 is a mandatory component for any outdoor infrared-camera deployment operating in low-light or no-light conditions. Its modular lens design — four swappable optics delivering 10°, 35°, 60°, and 80° beam angles across a 36m to 144m range — eliminates the supply-chain headache of stocking multiple illuminator SKUs. A single 01210-001 unit adapts to narrow perimeter runs or broad facility coverage through simple mechanical swaps, a real advantage when retrofit budgets are tight.
Technical Highlights:
- 144m Maximum Beam Distance: Aligns directly with 5MP+ camera resolution — the illuminator won't bottleneck image quality at range. Narrow 10° optics concentrate infrared output efficiently, delivering usable illumination to telephoto lenses and narrow-field PTZ setups common in perimeter security.
- Dual AC/DC Power Input: Accepts 12/24V DC or AC mains, simplifying integration into legacy electrical infrastructure. Failover capability to backup power supplies means the 01210-001 continues operating during mains outages — critical for unattended remote sites where daylight recovery takes hours.
- IP66 + NEMA 4X Rating: IP66 handles rain and dust ingress; NEMA 4X adds salt-spray resistance for coastal and chemical-exposure environments. IK09 impact rating protects against vandalism and accidental mechanical stress — fewer field callbacks, longer mean-time-between-failures.
- -50°C to 50°C Operating Range: No thermal derating across arctic-to-tropical climates. A single deployment specification works for Alaska warehouses, Middle East border crossings, and tropical port facilities.
Deployment Considerations:
- Coordinate illuminator lens selection and mounting height with your camera's focal length and minimum illumination spec. Mismatched optics create washout (too narrow a lens, too close) or insufficient light (too wide a lens, too distant). Request a site survey before final lens assignment.
- The 01210-001 generates infrared only — no visible light output. If your installation requires manual visual inspection or night-shift personnel safety lighting, pair this illuminator with a separate white-light fixture or confirm that IR-only output satisfies your security perimeter requirements.
- For large multi-camera perimeter systems, synchronize multiple 01210-001 units to a single trigger source or timer to avoid power surges on shared electrical runs. Stagger activation if total draw exceeds your facility's available current.
The Axis 01210-001 is the standard reference for modular outdoor infrared illumination — deploy it on fence-line perimeter runs, warehouse yard corners, and remote transit choke points where 24/7 zero-light surveillance is mandatory and climate resilience is non-negotiable.
