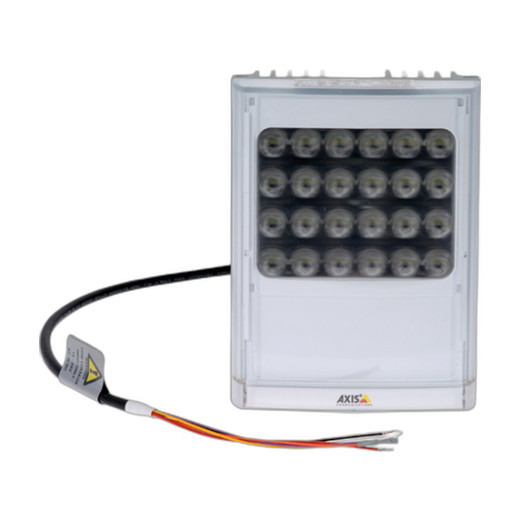

Axis 01217-001 T90D35 W-LED Illuminator AC/DC
The Axis 01217-001 is a professional-grade white LED illuminator engineered to extend nighttime surveillance reach and image clarity for Axis network cameras in low-light and complete darkness scenarios. Built for outdoor durability and deployment flexibility, the T90D35 combines high-intensity illumination with multiple beam angles and dual power inputs—reducing installation friction in retrofit and new-build scenarios alike.
Key Features
- Four interchangeable diverging lenses (10°, 35°, 60°, 80°): Match beam angle to your coverage zone. Narrow 10° and 35° angles concentrate light over 100–180 meters for perimeter gates or long-distance checkpoint monitoring; wider 60° and 80° angles suit general-area illumination over parking lots or facility entrances. Swapping lenses takes seconds—no tools required.
- Adjustable beam distance 35m to 180m: The spread directly correlates to lens choice; a 10° lens delivers 180m range while an 80° lens covers 35m. This flexibility means you size illumination to your actual camera sightlines instead of over-specifying or under-delivering.
- Dual AC/DC power input (12/24 V DC or AC): Eliminates the need for a separate power supply in most installations. Connect directly to existing 12/24 V DC infrastructure or low-voltage AC wiring. Reduces bill-of-materials cost and simplifies wiring loops, especially in retrofit scenarios where power routing is already established.
- IP66 weatherproof rating: Direct rain, spray, and dust ingress won't degrade performance. Skip this unit only if your installation requires full submersion protection (IP67/IP68); for all exposed outdoor and semi-exposed mounting, IP66 is the practical floor.
- IK09 impact-resistant aluminum and polycarbonate construction: Withstands accidental strikes and vandal attempts without housing fracture or LED damage. Aluminum heat sink ensures thermal stability under continuous operation, critical for 24/7 deployments in hot climates.
- Extended operating temperature range –50°C to 50°C (–58°F to 122°F): Performs in arctic perimeter sites and desert warehouse yards without thermal shutdown. No seasonal de-rating; output remains consistent from freeze to heat extremes.
Integration and Compatibility
The 01217-001 pairs with outdoor IP camera models that support external illuminator synchronization or manual triggering. Verify camera connector compatibility and illuminator placement relative to camera lens axis before purchase—incorrect positioning can cause lens glare or uneven field coverage. Most integrators mount the illuminator offset or above the camera to avoid backflash into the lens.
Deployment Context
The T90D35 excels in low-light perimeter and area surveillance where fixed-position illumination meets budget and power constraints. Parking facilities, warehouse or shipping-dock access points, and gated entry zones all benefit from the extended throw distance and interchangeable lens flexibility. Remote or off-grid sites with DC power generation (solar or battery) find the 12/24 V DC input particularly valuable—no transformer required.
When to Choose a Different Model
If your deployment requires wide, diffuse illumination across very short distances (under 10 meters) or needs narrow beams beyond the 10° option, evaluate alternative illuminators in the Axis portfolio. Submersion-rated sites (fountains, water-hazard perimeters, or washdown zones) require IP67 or higher—confirm with the illuminator family datasheet. For applications demanding color rendering fidelity or reduced light pollution (environmentally sensitive areas), consider warm-color LED variants if offered.
Frequently Asked Questions
Q: Can the 01217-001 be used with any Axis camera?
A: The T90D35 is designed for Axis cameras that support external illuminator integration. Consult the specific camera model's datasheet to confirm illuminator synchronization or external trigger compatibility.
Q: What is the power consumption of the 01217-001?
A: The datasheet specifies power draw under typical operation; refer to the Axis 01217-001 documentation for exact wattage at 12 V DC, 24 V DC, and AC inputs.
Q: Is the 01217-001 suitable for coastal or salt-spray environments?
A: The IP66 rating protects against salt spray ingress, but extended salt-fog exposure may corrode unpainted aluminum over time. For harsh marine perimeters, consider conformal coating or periodic inspection.
Q: Can I dim or modulate the LED output?
A: The 01217-001 delivers fixed-intensity output. If dimming or smart on/off scheduling is required, integrate an external relay or dimming controller into the power supply circuit.
Q: What mounting hardware is included?
A: Refer to the product packaging or datasheet for exact contents; standard mounting brackets and fasteners are typically provided, but confirm before site planning.
Q: What is the warranty on the 01217-001?
A: Axis products typically carry manufacturer warranty—consult the professional seller or Axis support for warranty period and coverage specifics.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01217-001 is engineered for professional outdoor surveillance where nighttime image clarity is non-negotiable and power infrastructure is unpredictable. The four interchangeable lens options—10°, 35°, 60°, and 80°—provide exceptional deployment flexibility. Narrow 10° and 35° angles suit focused perimeter or gate monitoring where you need to throw light 100+ meters; 60° and 80° angles accommodate broader parking lots or facility entrances with shorter effective range. The dual AC/DC power input is a significant installation advantage, particularly in retrofit scenarios where the integration team may be working with legacy 12/24 V DC infrastructure or low-voltage AC wiring already in place.
Technical Highlights:
- IP66 weatherproof + IK09 impact rating: Consecutive rain, direct spray, dust, and vandal strikes won't compromise the housing or LED. This positions the 01217-001 as the right choice for high-vandalism risk areas (open-air perimeters, public parking, remote industrial sites) where lighter-duty units fail within months.
- 180-meter maximum throw distance: Achievable with the 10° lens at rated intensity. This extended sightline is particularly valuable for large-scale outdoor environments—long driveway approaches, fence perimeter edges, or warehouse shipping yards where you need to detect activity or objects at range before they reach the critical zone.
- Operating temperature range –50°C to 50°C: No thermal de-rating between extremes. Arctic perimeter deployments (Canadian, Nordic, Siberian sites) and desert warehouse installations (Southwest US, Middle East, North Africa) both operate at full output. The aluminum heat sink ensures consistent lumens across the temperature band.
Deployment Considerations:
- Camera mounting and illuminator placement: Position the illuminator offset from the camera lens (typically above or to the side) to avoid backflash glare into the image sensor. Improper placement can wash out the image quality you're trying to improve.
- Lens selection is project-critical: Choose the wrong angle and you either waste illumination coverage or leave blind spots. Walk the sightline and measure distance before finalizing lens choice.
- AC power circuits: If using AC input in wet environments, ensure the power supply and junction box are properly rated and sealed; wet environments + mains voltage demand respect for safety codes.
The 01217-001 is the go-to choice for integrators and facility managers who need to add reliable nighttime surveillance to perimeter security, vehicle access control, and warehouse or industrial facility monitoring in harsh climates without redesigning power distribution. When paired with an Axis outdoor IP camera supporting external illuminator trigger, it measurably improves analytics accuracy and nighttime forensic image quality.
