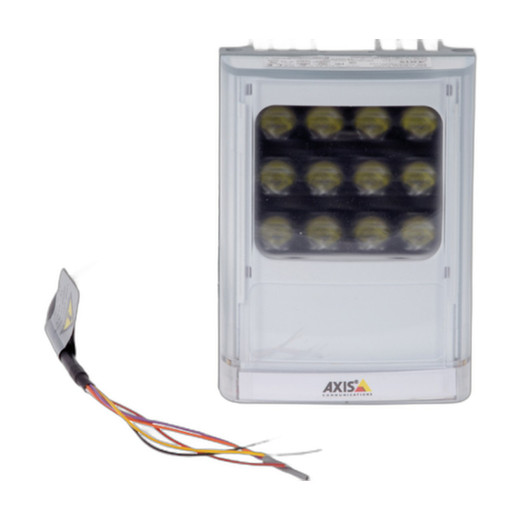

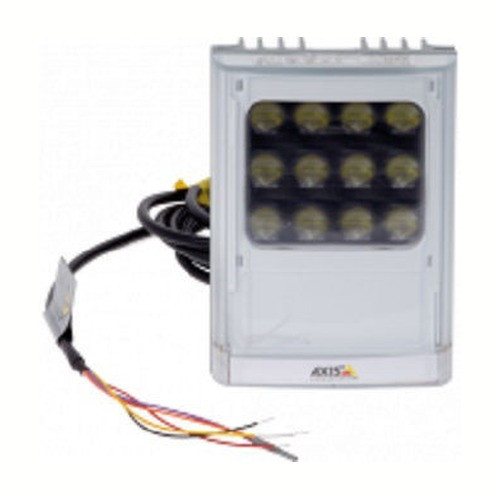

Axis T90D25 W-LED Illuminator AC/DC
Axis T90D25 W-LED Illuminator AC/DC
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: 01215-001
UPC: 7331021062214
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 3-year warranty
Write a Review 3% OFF
Axis

Axis T90D25 W-LED Illuminator AC/DC - 01215-001

White LED illuminator with 4 interchangeable angles, 25–110m range

$509.00 $493.99 SAVE $15
Special Order
Ships in 2-3 Weeks

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Axis T90D25 W-LED Illuminator AC/DC - 01215-001

$509.00
$493.99
Add to Cart

Overview

SKU: 01215-001
UPC: 7331021062214
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 3-year warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Axis 01215-001 T90D25 W-LED Illuminator

Overview

The Axis 01215-001 is a white-LED illuminator designed to extend effective surveillance range in low-light and nighttime conditions. It delivers focused or wide-area illumination across 25–110 meters (80–360 feet) depending on selected beam angle, making it suitable for perimeter security, parking areas, warehouses, and industrial sites where ambient light is insufficient for evidence-grade video. The unit supports both 12/24V DC and AC power supplies, simplifying integration into existing electrical infrastructure without dedicated PSU deployment.

Compatibility

The T90D25 is designed for use with Axis network cameras requiring supplemental illumination in darkness. Confirm mounting interface and power availability on your specific camera model before purchase. The illuminator uses a pendant mount configuration (probe-dependent) and requires a single 3/4-inch opening for installation. Verify electrical compatibility: 24V DC operation is standard; AC power option accommodates standard mains feed in regions where DC distribution is unavailable.

Installation Notes

Installation requires a single 3/4-inch probe-dependent vessel opening for the sensing element. The compact one-piece design eliminates complex wiring. Operating temperature range is -50°C to 50°C (-58°F to 122°F), suitable for extreme climates. IP66 and NEMA 4X ratings confirm dust and moisture sealing; IK09 impact resistance protects against vandalism in high-traffic or high-risk environments. No routine maintenance is required — the all-electronic design has no moving parts or expendable components.

What's in the Box

  • 1x Axis T90D25 W-LED Illuminator unit
  • Mounting hardware (probe-dependent configuration)
Expert Analysis
Specifications
Compatible With: Axis
Form Factor: W-LED Illuminator
Material: IK09 Impact-Resistant Aluminum and Polycarbonate
IP Rating: IP66
Vandal Rating: IK09
Operating Temperature: -50°C to 50°C (-58°F to 122°F)
Power Type: 12/24V DC or AC
Beam Angles: ['10°', '35°', '60°', '80°']
Beam Distance: 25m to 110m (80ft to 360ft)
NEMA Rating: NEMA 4X
Led Type: White LED
Housing Color: White
Warranty: 3-year warranty
Mount Type: Pendant
Mounting: (Probe Dependant)
mount_type: Pendant
Voltage: 24V DC
Length: 360 feet
Color: White
Type: T90D25 W-LED Illuminator AC/DC
IP_Rating: IP66 / NEMA 4X
IK_Rating: IK09
Operating_Temp: -50°C to 50°C (-58°F to 122°F)
