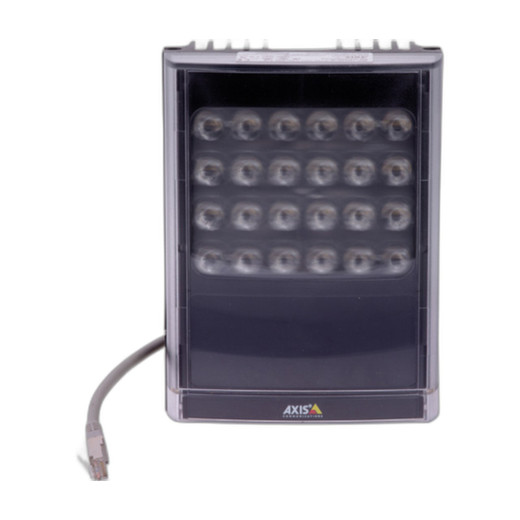

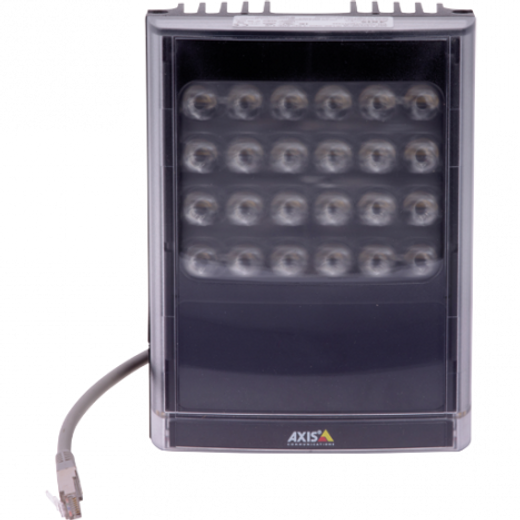

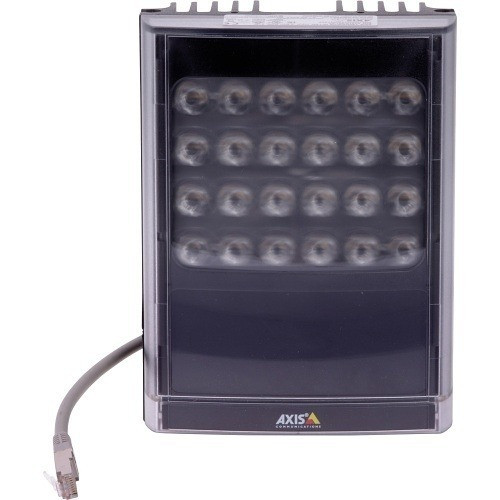

Axis 01213-001 T90D30 IR-LED Illuminator PoE
The Axis 01213-001 is a PoE+-powered infrared illuminator engineered to extend the effective range of network-connected thermal and visible-light cameras into complete darkness and extremely low-light environments. Rather than relying on camera-mounted IR LEDs—which are typically limited to 10–20 meters—this dedicated illuminator delivers uniform infrared coverage from 70 to 350 meters depending on lens selection, making it practical for perimeter fences, expansive parking lots, runway monitoring, and critical infrastructure where darkness would otherwise blind your surveillance system.
Key Features
- PoE+ Power (802.3at): Draws power directly from your network camera's PoE+ port or an enterprise PoE+ switch. Eliminates the need to run separate 24VAC or 12VDC power cables and conduit to outdoor locations—a significant cost and labor savings on large deployments. Maximum draw is well within PoE+ budgets, so you won't trigger power-sharing warnings on managed switches.
- Four Interchangeable Beam Angles (10°, 35°, 60°, 80°): Swap lens modules without replacing the entire fixture. A 10° lens concentrates IR output for distant perimeter zones (70–350m range); an 80° lens spreads illumination for nearby loading docks or parking areas (70–120m effective distance). This modularity eliminates the need to stock multiple illuminator models across a mixed-camera deployment.
- Extended Infrared Range (70–350 meters): At 350 meters, this unit covers ground distances typical of airport perimeter security, industrial quarry monitoring, and border checkpoint surveillance. At 70 meters minimum, it handles standard warehouse and parking-lot scales. Range scales inversely with beam angle—narrow angles reach farther into darkness.
- IP66 Environmental Sealing: Complete protection against dust and high-pressure water jets (rain, sprinkler overspray, hose wash-down). Does not require additional weatherproof housing or enclosure. Suitable for direct outdoor mounting on poles, walls, or overhead structures without supplemental protection.
- IK09 Impact Resistance (aluminum and polycarbonate construction): Withstands vandalism—kicks, thrown objects, and accidental tool strikes that would shatter plastic-bodied illuminators. Rated to absorb 20-joule impacts (equivalent to a 5 kg weight dropped from 40 cm). Valuable in high-traffic or publicly accessible areas where durability matters more than cost.
- Extreme Temperature Operation (-50°C to +50°C / -58°F to +122°F): Functions reliably in arctic climates (remote monitoring stations, border crossings in northern regions) and tropical heat (equatorial industrial sites). No thermal derating or seasonal performance loss across this range. PoE+ delivery is maintained regardless of ambient temperature.
Integration and Compatibility
The 01213-001 pairs with Axis IP cameras and integrates into standard network video recorder (NVR) and video management system architectures. Because it draws power from PoE+, deployment requires either a PoE+-capable network camera port or a managed PoE switch with sufficient power budget. For multi-camera outdoor sites, a dedicated PoE+ injector or switch module isolates IR illuminator loads from camera power, preventing brownouts on the PoE circuit.
The illuminator requires line-of-sight to the monitored area—install it adjacent to or above the camera it serves. Mounting brackets (sold separately) accommodate wall, pole, or pendant installation. The interchangeable lens design allows field swaps; no factory reconfiguration required.
When to Choose a Different Approach
If your deployment requires constant IR coverage across dozens of outdoor cameras, evaluate whether built-in camera IR and this supplementary illuminator combination is more cost-effective than a full thermal imaging camera platform, which operates independently of visible light. For indoor low-light scenarios (parking garages, warehouses), a single higher-megapixel low-light IP camera with native sensitivity may deliver better cost-per-installation than illuminator + standard camera pairs. If your facility operates exclusively in daylight or has adequate ambient street lighting, dedicated IR illumination adds unnecessary expense.
Planning Your Deployment
Before purchase, confirm that your network video recorder or PoE switch has available ports and power headroom. A single PoE+ port typically allocates 30 watts; the 01213-001 consumes a fraction of that, leaving budget for the paired camera. If mounting on steel poles or metal structures, request surge-protected network cabling to guard against lightning transients common in outdoor installations. Test lens selection on a smaller initial installation before rolling out across an entire facility—what appears adequate from a CAD drawing may require a 60° lens instead of the specified 35° in field conditions.
Frequently Asked Questions
Q: What is the maximum infrared range of the 01213-001?
A: The T90D30 delivers infrared illumination from 70 to 350 meters, depending on the selected lens module. The narrow 10° beam reaches the full 350-meter distance; wider angles (35°, 60°, 80°) sacrifice range for coverage width, typically effective to 100–150 meters.
Q: Can I swap lens modules in the field, or does the unit need to return to the factory?
A: The 01213-001 features interchangeable lens assemblies. You can change beam angles on-site without disassembling the illuminator body or interrupting its power connection.
Q: Does the 01213-001 require a dedicated power supply, or does PoE+ from my camera work?
A: The unit is powered entirely via PoE+ (IEEE 802.3at). Connect it directly to a PoE+-capable camera port or a managed PoE+ switch. No separate 24VAC transformer or 12VDC supply is needed.
Q: Will the illuminator work in freezing conditions or extreme heat?
A: Yes. The 01213-001 operates reliably from -50°C to +50°C (-58°F to +122°F). Performance and lifespan remain consistent across this entire range without thermal derating.
Q: What is the impact rating, and why does it matter?
A: The unit carries an IK09 rating, meaning it can withstand 20-joule impacts (equivalent to a 5 kg weight dropped from 40 cm). This is substantially higher than typical outdoor accessories and protects against vandalism, thrown objects, and accidental strikes in high-traffic areas.
Q: Is IP66 sufficient for my outdoor location, or do I need IP67?
A: IP66 protects against dust and high-pressure water jets, making it suitable for rain, sprinkler overspray, and routine wash-down. IP67 adds brief submersion protection (up to 1 meter for 30 minutes). Choose IP66 for standard outdoor weather; upgrade to IP67 only if your site requires temporary flooding resistance or direct submersion scenarios.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01213-001 T90D30 solves a real problem in 24/7 outdoor surveillance: camera-mounted IR LEDs simply don't reach far enough for perimeter security or large open areas. By centralizing infrared output into a dedicated, PoE+-powered illuminator, this unit eliminates the need for separate power infrastructure while delivering illumination to 350 meters—a capability that matters enormously on industrial sites and border checkpoints where darkness would otherwise create surveillance blind spots.
Technical Highlights:
- PoE+ Integration: Drawing power from a single PoE+ port removes the burden of field-running dedicated 24VAC or 12VDC circuits to remote outdoor locations. On a 30-watt PoE+ budget per port, this unit consumes a fraction of available capacity, leaving headroom for paired cameras and allowing dense multi-camera outdoor clusters without switch overload.
- Modular Optics (10°–80° lenses): Swappable lens modules let you optimize beam angle per installation without inventory overhead. A 10° lens reaches the full 350-meter range—ideal for distant perimeter fences; an 80° module prioritizes coverage width over distance, fitting parking lots and loading zones where cameras are closer. No need to stock three or four separate illuminator models.
- IK09 + IP66: This combination is uncommon at this price point. IK09 impact resistance (20 joules) handles vandalism that would crack cheaper plastic units; IP66 ensures water and dust ingress won't degrade performance. The aluminum-and-polycarbonate body is built for active-use environments, not just light-duty fence-line installations.
- -50°C to +50°C Operating Range: Wide temperature tolerance eliminates thermal derating and seasonal performance loss. Arctic border stations and equatorial quarry sites both run this unit at full output—a hidden advantage on geographically diverse enterprise deployments.
Deployment Considerations:
- Lens Selection Discipline: The stated 70–350-meter range depends entirely on which module you install. In the field, a 60° lens often outperforms a specified 35° when cameras are closer than expected. Conduct a site trial before rolling out across multiple locations—don't assume the CAD layout will match real-world sight lines.
- PoE+ Budget Management: Confirm your switch or camera PoE+ port has available capacity. A single illuminator is modest (well under 15 watts), but stacking three units on a single PoE+ circuit may trigger power-sharing or brownout conditions. Isolate illuminator power from critical camera channels using a dedicated managed switch or injector.
- Mounting Rigidity: Install the 01213-001 on solid pole or wall mounts; vibration from wind or nearby machinery can degrade beam focus over time. Surge-protected RJ-45 cabling is mandatory in lightning-prone regions—even PoE-delivered equipment needs transient protection.
The 01213-001 is the right choice for enterprises building outdoor surveillance in large open areas (airport perimeters, quarries, logistics yards, border zones) where camera-native IR falls short and thermal imaging is cost-prohibitive. Its PoE+ power model, modular optics, and rugged construction make it the baseline for serious nighttime coverage above 100-meter distances.
