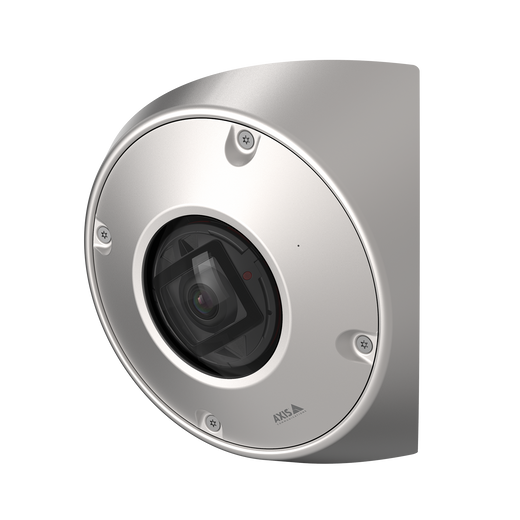

The Axis Q9612-SLV Vandal Resistant Compact Network Camera, with model number 01766-001, is engineered for high-security environments requiring robust surveillance solutions. This camera delivers high-resolution imaging at 2304 x 1728, ensuring that every detail is captured with clarity. The wide-angle lens, with a 2.4mm fixed focal length, provides an expansive 125° horizontal field of view, making it ideal for comprehensive coverage of large areas. The camera's advanced 1/2.7" Progressive Scan RGB CMOS sensor enhances its low-light performance, ensuring that critical details are not missed even in minimal lighting conditions. The Digital PTZ feature allows for focused monitoring of specific areas, enhancing the camera's utility in dynamic surveillance scenarios.
Designed to withstand the rigors of challenging environments, the Axis Q9612-SLV boasts an IP69 rating for exceptional protection against dust and water ingress, making it suitable for outdoor applications. The camera's IK10+ impact resistance and IP6K9K rating for high-pressure, high-temperature washdowns, coupled with NEMA4X certification, attest to its durability and resilience. These features, combined with efficient video compression technologies like H.265 and H.264, ensure that the camera delivers not only high-quality video but also optimizes bandwidth and storage usage. The camera's integration capabilities, supported by an open API, and its ease of installation with Power over Ethernet, make it a versatile choice for a wide range of surveillance applications, from industrial settings to public spaces.
Key Features:
-
High-Resolution Imaging: The Axis Q9612-SLV delivers stunning resolution at 2304 x 1728, ensuring crystal-clear surveillance footage.
-
Wide-Angle Lens: With a 2.4mm Fixed lens, this camera offers a wide horizontal field of view at 125°, capturing more of your surroundings in a single frame.
-
Advanced Sensor: Featuring a 1/2.7" Progressive Scan RGB CMOS sensor, this camera excels in low-light conditions, ensuring you don't miss critical details.
-
Digital PTZ: The Digital Pan-Tilt-Zoom (PTZ) feature allows you to zoom in on specific areas of interest digitally, enhancing surveillance capabilities without moving parts.
-
Efficient Video Compression: Supporting H.265, H.264, and JPEG (MJPEG) video compression, this camera optimizes bandwidth and storage while maintaining high-quality video.
-
Rugged Environmental Rating: With an exceptional IP69 rating, IK10+ impact resistance, IP6K9K for high-pressure, high-temperature washdowns, and NEMA4X certification, this camera thrives in challenging conditions.
-
Open Integration: The Axis Q9612-SLV is designed for open integration with various surveillance systems, providing flexibility and compatibility.
-
Power Over Ethernet: Enjoy simplified installation with Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, drawing power and data from a single cable.
-
Wide Operating Range: This camera operates seamlessly in temperatures ranging from -4°F to 122°F, ensuring reliable performance in extreme weather conditions.
-
On-Board Storage: The built-in microSD/SDHC/SDXC slot offers convenient on-board storage solutions.
-
Audio Input: Choose from multiple audio input options, including Mic Input or Line Input, Line Output, and a Built-in Microphone (removable), ensuring comprehensive audio capabilities.
Compatibility:
The Axis Q9612-SLV is designed for open integration, providing compatibility with various surveillance systems through its API.
Specifications:
- Resolution: 2304 x 1728
- Lens: 2.4mm Fixed
- Sensor: 1/2.7" Progressive Scan RGB CMOS
- Field of View: Horizontal - 125°
- Angle Adjustment: Digital PTZ
- Video Compression: H.265/ H.264/ JPEG (MJPEG)
- Environmental Rating: IP69, IK10+, IP6K9K, NEMA4X
- API: Open Integration
- Power Supply: (PoE) IEEE 802.3af/802.3at Type 1 Class 3, Typical 4.7 W, max 10.8 W
- Power Over Ethernet: Yes
- Operating Conditions: -4°F to 122°F
- On-Board Storage: Built-in microSD/SDHC/SDXC slot
- Audio Input: Mic Input or Line Input, Line Output, Built-in Microphone (removable)
Axis Q9612-SLV Package Contents:
- Installation guide
- Windows® Decoder 1-user License
- AVHS Authentication Key
- Axis Device Microphone A
- Axis Connector A 4–pin 2.5 straight
- Resistorx® 20 bit
- Cable Gaskets
