Axis M4308-PLE 12MP Panoramic Outdoor Dome Camera - 02100-001

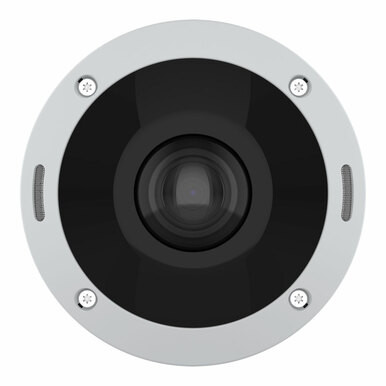

Axis 02100-001 M4308-PLE 12MP Panoramic Outdoor Dome Camera

The Axis 02100-001 delivers full 360° panoramic surveillance without PTZ complexity, moving parts, or blind spots. At 12MP with panoramic output (2880×2880), this outdoor dome captures wide-area perimeter detail in a single fixed installation. The combination of Lightfinder technology and Forensic WDR handles real outdoor challenges—sunrise/sunset transitions, mixed sun and shadow—where conventional cameras struggle to hold both highlight and shadow detail simultaneously. PoE power and Zipstream compression make it network-friendly for large-scale deployments.

Key Features

• 12MP Panoramic Sensor (2880×2880): Delivers full 360° coverage with 183° horizontal and vertical field of view. One camera replaces 3–4 traditional fixed cameras on perimeter sweeps, reducing installation labor and simplifying cable runs.
• Lightfinder Technology: Captures true color detail at 0.19 lux (near-darkness) without relying on IR alone. Critical for night shift security where facial recognition or license plate capture matters—IR washout isn't an option.
• Forensic WDR (Wide Dynamic Range): Intelligently balances overexposed bright areas and dark shadows in the same frame. Parking lots with direct sunlight and building shadows, or industrial sites with high-bay lighting, stay usable for forensic review without post-processing.
• OptimizedIR with Integrated IR Illumination (IK09 rated): 850nm infrared maintains image clarity and color saturation at night. The robust IR window (impact-rated separately) resists vandalism and weathering. IR output scales intelligently to avoid washout on nearby objects.
• PoE Power (802.3af): Draws under the 13W 802.3af budget, so it won't overload standard PoE switches. No separate power supply installation required—reduces junction boxes and simplifies outdoor cable management.
• Zipstream H.264 Compression: Bandwidth reduction up to 50% versus standard H.264 on repetitive scenes (stationary backgrounds, parking lots). At full 360° 12MP 30 fps, this translates to 2–3 TB/month per camera instead of 4–6 TB. Storage and network provisioning scale differently when panoramic cameras are in the mix.
• IP66 and IK10 Rating: IP66 seals against direct rain, dust, and hose-down spray—standard for outdoor industrial sites. IK10 (20J impact) means the dome itself resists hammer strikes and accidental contact. Not submersible (skip if full immersion is required).
• Four Integrated Microphones with Voice Enhancement: Audio pickup supports incident documentation and two-way communication over IP audio channels. Useful for parking lot check-ins or emergency audio logging without separate microphone mounts.
• Extended Operating Temperature: −40°C to +50°C: Handles arctic storage yards and tropical outdoor installations without derating. No climate enclosure or conditioned vault needed in temperature-extreme regions.
• 30 fps at Full 12MP Resolution: Smooth forensic playback and motion detection. 30 fps is sufficient for vehicle and personnel recognition; 60 fps adds no practical benefit for outdoor perimeter work at this resolution.
• Edge Analytics Capable: Supports on-device object detection and classification via ACAP (Axis Camera Application Platform). Reduces false alarms by filtering noise server-side and lowers VMS processing load in multi-camera installations.
• Secure Boot and Signed Firmware: Protects against unauthorized firmware injection. Required for critical infrastructure and NDAA-eligible deployments where supply chain tampering is a concern.

Integration and Compatibility

The M4308-PLE streams via ONVIF Profile S/T/G, integrating with Axis IP cameras and third-party VMS platforms (Milestone XProtect, Genetec, ArcDis, etc.). Edge processing supports Axis Camera Application Platform (ACAP) custom analytics. Secure communications include 802.1X network authentication and TLS encryption for credential and video streams.

When planning deployment, account for the full 360° output—panoramic video requires more storage and network bandwidth than a single 4MP fixed camera, even with Zipstream enabled. Most network video recorders and VMS platforms handle panoramic streams natively; confirm your recorder's panoramic codec support during architecture review. NVR selection guides often address bandwidth and storage math for multi-panoramic deployments.

Typical Applications

• Vehicle perimeter and parking lot monitoring (360° coverage reduces blind spots at lot boundaries)
• Stadium and outdoor venue security (single panoramic camera covers large public spaces)
• Industrial site perimeters (warehouses, manufacturing yards, chemical storage)
• Campus grounds and facility exteriors (reduces pole-mounted fixed camera proliferation)
• Intersection and traffic monitoring (full panoramic context for accident analysis)
• Critical infrastructure (power substations, telecom sites, fuel storage)

When to Choose a Different Model

If you need higher-resolution detail on a single point of interest (e.g., facial recognition across a narrow gate entrance), a higher-megapixel fixed or PTZ variant in the Axis family delivers tighter focal length and larger subject-on-sensor size. If you require active pan/tilt/zoom and operator control, consider a PTZ camera instead—fixed panoramic excels at passive wide-area coverage. If indoor use is the target, evaluate Axis indoor panoramic models; this 02100-001 is outdoor-hardened and overkill for hallways. If submersion (IP67/IP68) is needed, upgrade to an IP67-rated model; IP66 handles spray and splash, not prolonged water exposure.

Frequently Asked Questions

Q: Does the Axis 02100-001 integrate with Milestone XProtect?

A: Yes. The M4308-PLE is ONVIF Profile S/T/G compliant and integrates with Milestone XProtect and other ONVIF-compatible VMS platforms. Panoramic streams may require codec and resolution confirmation in your VMS before deployment.

Q: What's the minimum illumination for color video on the 02100-001?

A: Lightfinder technology delivers true color at 0.19 lux. Below that level, the camera transitions to IR illumination. Exact color performance depends on scene content and ambient light stability.

Q: Can I wall-mount the Axis 02100-001, or is it ceiling-only?

A: The M4308-PLE is a dome designed for ceiling or pendant mounting. Wall mounting is not recommended and will disrupt the panoramic field of view. Confirm mounting orientation with installation planning.

Q: How much bandwidth does the 02100-001 consume at full 30 fps with Zipstream?

A: Typical Zipstream bitrate ranges 4–8 Mbps depending on scene complexity (static parking lots use the lower end, high-motion factory floors the upper). Standard H.264 without Zipstream may run 8–16 Mbps. Exact figures depend on codec settings and motion in the panoramic field.

Q: Is the Axis 02100-001 NDAA Section 889 compliant?

A: Axis products are generally eligible; verify NDAA compliance status with your Axis channel partner or consult the Axis NDAA product list before inclusion in federal or critical infrastructure projects.

Q: What's the warranty on the M4308-PLE?

A: Standard Axis warranty is 3 years. Confirm current warranty terms and extended support options with your specialty distributor.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02100-001 M4308-PLE represents a fundamental shift in how you approach outdoor wide-area surveillance. Rather than mounting 3–4 fixed cameras on a perimeter to chase complete coverage, a single 12MP panoramic dome eliminates blind spots entirely—no overlap cost, no multi-camera sync burden. The 360° field of view with 2880×2880 output is real forensic resolution, not a stitching workaround. When combined with Lightfinder and Forensic WDR, the 02100-001 handles the specific outdoor lighting problems that plague traditional 5MP domes: sunrise/sunset color shift, parking lots with harsh shadows under high-bay lights, and industrial yards where sun intensity changes within the same frame. This is not a compromise for outdoor deployment; it's a deliberate engineering answer to why outdoor perimeters fail.

Technical Highlights:

• Lightfinder + Forensic WDR Combination: 0.19 lux color sensitivity with simultaneous shadow/highlight balancing solves the core outdoor problem—detail preservation across extreme lighting swings. A conventional 5MP dome without WDR will either blow out parking lot asphalt or crush shadow detail on building facades. The M4308-PLE holds both, forensically usable, in a single stream.
• Zipstream Compression (up to 50% bandwidth reduction): At 12MP 30 fps, a standard H.264 stream hits 8–16 Mbps depending on motion. Zipstream on static scenes (parking lots, facility exteriors) cuts this to 4–6 Mbps. Over a year of 24/7 recording, that's the difference between 2.5 TB and 5 TB per camera. In a 20-camera perimeter deployment, Zipstream recaptures 50+ TB annually—real storage savings that offset the panoramic overhead.
• IK10 Dome Rated (IK09 IR Window): Impact resistance 20J (equivalent to a 5 kg steel ball dropped from 2 m) means the optical assembly survives vandalism-prone outdoor sites without replacement. The separately rated IR window (IK09, 10J) is the weaker link but still robust against accidental contact and minor assault.
• PoE 802.3af Compliant (sub-13W): Does not force a PoE+ (802.3at) infrastructure. Older and budget PoE switches can power the 02100-001 without strain. If you're retrofitting an older campus or industrial facility with low-power PoE, this camera won't trigger an NVR or switch upgrade cycle.

Deployment Considerations:

• Panoramic Video Handling: Not all VMS platforms display panoramic streams identically. Milestone XProtect, Genetec, and ArcDis handle panoramic natively, but smaller on-premise systems or legacy recorders may require codec or resolution confirmation. Verify VMS panoramic support in your architecture phase—this is a one-time discovery cost that prevents rework.
• Mounting is Ceiling/Pendant Only: Unlike a 4MP bullet that can mount on a pole or wall, the M4308-PLE must hang from above. If your perimeter lacks suitable ceiling or pendant height, you're forced to consider alternative fixed cameras. This is not a limitation of the product but a fixed constraint of panoramic optics—the 183° horizontal and vertical field of view demands a high vantage point.
• Storage Math Changes: One 12MP panoramic camera @ Zipstream ≈ 2.5 TB/month. Three traditional 4MP fixed cameras ≈ 1.8 TB/month total. Panoramic is not zero-overhead; it trades multi-camera installation labor for modest storage uplift. In facilities with limited roof or pole space, this math favors panoramic decisively.

The 02100-001 is the right choice for large outdoor facilities—warehouses, logistics yards, stadium exteriors, campuses—where perimeter coverage is the goal and mounting points are plentiful. Its combination of 360° fixed coverage and forensic low-light handling (Lightfinder + Forensic WDR) makes it exceptionally difficult to justify 3–4 traditional domes at the same location. Deploy this when you need the entire perimeter in one view and won't need to pivot or zoom into specific faces.
