Axis P3737-PLE 20MP Panoramic Outdoor Dome - 02634-001

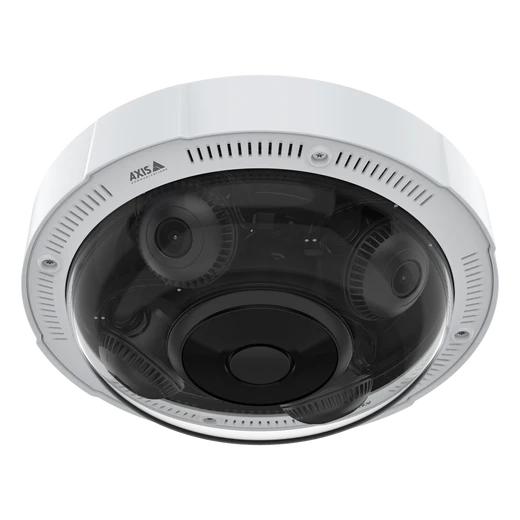

Axis 02634-001 P3737-PLE 20MP Multi-Sensor Panoramic Outdoor Dome

The Axis 02634-001 (P3737-PLE) is a four-sensor panoramic IP camera that delivers 20MP total resolution—4x 5MP sensors arranged to capture 360° horizontal coverage without blind spots. Built for large outdoor areas where single-camera deployments either miss critical zones or require multiple devices, the 02634-001 consolidates panoramic surveillance into one weatherproof dome, reducing installation labor, cabling complexity, and per-unit power consumption compared to deploying 4–6 traditional fixed domes.

Key Features

• 20MP Multi-Sensor Architecture (4x 5MP): Four independent 1/2.7" CMOS sensors arranged for full 360° horizontal field of view. No stitching artifacts or software image blending—each sensor captures and processes its own frame independently, eliminating the latency and processing overhead typical of stitched panoramic systems. Result: you deploy one dome instead of four, cutting installation points from four to one.
• Varifocal Optics (3.18–8.12mm): Adjust focal length remotely via PoE without site revisits. Horizontal field ranges from 70.3° (telephoto) to 27.0° (wide), allowing you to optimize detail capture for pedestrian identification in one sector while maintaining full perimeter awareness. Vertical adjustment up to 70.3° per sensor handles elevated mounting points and low-angle threat vectors.
• Forensic WDR (Wide Dynamic Range): High-contrast outdoor scenes—sunlit pavement adjacent to building shadow, vehicle headlights against dusk sky—are common in parking lots and perimeter security. Forensic WDR recovers detail in both shadow and highlight regions simultaneously, critical for post-incident investigation where you need license plate legibility and facial features in the same frame.
• Lightfinder Color Imaging (0.19 lux): Delivers color video at near-darkness levels where traditional IR-only systems fall back to monochrome. At 0.19 lux, you capture clothing colors, vehicle paint, and facial detail before IR illumination kicks in—forensically valuable and operationally superior to IR-only alternatives. Remote IR adjustment prevents overexposure in scenes with reflective surfaces.
• H.264 + Zipstream Compression: H.264 codec with Axis Zipstream optimization reduces bandwidth and storage footprint by prioritizing sharp edges and suppressing redundant motion in static background areas. On a 24/7 multi-sensor deployment, Zipstream compression typically saves 20–40% storage compared to standard H.264 at equivalent quality—a meaningful figure when your NVR is recording 4–6 panoramic streams continuously.
• PoE Power (IEEE 802.3af+): Draws approximately 15W typical operation, well within PoE+ budget. Single Ethernet run eliminates separate power infrastructure. Remote focus, zoom, and IR adjustment all operate via PoE—no additional serial lines or control cables required.
• AI-Powered Analytics: On-camera object detection, people counting, and intelligent event triggers reduce false alerts and NVR processing load. Configure detection rules per sensor to focus alerting on specific zones—e.g., perimeter intrusion on the front sensor, parking lot occupancy on the rear—without parsing all four streams server-side.
• Variable Frame Rate (up to 30 fps): Adjust frame rate per sensor based on lighting and scene activity. Reduces bandwidth in low-motion night scenes while maintaining 30 fps smooth motion capture during peak daytime traffic.
• IP66 / IK09 Durability: IP66 sealing blocks direct spray and dust ingress; IK09 rating withstands 20J impacts (typical for harsh industrial or public-space environments). Operating range -30°C to +50°C covers temperate to cold climates without supplemental heaters or cooling. Stainless-steel fasteners and conformal coating on PCBs resist salt-air corrosion.
• Two-Way Audio: Built-in speaker and microphone support live intercom, deterrence messaging, or emergency communication from the control center—integrated without additional junction boxes.

Integration & Compatibility

The P3737-PLE is ONVIF Profile S/T/G compliant, integrating with third-party VMS platforms including Milestone XProtect, Genetec Security Center, and others. Native Axis Camera Station support for organizations preferring Axis-native recording. Secure boot and signed firmware protect against unauthorized modifications—important for deployments requiring NDAA compliance or defense-contractor cybersecurity policies. Remote management via HTTPS and 802.1X network authentication are standard.

Ideal Deployment Scenarios

• Parking lot and multi-level garage perimeter monitoring—single camera replaces 4–6 fixed domes
• Airport, train station, and public transit facility perimeter surveillance
• Campus and industrial facility boundary coverage
• Large warehouse exterior and loading dock area monitoring
• Traffic intersection and roadway incident documentation
• Port and logistics facility cargo yard surveillance

When to Choose a Different Model

If your requirement is fixed single-area coverage (e.g., one building entrance or hallway), a lower-cost single-sensor outdoor IP camera delivers better ROI. If you need unlimited pan-tilt-zoom freedom (e.g., tracking moving subjects), evaluate a PTZ camera instead—though note that PTZ requires pan/tilt motor maintenance and cannot simultaneously cover two independent zones. If your scene exhibits extreme contrast or very low light but does not require full 360° coverage, consider an alternative panoramic variant with fewer sensors or a single-sensor model with enhanced Lightfinder tuning.

Frequently Asked Questions

Q: What is the maximum IR illumination range on the Axis 02634-001?

A: The P3737-PLE features optimized integrated IR illumination designed for panoramic coverage zones. Exact range depends on scene reflectivity and target size; the Lightfinder 0.19 lux color mode is often sufficient for identification-level detail without IR in low-light conditions. For precise IR range per sensor, consult the manufacturer datasheet.

Q: Can I wall-mount the P3737-PLE, or is it ceiling-only?

A: The P3737-PLE is designed for ceiling and pendant mounting. Wall mounting is not recommended due to the panoramic multi-sensor layout and horizontal field-of-view design.

Q: Does the 02634-001 support ONVIF?

A: Yes, the P3737-PLE is ONVIF Profile S/T/G compliant and integrates with Milestone, Genetec, and other third-party VMS platforms.

Q: What is the typical power consumption of the Axis 02634-001?

A: The P3737-PLE draws approximately 15W typical operation via PoE+, well within standard switch budgets. Peak consumption may exceed this during active IR and analytics processing.

Q: Is the Axis 02634-001 suitable for salt-air or coastal environments?

A: The P3737-PLE uses stainless-steel fasteners and conformal coating on circuit boards, which provide corrosion resistance suitable for coastal applications. However, for extreme salt-spray environments (marine/offshore), consult the manufacturer regarding long-term durability expectations.

Q: How many simultaneous video streams can the P3737-PLE deliver?

A: The P3737-PLE supports multiple simultaneous streams at full resolution via Gigabit Ethernet. Frame rate and resolution per stream depend on codec and network bandwidth; H.264 with Zipstream optimization reduces bandwidth consumption, enabling higher concurrency on bandwidth-constrained networks.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02634-001 P3737-PLE is the right choice when you need genuine 360° panoramic coverage without the complexity of aligning and managing four separate dome cameras. Unlike stitched-image systems that introduce latency and require frame-blending processing, the P3737-PLE's four independent sensors each produce a clean, native 5MP stream—no software compensation required. This matters operationally: you get forensically clean imagery and reduced NVR CPU load.

Technical Highlights:

• 20MP multi-sensor (4x 5MP independent streams): Four fully independent sensor pipelines eliminate software stitching artifacts and processing overhead. Each sensor runs its own analytics engine, allowing per-sector motion detection and event thresholds—critical for zones with varying lighting or activity patterns.
• Lightfinder 0.19 lux color + Forensic WDR: This pairing is uncommon in outdoor surveillance. You retain color detail in pre-dawn or dusk scenes before IR takes over, and forensic WDR recovers shadow/highlight detail in mixed-lighting parking lots. Together, they reduce forensic investigation friction—fewer 'can't ID the suspect' calls.
• H.264 Zipstream compression at 15W PoE power budget: Typical multi-sensor 24/7 deployments consume storage aggressively. Zipstream reduces that burden by 20–40% without obvious quality loss in static zones. At 15W typical draw, you'll fit this dome on a single PoE+ circuit alongside 8–10 standard single-sensor cameras on a 95W switch port.

Deployment Considerations:

• NVR codec support: Verify your NVR or VMS handles quad independent H.264 streams efficiently. Some legacy NVR firmware may struggle with the four simultaneous frame decodings per camera—check compatibility before committing to a large fleet.
• Ceiling/pendant mounting constraint: Unlike fixed domes that work on walls, the P3737-PLE's design assumes overhead installation. If your facility has only wall-mount points, this camera is not a fit—plan for new pendant hardware or reconsider single-sensor alternatives.
• Zipstream tuning per zone: Zipstream works best when you tune motion sensitivity and quality levels per sensor zone. A sensor capturing static parking at night can afford lower bitrate; the same dome's entrance zone may need higher quality. Budget 2–3 hours per camera for initial tuning.

Position the 02634-001 as your primary choice for large parking lots, airport perimeters, and industrial facility boundaries where you need 360° awareness without panoramic PTZ complexity or the cost of four separate installations. It's overkill for single-zone coverage and unnecessary if you're already managing a 12-camera high-resolution grid—but for consolidating perimeter surveillance into one mount point, it saves real money on labor and cabling.
