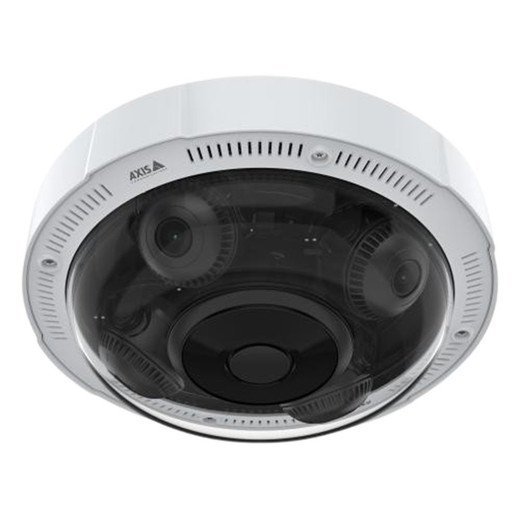

Axis 02635-001 P3738-PLE 32MP 4K AI Panoramic Outdoor Dome IP Camera

The Axis 02635-001 is a multi-sensor panoramic camera purpose-built for outdoor deployments requiring 360° coverage without blind spots. Four synchronized 8MP CMOS sensors combine to deliver 32MP total resolution, eliminating the latency and mechanical wear of pan-tilt-zoom units. Each sensor captures its own 1/2.8" image, delivering 8MP per quadrant with independent varifocal control across the entire field of view.

360° Coverage Without Mechanical Moving Parts

The four-sensor design means you capture the entire scene simultaneously — no waiting for a PTZ head to sweep into position. This matters in high-traffic environments like parking structures, transportation hubs, and city centers where real-time visibility into multiple zones is non-negotiable. You can zoom and refocus on any of the four quadrants after the fact without losing coverage elsewhere.

Low-Light and High-Contrast Imaging

Lightfinder technology pushes color imaging down to 0.19 lux — meaning usable color detail in conditions most cameras require IR mode. Pair this with integrated IR illuminators using OptimizedIR (850nm) and you're equipped for around-the-clock surveillance. Forensic WDR (wide dynamic range) recovers detail in both shadows and blown highlights simultaneously, a critical advantage when a single camera must handle glare from glass facades and dark parking level corners in the same frame.

AI Analytics and Motion Correlation

The 02635-001 includes on-camera AI object detection — persons, vehicles, and other relevant activity — with motion tracking that correlates movement across all four quadrants. This transforms raw video into actionable alerts, reducing false positives and investigative review time. Two-way audio support enables active deterrence or real-time communication during incidents.

Bandwidth and Storage Efficiency

H.264 compression with Axis Zipstream bandwidth optimization reduces storage and transmission overhead without visible quality loss. On 24/7 multi-camera deployments, this eases pressure on NVR capacity and network backhaul. PoE power delivery (single cable, no separate power supply) simplifies installation and reduces cabling costs in outdoor ceiling-mount scenarios.

Outdoor Durability and Environmental Hardening

IP66 weatherproofing protects against rain and dust; IK09 vandal resistance handles impact typical in public-access areas. Operating temperature range of –30°C to 50°C ensures reliable performance in extreme climates without enclosure heaters or cooling. The varifocal lens (3.18–8.12 mm) supports remote focus and zoom, reducing on-site maintenance trips.

Security and Compliance

Secure boot and signed firmware prevent unauthorized modifications. Environmental compliance includes brominated flame retardant (BFR)–free and chlorinated flame retardant (CFR)–free construction, supporting green procurement standards.

Integration and Compatibility

Standard ONVIF Profile support enables integration with network video recorders and video management software from multiple vendors. Deploy to on-premises NVR systems, cloud platforms, or hybrid architectures as your infrastructure strategy dictates. Consult your VMS documentation for native driver support — Axis cameras integrate broadly, but driver availability varies by platform.

When to Choose a Different Model

If you need higher per-quadrant resolution, consider Axis panoramic variants in the same family with native 12MP or 16MP per sensor. If a single fixed-position camera with 180° coverage suffices, explore Axis compact outdoor domes with lower power draw and simplified mounting. If you require active PTZ capability — following specific targets across a wider area — a dedicated PTZ unit may be more appropriate despite higher operational cost.

Lens and Coverage Trade-Offs

The varifocal range (3.18–8.12 mm) provides flexibility, but wide-angle coverage (3.18 mm) is the default mode for 360° awareness. Zoom magnification increases per-pixel detail but narrows the field per quadrant — plan zoom usage based on your investigative needs, not live monitoring. The camera handles multiple zoom levels via software, but don't rely on extreme digital zoom for forensic clarity.

Frequently Asked Questions

Q: What does 32MP actually mean on this camera?

A: The Axis 02635-001 uses four 8MP sensors arranged in a 2x2 grid, each covering a 90° quadrant. The 32MP total is the sum of all four sensors. You don't get a single 32MP image; instead, you get four synchronized 8MP streams that can be stitched in software or analyzed independently depending on your VMS architecture.

Q: Does this camera require a separate IR power supply?

A: No. The integrated IR illuminators draw power from the single PoE cable. Maximum power draw is within standard 802.3af PoE limits, so it won't strain a typical managed switch's power budget.

Q: Can I mount the Axis 02635-001 on a wall instead of ceiling?

A: The 02635-001 is designed for ceiling or pendant mounting to deliver full 360° panoramic coverage. Wall mounting would block one or more quadrants, defeating its primary purpose. If you need wall-mount outdoor coverage, consider a single-sensor fixed or varifocal dome instead.

Q: What frame rates does this camera deliver?

A: Variable frame rates up to 15 fps across all four sensors. This is sufficient for general surveillance and motion detection; if you require 30 fps for forensic detail on fast-moving subjects, confirm this with your VMS vendor — some vendors optimize 15 fps panoramic streams differently.

Q: How does Lightfinder compare to standard night-vision mode?

A: Lightfinder delivers color imagery at 0.19 lux, whereas IR mode (night vision) produces monochrome but extends range further. The camera automatically balances between the two based on ambient light. For investigations requiring subject clothing color or vehicle paint details, Lightfinder is preferable; pure IR excels in zero-light conditions.

Q: Is the Axis 02635-001 compliant with NDAA Section 889?

A: Consult Axis's current compliance documentation. Axis products generally support NDAA screening, but compliance status can change with firmware updates. Verify with your vendor or Axis directly before finalizing a U.S. government contract.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02635-001 panoramic design eliminates a fundamental trade-off that plagues traditional PTZ deployments: you cannot simultaneously observe multiple quadrants in real-time. The 02635-001 captures all four zones at once, each at 8MP resolution, with independent varifocal control per quadrant. This is especially valuable in transportation hubs, parking structures, and industrial campuses where activity in one zone must not blind you to activity in another.

Technical Highlights:

• 32MP from four 8MP sensors: 360° horizontal field of view with 1/2.8" CMOS per sensor. You're not getting digital zoom; you're getting true per-quadrant resolution that supports forensic detail within each 90° zone.
• Lightfinder at 0.19 lux: This pushes color usability into near-darkness without IR, critical for environments where IR glare off reflective surfaces (metal, water, glass) causes washout. The optional IR backup ensures 24/7 coverage when ambient light drops further.
• Forensic WDR recovery: Simultaneously handles direct sunlight on one quadrant (e.g., parking lot overhang) and shadow detail on another (e.g., building entrance). Single-pass processing preserves texture in both extremes — no post-processing required.
• 15 fps variable refresh: Sufficient for motion detection and investigative replay. Not ideal for high-speed vehicular pursuits, but adequate for parking and pedestrian surveillance across all four zones simultaneously.

Deployment Considerations:

• Ceiling-mount only: Wall mounting defeats the panoramic purpose. Confirm available ceiling/soffit space in your site survey before specifying this unit.
• Varifocal 3.18–8.12 mm: The wide end (3.18 mm) gives you maximum 360° awareness; the telephoto end (8.12 mm) tightens per-quadrant framing for closer inspection. Zoom is performed in software post-capture; don't expect real-time PTZ-style panning.
• PoE power draw within standard budget: Integrates seamlessly into existing PoE infrastructure — no separate PSU means simpler cabling and fewer single points of failure at height.
• Four independent video streams: Your VMS must handle quad-stream ingestion. Confirm your platform natively supports multi-sensor stitching or quad-pane display; some systems require configuration or plugin licensing.

For mission-critical outdoor spaces where simultaneous multi-zone awareness outweighs the need for PTZ pursuit capability, the 02635-001 delivers unmatched real-time context. Parking structures, transportation terminals, and perimeter surveillance benefit most from this simultaneous four-quadrant design.

Key Specifications:
Field of View: 360°
Color: White
