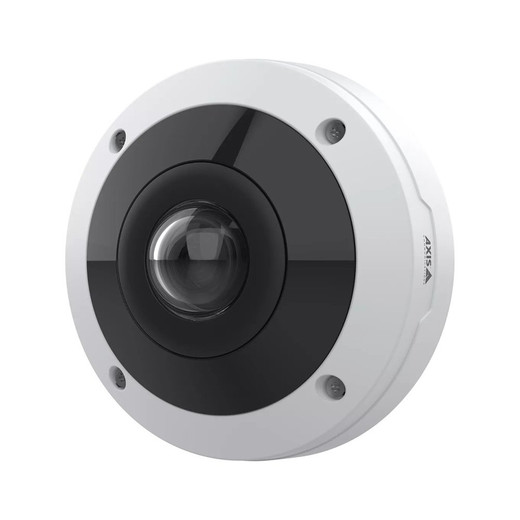

Axis 02511-001 12MP Panoramic Outdoor IR Dome Camera

The Axis 02511-001 is a multi-sensor panoramic dome designed for outdoor deployments where traditional fixed cameras create coverage gaps or require multiple units. Built around a 1/2.3" progressive-scan CMOS sensor paired with a fixed-focus 1.2mm stereographic lens, this camera delivers a native 2992×2992 pixel resolution (12MP) with an exceptional 182° horizontal and 182° vertical field of view—enabling you to replace three to four conventional cameras with a single sealed housing.

Key Features

• Panoramic Multi-View Output: Simultaneous dewarped quadview, double-panorama, corner, and corridor crop outputs mean a single 02511-001 can serve multiple monitoring zones in a single recording stream. This reduces NVR channel consumption and simplifies site wiring, but requires VMS support for multi-view rendering—check your system's ONVIF Profile compatibility before final selection.
• Forensic WDR to 120dB: Handles extreme lighting contrasts—think a bright sky above a shadowed entryway or vehicle headlights during backlit conditions. At 120dB, you eliminate the ghosting and detail loss you'd see in a standard WDR camera. Real benefit: you recover facial and license-plate detail in conditions where a conventional outdoor dome would fail.
• OptimizedIR with Lightfinder (0.19 lux): Built-in 850nm infrared illumination with Axis's Lightfinder low-light algorithm maintains color detail in near-darkness—critical for forensic identification. At 0.19 lux minimum, this camera operates in conditions where standard models require switchover to B&W IR mode, preserving color clues that matter in security investigations.
• Sharpdome 360 Edge Sharpening: Panoramic lenses traditionally suffer image degradation at the periphery. Sharpdome processing maintains forensic edge clarity across the entire 182° sweep, eliminating the soft-focus artifacts common in wide-angle domes.
• Fixed Stereographic Lens with IR Correction: No mechanical focus adjustment means no moving parts to fail in harsh weather. The 1.2mm lens is permanently IR-corrected, so day and night imagery maintain consistent focus—important in outdoor environments with temperature swings from –40°C to +50°C.
• H.264 Compression with Zipstream: Adaptive bitrate coding cuts bandwidth roughly 50% compared to constant-bitrate H.264, a real factor when streaming from remote sites with limited WAN bandwidth. Local storage footprint shrinks proportionally, extending retention on edge-based microSD recording (up to practical limits of the installed card).
• IP66 and IK10 Rating: Fully sealed against dust ingress and direct rain; the vandal-resistant dome is rated IK10 (resistant to 20 joules impact energy). Skip this if you need submersion capability—that requires IP67. For covered perimeter installations, wall-mounted alcoves, or rooftop pods, IP66 is sufficient and cost-justified.
• PoE Power (Single Cable): Draws under 13W via standard 802.3af PoE, so a single RJ-45 run handles power, control, and video. No separate power supply, conduit, or breaker—installation labor drops compared to 12VDC bullet cameras.

Integration and Compatibility

The 02511-001 outputs ONVIF-compatible H.264 video streams. Multi-view rendering (quadview, corridor crop, etc.) depends on VMS capability; confirm your Axis IP cameras management platform supports panoramic dewarping. Axis Camera Station handles all output modes natively. Third-party platforms like Milestone, Genetec, and Hanwha may require custom view configuration or plugin support. When planning network video recorder capacity, account for bandwidth per view mode—quadview streaming uses roughly 4x the bitrate of a single panorama output, though Zipstream adapts based on motion and scene complexity.

For outdoor installation, verify your PoE switch has sufficient power budget: a single 02511-001 will not overload a standard 95W+ switch, but combined with additional cameras, tally total draw. If site wiring runs exceed 100 meters, consider midspan injectors or PoE++ switches to maintain voltage margins on longer cable runs.

Deployment Considerations

The panoramic form factor excels in parking lots, perimeter fencing, building entrances, and wide-area facility overviews where traditional domes create blind spots. However, the fixed 1.2mm lens cannot zoom—if you need shot variability for investigative follow-up (facial detail, hand gestures, badge reads), combine this with a separate varifocal or zoom camera in high-interest zones. The 02511-001 becomes your context camera; pair it with targeted higher-focal-length units for fine detail.

Frequently Asked Questions

Q: Can the 02511-001 be wall-mounted, or is it ceiling-only?

A: The panoramic dome design is ceiling-suspended by default, but bracket options support wall-mount and alcove applications. Contact your integrator for mount compatibility; verify structural load rating (approx. 1.2 kg) on your chosen surface.

Q: What VMS platforms support the panoramic multi-view output natively?

A: Axis Camera Station renders all output modes. ONVIF-based systems (Milestone, Genetec) may require manual view configuration or panoramic renderer plugins. Test multi-view playback with your chosen platform before large-scale deployment.

Q: Does the 02511-001 support two-way audio?

A: The camera includes a built-in microphone for audio input. Two-way audio capability depends on your VMS or edge device; confirm speaker/output support in your system before selecting this for intercom scenarios.

Q: How does the 0.19 lux rating compare to standard night-vision cameras?

A: Most conventional outdoor domes operate at 0.5–1 lux in color mode before switching to B&W IR. At 0.19 lux, the 02511-001 maintains usable color detail in near-moonlight conditions, preserving color clues (clothing, vehicle paint) that matter in forensic review. In zero ambient light, built-in IR handles illumination.

Q: Will the camera work with standard 802.3af PoE switches?

A: Yes. The 02511-001 draws under 13W peak, well within 802.3af (15.4W) headroom. No PoE+ or high-power switches required, though verify total switch power budget if deploying multiple cameras.

Q: What's the frame rate on all output modes simultaneously?

A: Native panoramic capture runs 30 fps. Simultaneous multi-view crops (quadview, corridor, corner) are all rendered from the same 30 fps stream at no additional load; your NVR bandwidth budget rises only if you're recording all views—confirm bitrate per view mode in your VMS before final sizing.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02511-001 addresses a real gap in outdoor surveillance: delivering immersive panoramic awareness from a single, sealed housing without the mechanical complexity and failure points of PTZ systems or the coverage gaps of traditional fixed domes. The stereographic 1.2mm lens design is rare in the market and engineered specifically to eliminate the soft-focus artifacts at the edges—important because panoramic imagery is only as strong as its worst pixel, and that worst pixel is typically the periphery where conventional domes degrade.

Technical Highlights:

• Forensic WDR at 120dB: Most outdoor domes top out at 60–80dB WDR. At 120dB, the 02511-001 recovers facial and license-plate detail in backlit scenarios (bright sky, vehicle headlights, glare off windows) that would be complete wash-out on standard equipment. This is not a cosmetic boost—120dB is the practical floor for forensic-grade outdoor imaging.
• OptimizedIR and 0.19 lux Lightfinder: The combination maintains color imagery down to near-moonlight conditions. You avoid the color-to-B&W mode-flip that degrades fabric texture and vehicle paint identification. Forensic investigators will notice—and your legal team will appreciate the color record.
• Simultaneous Multi-View Outputs: A single 02511-001 stream feeds quadview, double-panorama, corner, and corridor crops simultaneously from the same 30 fps capture. This replaces three to four traditional cameras in a typical parking lot or perimeter deployment, cutting hardware cost, cable runs, and power draw—meaningful across a 50+ camera site.
• Sharpdome 360 Edge Sharpening: Standard panoramic cameras lose edge sharpness past 120° from center. Sharpdome processing maintains uniform detail across the entire 182° sweep—critical when your forensic requirement is license-plate legibility at the frame boundary.

Deployment Considerations:

• Multi-view rendering depends on VMS support. Axis Camera Station handles all modes; third-party platforms (Milestone, Genetec, Hanwha) may require view configuration or panoramic plugins. Test before broad rollout.
• The fixed 1.2mm lens cannot zoom. Pair the 02511-001 with a targeted varifocal camera in high-interest zones if you need investigative detail (facial capture, badge reads). The 02511-001 becomes your context layer.
• At 12MP panoramic resolution, bandwidth per view mode scales with simultaneous recording selections. Quadview at full bitrate uses 4x a single panorama. Confirm NVR channel and storage sizing for your chosen output modes; Zipstream adaptive bitrate helps but doesn't eliminate the bandwidth delta.

The 02511-001 wins in parking lots, perimeter fencing, building entrances, and wide-area facility overviews where you need immersive context without mechanical complexity. Pair it with standard fixed domes or varifocals in entry lobbies or cash-handling zones where shot composition and zoom matter more than panoramic sweep.
