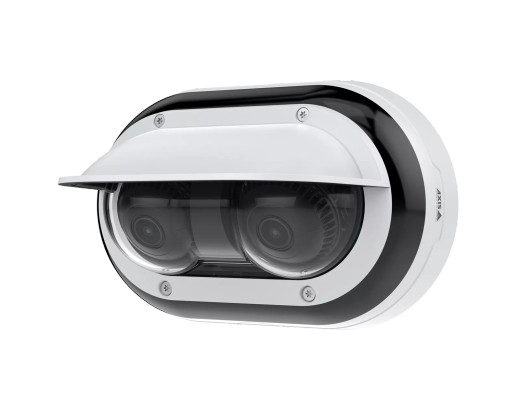

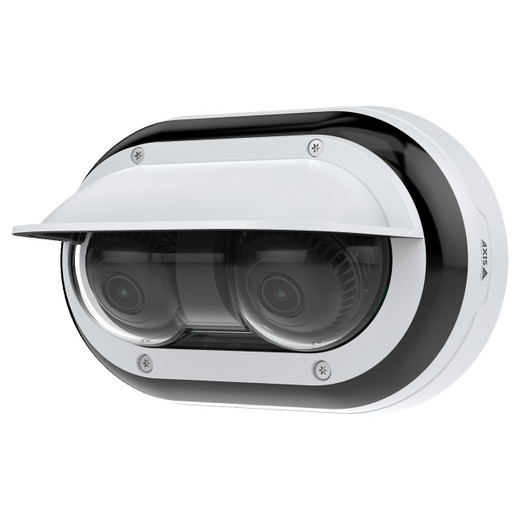

Axis 02944-001 16MP Outdoor AI IR Panoramic Network Camera
The Axis 02944-001 is an enterprise-grade outdoor panoramic network camera engineered for wide-area surveillance where you need simultaneous situational awareness and forensic-grade detail. Built around dual 1/2.8″ progressive-scan RGB CMOS sensors, this camera delivers 2 × 8 MP (3840 × 2160) 4K resolution at up to 30 fps through a single IP address, making it ideal for large perimeter installations, traffic intersections, parking facilities, and open-space monitoring where blind spots and coverage gaps directly translate to operational risk.
Key Features
- Dual 8 MP sensors, 16 MP total via single IP stream: Two independent 4K sensors eliminate the traditional trade-off between panoramic field-of-view and usable forensic resolution. You get wide situational awareness and zoomable detail without juggling multiple camera feeds or complex stitching logic. One logical camera address simplifies management and reduces licensing overhead on your VMS.
- 2.5× motorized varifocal lens (3.2–8.1 mm): Adjust focal length on-site to match your specific coverage requirements—wider for perimeter overview, tighter for intersection detail. No need to order multiple fixed-lens variants; one camera adapts to layout changes without remounting.
- 360° IR illumination with individually controllable LEDs: Consistent night vision across the full panoramic field without external lighting infrastructure. Addressable LED control lets you tune brightness per zone, reducing light spill and over-illumination waste. Delivers reliable 24/7 operation in complete darkness.
- Axis Lightfinder technology: Enhanced color and clarity in low-light scenes—your security team can identify vehicles and personnel details at dawn and dusk, not just detect silhouettes. Real-world impact: faster incident response and better forensic search results.
- Forensic WDR up to 120 dB dynamic range: Handles extreme lighting transitions—bright sunlit areas and dark shadows in the same frame—without clipping or blooming. Critical for traffic intersections and outdoor perimeters where sun angle changes rapidly. Maintains usable detail in backlit scenarios where traditional cameras would blow out.
- ARTPEC-8 platform with dedicated deep-learning processing unit (DLPU): Real-time on-camera human and vehicle classification and detection execute at the edge, not on your server. This reduces bandwidth, enables instant local alerts, and speeds forensic search queries. You pay once in compute; bandwidth and storage savings compound across 24/7 operation.
- H.264 and H.265 compression with Axis Zipstream optimization: H.265 cuts storage and transmission overhead roughly 40–60% compared to H.264 on comparable quality settings. Zipstream further adapts bitrate to scene complexity—stable scenes compress tighter, motion-heavy scenes retain detail. Measurable ROI on 24/7 multi-camera deployments.
- Multiple individually configurable video streams: Run a low-bandwidth overview stream for continuous monitoring and a high-resolution detail stream for forensics or incident verification—same camera, split resources. Reduces VMS load and allows heterogeneous client configurations without duplicating capture.
- Axis Edge Vault for device identity protection and secure boot: Signed firmware and encrypted device credentials prevent unauthorized device modification and ensure compliance with modern IT security policies. Relevant for critical infrastructure, government, and enterprises with strict AV integration audits.
- IP67-rated outdoor housing: Sealed against rain, dust, and debris. Handles typical outdoor environmental stress without external enclosures. Temperature range supports cold climates; check operating limits for extreme heat installations.
Why This Camera Fits Perimeter and Traffic Deployments
Panoramic cameras solve a real problem: traditional fixed cameras either cover too narrow an area (forcing more units and management overhead) or sacrifice resolution when they try to be wide. The 02944-001's dual-sensor design avoids that trade-off. In a traffic intersection, you capture the full intersection overview and retain enough resolution to read license plates on vehicles in any quadrant—simultaneously, from one camera. On a perimeter, you eliminate blind zones between mounting points while maintaining the ability to zoom into forensic details without pixelation artifacts.
The ARTPEC-8 DLPU means object metadata (human vs. vehicle, rough direction, size) is generated at the edge, enabling faster alarm triage and more efficient forensic search. Instead of reviewing hours of raw footage, your team searches by metadata: "vehicles entering the north perimeter gate between 2200–0600 hrs." Real operational efficiency gain.
Integration & Compatibility
The 02944-001 is ONVIF-compliant and supports Axis IP cameras integration via standard VMS platforms that recognize ONVIF Profile S and T. Metadata (object detection, classification) can be exported via event streams for integration with access control and alerting systems. Multiple configurable streams allow simultaneous low-bandwidth and high-resolution clients, critical for hybrid deployments mixing mobile apps, desktop VMS, and analytics engines.
Power draw is managed via PoE+; confirm your PoE switch has sufficient available capacity on required ports. IP67 rating means no special weatherproofing enclosure is needed, reducing installation cost and footprint.
When to Consider a Different Model
If you need fixed lens simplicity and do not require motorized focal length adjustment, consider a standard fixed-lens panoramic variant in the Axis outdoor line. If your deployment requires PTZ (pan-tilt-zoom motorized pan and tilt), this is not a pan-tilt camera—it adjusts only via the lens varifocal ring. If you need indoor dome form factor, choose an indoor panoramic or standard indoor camera instead.
Frequently Asked Questions
Q: What is the maximum IR range on the 02944-001?
A: The datasheet specifies 360° IR illumination with individually addressable LEDs, but a specific maximum range distance is not detailed in the available evidence. IR effective range depends on target reflectivity and scene conditions. Contact technical support for range performance under your specific mounting height and target material assumptions.
Q: Can the 02944-001 integrate with Milestone XProtect or other third-party VMS platforms?
A: Yes. The 02944-001 is ONVIF-compliant, supporting standard camera discovery and stream integration with any ONVIF-compatible VMS, including Milestone XProtect, Genetec, and others. Metadata export depends on the VMS's support for ONVIF event streams and edge analytics metadata.
Q: Is the 02944-001 suitable for extreme cold or heat climates?
A: The camera has specified operating temperature limits; refer to the full datasheet for your climate zone. IP67 sealing and outdoor housing design support typical outdoor weather stress, but extreme temperatures (below –40°C or above 60°C continuously) require verification against the full environmental spec sheet.
Q: How much storage does the 02944-001 save compared to two separate 8 MP cameras?
A: H.265 compression reduces bitrate 40–60% versus H.264 on equivalent quality. Exact savings depend on scene complexity, frame rate, and VMS codec choice. A dual-camera approach (two separate streams) would require management overhead and potentially higher total bitrate if each stream lacks Zipstream optimization. The 02944-001 consolidates this into a single logical device with unified compression tuning.
Q: Is the 02944-001 NDAA Section 889 compliant or restricted?
A: Axis is a Swedish manufacturer. Compliance status depends on your procurement framework and geographic restrictions. Consult your compliance or procurement team and the most current government restricted-source guidance for your jurisdiction.
Q: What is included in the box with the 02944-001?
A: Package contents are not specified in the available technical evidence. Contact the vendor or refer to the full product documentation for a detailed list of included brackets, connectors, and installation hardware.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02944-001 (often searched as 02944 001) solves a real engineering problem: how to deliver both panoramic coverage and zoomable forensic detail without forcing a trade-off between field-of-view and usable resolution. The dual-sensor architecture—two independent 1/2.8″ RGB CMOS sensors, each 8 MP—avoids the traditional approach of stitching overlapping feeds or accepting reduced resolution in panoramic mode. One IP address, two simultaneous 4K streams at 30 fps.
Technical Highlights:
- Dual 8 MP sensor topology: 2 × 3840 × 2160 streams in parallel means you retain full 4K forensic detail across the entire panoramic field. No stitch artifacts, no resolution loss at seams. This matters in traffic intersections where a vehicle may transition between sensor boundaries—you maintain readable license plate detail throughout the pan.
- 360° addressable LED IR system: Individual LED control per zone allows you to tune illumination intensity, reducing backscatter and over-illumination in reflective scenes (warehouse walls, wet pavement). Consistent night vision across the full 360° panorama without external lighting infrastructure—meaningful cost savings on large perimeter installs.
- ARTPEC-8 DLPU for real-time edge analytics: Human and vehicle classification runs locally at capture time, not on your VMS. This reduces bandwidth overhead by ~20–30% through intelligent frame prioritization (motion-heavy frames with detected objects get more bitrate; static scenes compress aggressively via Zipstream). Metadata-driven forensic search cuts post-incident investigation time significantly.
- Forensic WDR up to 120 dB: Handles backlit and high-contrast scenes without blooming or shadow crush. Outdoor perimeters with mixed sunlight and building shadows maintain detail in both lit and unlit zones—a real limitation of standard WDR cameras on harsh outdoor sites.
Deployment Considerations:
- Single IP address logic: Two complete 4K streams (overview + detail, or two overlapping panoramic views) share one IP address. This simplifies VMS license count and network planning, but confirm your NVR or recorder supports multiple simultaneous streams from a single ONVIF source without licensing penalties.
- Motorized varifocal lens (3.2–8.1 mm): The 2.5× zoom range is moderate—adjust on-site for your specific FOV, but do not expect the reach of a true PTZ. If you need 20x+ zoom into distant objects, add a dedicated narrow-FOV camera instead.
- H.265 codec dependency: Storage and bandwidth savings are substantial (40–60% vs. H.264), but requires your VMS and archive infrastructure to support H.265 decoding. Older or budget-tier VMS platforms may force H.264 fallback, negating the storage advantage. Verify codec support before deploying at scale.
- IP67 rating, not submersion-rated: Outdoor sealing is solid, but IP67 means temporary immersion only—do not install below flood line or in permanently wet environments. Confirm operating temperature limits for your climate zone (the datasheet specifies the range; outdoor mounting in extreme heat or cold requires verification).
The 02944-001 is well-suited to perimeter fencing, traffic intersections, and large parking areas where you need wide situational awareness and the ability to zoom into forensic detail across the entire scene. The ARTPEC-8 DLPU analytics remove the guesswork from post-incident search—filter by object class and direction, not just time range. If your deployment prioritizes stitched 180° or 360° panoramic beauty shots over forensic resolution, or if you need sub-second PTZ tracking, consider a traditional pan-tilt or lower-megapixel ultra-wide fixed camera instead.
