Discontinued — No Longer Available New
This model has been discontinued by Axis. Shop current Axis products → or see the recommended alternatives below.

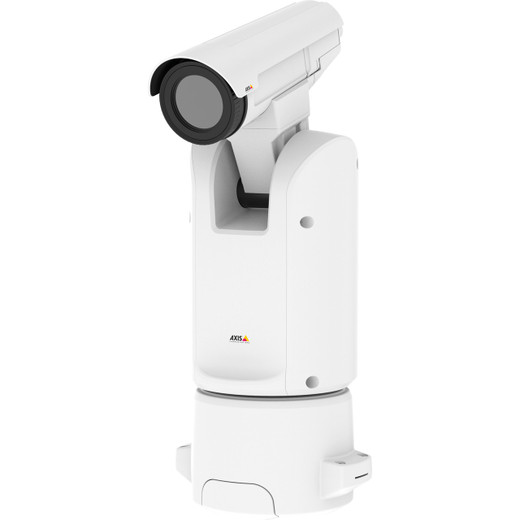

Axis Q8642-E High-Speed PTZ Thermal Outdoor IP Camera
The Axis Q8642-E is a high-performance thermal PTZ camera engineered for outdoor perimeter security and critical infrastructure monitoring. By combining uncooled microbolometer thermal imaging with motorized pan-tilt-zoom control, this camera delivers reliable threat detection across 24/7 conditions—eliminating dependency on visible light and providing consistent surveillance through fog, smoke, and darkness where traditional cameras are ineffective.
Key Features
- Thermal imaging with 640×480 resolution (up to 800×600 max) and uncooled microbolometer sensor
- High-speed 360° endless pan with ±90° to +45° tilt for rapid area coverage
- 60 mm focal length with 10° horizontal and 7.7° vertical field of view
- Vehicle detection range up to 5,623 meters at 1.5 pixel threshold
- 30 fps frame rate for smooth real-time monitoring
- PoE-powered with H.264 video compression and Zipstream support for bandwidth optimization
- IP66-rated weather-resistant enclosure rated for -40°C to +60°C operation
- 4 alarm inputs/outputs for integrated event triggering
- ONVIF Profile G compliance for multi-vendor system integration
- Guard tour preset position capability for autonomous surveillance routines
Technical Specifications
Imaging & Detection: The 640×480 thermal sensor with uncooled microbolometer technology detects heat signatures independent of ambient lighting, enabling identification of people and vehicles at extreme distances. The 60 mm lens and narrow field of view (10° H × 7.7° V) enable focused monitoring of specific high-value zones while the 360° pan-tilt range provides complete perimeter coverage from a single mounting point.
Video Delivery & Storage: H.264 compression paired with Axis Zipstream technology reduces bandwidth and storage demands without sacrificing image quality. The camera supports local storage and integrates analytics capabilities for automated event detection and response.
Reliability & Deployment: IP66 weatherproofing ensures continuous operation in harsh outdoor environments. PoE simplifies installation by eliminating separate power runs. Signed firmware and ONVIF Profile G support provide security and interoperability across professional surveillance platforms.
Applications
- Perimeter fence and boundary monitoring for industrial and military sites
- Port, airport, and critical infrastructure protection
- Oil and gas pipeline security
- Border surveillance and remote area monitoring
- High-value asset tracking in outdoor storage yards
- Emergency response and threat assessment
The Q8642-E represents a premium solution for organizations requiring detection capabilities beyond the limits of visible-light surveillance. Its extended detection range (5+ km for vehicles) and thermal-independent operation make it especially valuable in security-critical applications where lighting conditions are unpredictable or adversarial. The combination of motorized pan-tilt control with narrow optics allows security teams to focus on specific threats rather than passive wide-area coverage.
However, the narrow field of view and 10° horizontal span means effective deployment requires careful site planning and possible multi-camera coverage strategies for large perimeters. PoE delivery and H.264/Zipstream efficiency reduce infrastructure burden compared to legacy thermal systems, while ONVIF Profile G compliance ensures vendor flexibility for system expansion and integration.
Download Product Datasheet (PDF)
