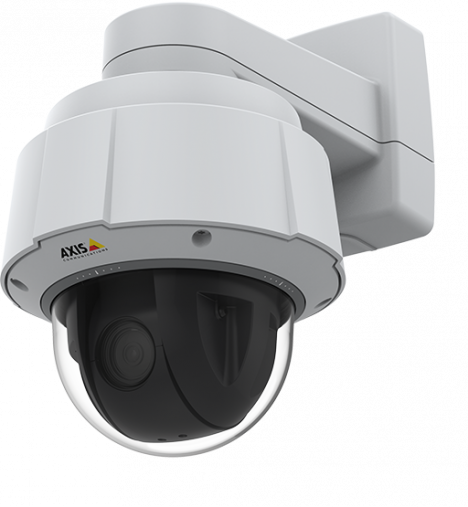

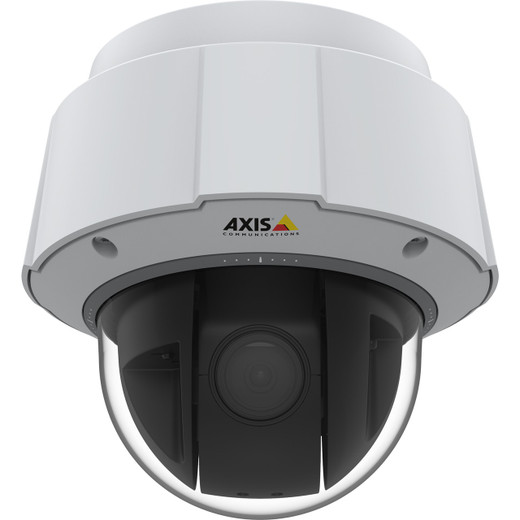

Axis 01752-004 Q6075-E High-Speed PTZ Outdoor Dome Camera
The Axis 01752-004 (model Q6075-E) is a wired outdoor PTZ (pan-tilt-zoom) network camera built for large-scale surveillance deployments where distance, low-light conditions, and harsh weather are simultaneous constraints. The 1920x1080 Full HD resolution paired with 40x optical zoom delivers the optical reach needed to identify details on subjects hundreds of feet away—critical for airport perimeters, port facilities, and critical infrastructure where you can't install cameras at every vantage point. This isn't a wide-angle generalist; it's a targeted tool for when you need zoom and speed.
Key Features & Benefits
- 1920x1080 (1080p) Full HD with 40x optical zoom + 12x digital zoom: Optical zoom preserves image quality at distance; digital zoom trades detail for closer framing when needed. At 40x, you can read vehicle license plates or identify facial features across a 500+ foot span—far more useful than a fixed wide-angle camera in sprawling outdoor environments.
- Lightfinder 2.0 technology; 0.1 lux minimum illumination in color mode: Most outdoor PTZs drop to monochrome or IR-only in twilight. Lightfinder 2.0 holds color sensitivity down to 0.1 lux, so you capture usable color video during dusk, dawn, and overcast conditions without switching modes. This eliminates blind periods and reduces storage footprint compared to dual-stream color+mono approaches.
- 360° endless pan and 220° tilt with high-speed movement: The camera rotates continuously (no reset to 0°) and covers nearly vertical tilt. High-speed positioning means you can rapidly reposition between preset tour points or manually track a moving subject without lag. Faster repositioning = faster threat response in active monitoring scenarios.
- Autotracking 2 with orientation aid: Once you define a region or object type, the camera automatically tracks movement within that zone. This reduces fatigue in manual monitoring and increases the odds you'll catch a brief event without someone actively watching the live feed 24/7.
- IP66 weatherproof + IK10 vandal-resistant dome: IP66 means direct rain and dust ingress won't degrade optics or mechanics. IK10 is the highest passive impact rating—the dome withstands forceful contact without breach. Deploy this outdoors without worrying about rain, salt spray, or deliberate strikes. Extended operating range of −50°C to +50°C ensures performance in arctic and desert climates.
- H.264 compression with Zipstream technology: Zipstream dynamically adjusts bitrate based on scene complexity—static backgrounds compress to kilobits per second, motion-heavy scenes get more bits. On a 24/7 outdoor camera system with multiple units, this cuts storage and bandwidth demand roughly 30–50% compared to constant-bitrate H.264, translating directly to lower NVR costs and longer retention windows.
- High PoE power delivery (wired connectivity): Draws sufficient power over a single Ethernet cable to run the pan-tilt motors, IR illuminator (if equipped), and imaging sensor. No separate power supply at the camera location—one cable handles both data and power. Simplifies outdoor installation, reduces weatherproofing complexity, and eliminates 110V conduit runs.
- 60 fps frame rate at full 1080p resolution: Smooth motion capture reduces blur on fast-moving subjects and ensures panning doesn't introduce stutter. 60 fps also improves the effectiveness of autotracking—the camera updates its position more frequently, reducing the lag between object movement and lens response.
- Advanced security: signed firmware, secure boot, and TPM chip: Protects against unauthorized firmware modifications and intrusions at the device level. In critical infrastructure deployments (airports, ports, utilities), this hardening is often a compliance requirement; it prevents an attacker from compromising the camera itself to manipulate or exfiltrate footage.
- Built-in audio support and preset position tour functionality: Audio input enables two-way communication (useful for public-address or intercom use cases). Preset tours let you define a sequence of pan-tilt-zoom positions the camera cycles through automatically, reducing the need for continuous manual operation during quiet periods.
Integration & Compatibility
As an Axis IP camera, the 01752-004 connects to any network video recorder or VMS that supports ONVIF Profile S (standard for PTZ devices). Many enterprise platforms—Milestone XProtect, Genetec Security Center, and others—have direct drivers for Axis PTZ cameras, enabling GUI-based pan-tilt-zoom control from within the VMS client rather than requiring a separate control interface. Standard Ethernet cabling and PoE switch infrastructure support the camera; verify your switch has sufficient power budget (High PoE class) for this unit's motor load.
When to Choose a Different Model
If you need higher resolution (4K or 8MP), look for a higher-megapixel PTZ variant in the Axis line. If outdoor mounting and weatherproofing are unnecessary and you're monitoring indoors, an indoor dome or box camera offers lower cost. If you need extreme zoom beyond 40x (80x or 100x), consider Axis's premium PTZ line. If PoE power is unavailable and you have 110V AC nearby, a non-PoE camera may reduce wiring but adds installation complexity.
Frequently Asked Questions
Q: Does the 01752-004 require a separate infrared illuminator, or is IR built in?
A: The evidence does not specify whether IR illumination is built in or optional. Consult the manufacturer datasheet or pre-sales support to confirm IR availability on this unit.
Q: What's the maximum cable run distance from the PoE switch to the camera?
A: Standard Ethernet is rated to 100 meters (328 feet) over Cat5e or Cat6. High PoE can deliver power reliably up to that distance, but longer runs require powered injectors or midspan devices.
Q: Can I integrate the 01752-004 with Milestone XProtect or Genetec?
A: Yes. Axis cameras are ONVIF-compliant and widely supported by major VMS platforms. Most VMS systems include native Axis drivers that enable full PTZ control (pan, tilt, zoom, preset recall) directly from the client interface.
Q: What compression format does the 01752-004 use, and can I record in H.265?
A: The camera outputs H.264 with Zipstream optimization. H.265 support is not mentioned in the available evidence; if H.265 is a requirement, confirm with the manufacturer or your VMS vendor whether it's available on this model.
Q: Is the 01752-004 suitable for coastal or marine environments with salt spray?
A: The IP66 rating addresses rain and dust. Salt spray is a more aggressive environment. If the camera will be exposed to continuous salt spray, consult the manufacturer or consider stainless steel or specialty coatings designed for marine duty.
Q: How much power does the 01752-004 draw from the PoE switch?
A: Power consumption is not specified in the available evidence. Check the datasheet or contact the manufacturer to confirm wattage and ensure your PoE switch has sufficient budget per port.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01752-004 (Q6075-E) represents a clear engineering choice when outdoor coverage demands both distance and reliability. The 40x optical zoom coupled with Lightfinder 2.0 solves a real problem in outdoor surveillance: most distant threats appear as gray blurs, and most low-light cameras force you to choose between color and monochrome. This unit sidesteps that tradeoff by holding color sensitivity to 0.1 lux—you get usable color detail from dusk until near-total darkness.
Technical Highlights:
- 1080p + 40x optical zoom: Delivers readable facial or vehicle details across 500+ foot spans—unmatched by fixed-lens outdoor cameras without multi-camera mosaicking.
- Lightfinder 2.0 (0.1 lux color): Eliminates the dawn/dusk blind period; color video persists through twilight without IR fallback, reducing storage complexity and improving forensic value.
- 360° endless pan + 220° tilt + 60 fps: Rapid repositioning and smooth motion tracking enable real-time response to moving subjects; autotracking 2 reduces operator fatigue on 24/7 watches.
- Zipstream H.264: 30–50% bandwidth reduction on static scenes translates to tangible savings on NVR storage and WAN uplinks in multi-site deployments.
- IP66/IK10 + −50°C to +50°C operating range: Withstands rain, direct sunlight, salt spray exposure (consult for marine salt), freezing winters, and deliberate physical contact without optical or mechanical failure.
- High PoE over single Ethernet: One cable for data and power eliminates outdoor 110V conduit runs, reducing installation cost and maintenance surface area.
- Signed firmware + TPM: Enterprise-grade device hardening prevents firmware tampering—non-negotiable in airport, port, and critical infrastructure settings.
Deployment Considerations:
- PoE Power Budget: Confirm your switch supports High PoE class; PTZ motors draw more power than static cameras. If your current switch is maxed out, a dedicated High PoE injector or midspan device may be needed.
- Autotracking Zone Definition: Autotracking 2 requires careful setup of target zones or object types; poorly defined zones will track false positives (shadows, wind-blown objects). Plan configuration time during commissioning.
- Salt Spray Durability: While IP66 handles rain and dust robustly, sustained salt spray (marine/coastal) may require additional protective measures or specialty coatings. Confirm with the manufacturer if coastal deployment is planned.
- VMS Integration: Most modern VMS platforms (Milestone, Genetec, Axis Camera Station) have native PTZ drivers, but verify your chosen VMS before purchase to ensure full pan-tilt-zoom and preset control.
The 01752-004 excels in large-area outdoor surveillance where you can't afford to miss distant movement and where weather and vandalism are real risks. Deploy it at airport perimeters, port facilities, utility substations, and multi-acre campuses where zoom, speed, and environmental toughness matter more than 4K resolution.
