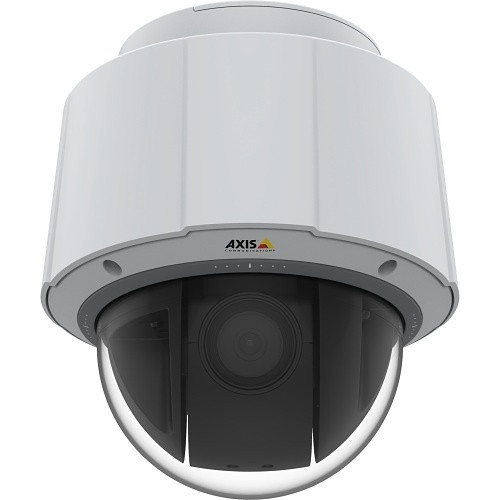

Axis Q6074 4MP High-Speed Outdoor PTZ Dome - 01968-004

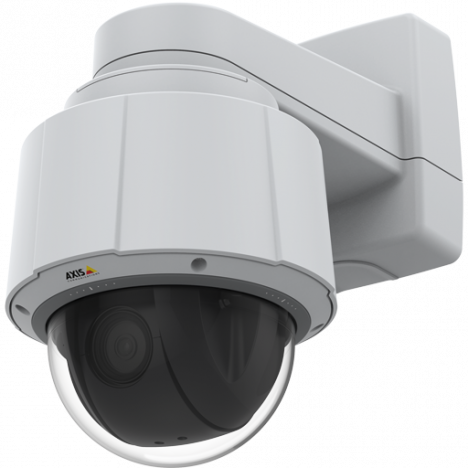

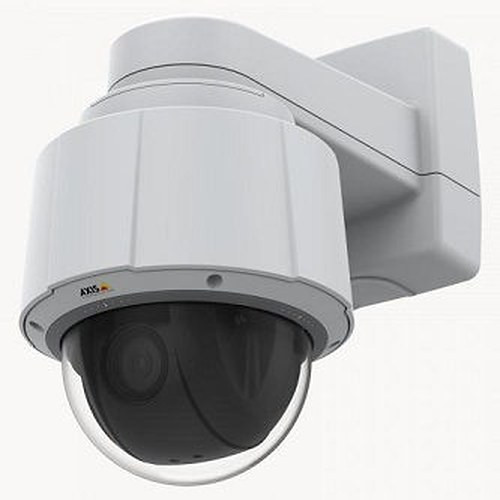

Axis 01968-004 Q6074 4MP High-Speed Outdoor PTZ Dome Camera

The Axis 01968-004 is a professional outdoor pan-tilt-zoom dome engineered for high-speed tracking and large-area surveillance in transportation, perimeter, and public-space deployments. This 4MP unit combines a 30x optical zoom (4.25–127.5mm focal length) with automated outdoor surveillance capabilities, delivering the reach and speed needed to track moving subjects across expansive areas without manual intervention.

Key Features

• 4MP resolution with 1/2.8" CMOS sensor: Delivers detailed imaging at full resolution while allowing 12x digital zoom on top of the 30x optical zoom. At 60 fps, you get smooth motion capture for high-speed PTZ movements and fast-moving subjects — critical when recording traffic violations or tracking personnel across open areas.
• 30x optical zoom (4.25–127.5mm, 63.8° to 2.6° horizontal FOV): Identifies detail at distance without requiring multiple fixed cameras. The tight 2.6° field narrows to streetlamp-mounted deployments covering specific corridors or entry points.
• 360° endless pan, 180° tilt range: Covers the full hemisphere above the mounting point. Endless pan eliminates mechanical creep and allows continuous sweeping patterns without reset delays.
• Lightfinder 2.0 technology (0.1 lux color performance): Maintains true color video in twilight and artificially lit outdoor spaces — a real advantage over IR-dependent cameras when you need forensic color detail for identification or evidence review. Eliminates the cost and maintenance burden of separate infrared illuminators.
• Autotracking 2 with orientation aid: Automatically locks onto and follows moving objects, dramatically reducing operator load in 24/7 monitoring scenarios. Orientation aid helps maintain subject framing as the camera tracks across different angles.
• IP52 rating, operating range 0–50°C: Protects against dust and water spray but not full jet or immersion. Operates reliably across temperature swings from freezing to desert heat without image degradation — meaningful for unmanned outdoor deployments in climates with seasonal extremes.
• PoE Class 4 power delivery: Draws under 90W via single Ethernet cable — typical integration with enterprise PoE+ switches without dedicated power supplies or redundant wiring runs.
• H.264 compression with Zipstream technology: Intelligently compresses video by prioritizing motion areas and discarding static backgrounds. On a 24/7 outdoor PTZ, this cuts storage and bandwidth costs by 30–50% depending on scene complexity — real savings on large multi-camera NVR systems.
• Wide Dynamic Range (WDR): Handles high-contrast outdoor scenes (bright sky against dark ground) without washing out or crushing shadow detail. Particularly valuable on traffic or public-space monitoring where lighting can change minute to minute.
• Electronic Image Stabilization (EIS): Eliminates vibration artifacts during rapid pan/tilt movements or on wind-prone pole mounts. Keeps video crisp even on unstable mounting surfaces.
• Built-in audio with audio detection: Records ambient sound and can trigger events on loud noises (glass breaking, shouting). Useful in event monitoring or public-space applications requiring evidence of verbal confrontation alongside video.
• Secure Boot, signed firmware, TPM 2.0 support: Protects firmware integrity against unauthorized modifications and boot-level attacks. Meets enterprise cybersecurity requirements for critical infrastructure and government deployments.

Integration & Compatibility

The 01968-004 integrates with Axis management platforms and third-party VMS systems via ONVIF Profile S, T, and G support. Preset position tours allow automated patrol patterns, and the 4 configurable alarm input/output lines enable integration with external devices (gate controllers, alarms, auxiliary lighting). Works with NVRs and management software that support H.264 and ONVIF, including Milestone XProtect, Genetec, and Axis Camera Station.

When to Choose a Different Model

If your deployment requires IR illumination at ranges beyond 50 meters, consider a higher-power dedicated IR PTZ. If you need even longer focal reach, evaluate higher-megapixel variants in the Axis PTZ line that combine zoom with increased sensor resolution. For indoor-only applications or sites with controlled temperature ranges, cost-optimized fixed indoor dome cameras will be more economical.

Frequently Asked Questions

Q: Does the Axis 01968-004 require separate power, or can it run on PoE alone?

A: The 01968-004 runs entirely on PoE Class 4 (typically 60–90W depending on zoom and heating), so it requires a single Ethernet cable. No separate 12VDC or AC supply is needed. A standard PoE+ (802.3at) switch with sufficient power budget is sufficient.

Q: Is the Lightfinder 2.0 technology sufficient to replace infrared illumination?

A: Lightfinder 2.0 maintains color video down to 0.1 lux, which covers twilight and most artificially lit outdoor environments (parking lots, street lighting, building floods). True darkness (0 lux) still requires IR. If your site has any ambient light (street lights, security lighting), Lightfinder 2.0 eliminates the need for IR and provides superior forensic color detail.

Q: What is the difference between the 30x optical zoom and the 12x digital zoom?

A: The 30x optical zoom uses the lens to magnify the scene without loss of resolution. The 12x digital zoom crops and enlarges the existing 4MP image, reducing effective resolution and sharpness. Use optical zoom for primary framing; digital zoom only for additional magnification when optical is insufficient.

Q: Can the Axis 01968-004 track moving subjects automatically?

A: Yes. Autotracking 2 with orientation aid automatically detects and follows moving objects in the frame, locking pan, tilt, and zoom to maintain subject framing. This requires no manual operator input and significantly reduces staffing burden in continuous surveillance scenarios.

Q: Does the camera support two-way audio?

A: The 01968-004 has built-in audio input, audio detection capabilities, and audio output support, enabling two-way communication if your VMS and network architecture support it. Verify with your VMS vendor for codec and buffering compatibility.

Q: What is the warranty on the Axis 01968-004?

A: Axis standard warranty is 3 years from shipment. Check with your distributor or integrator for extended warranty or service contract options specific to your region or deployment.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 01968-004 represents mature outdoor PTZ engineering optimized for staffing efficiency and forensic clarity. This isn't a budget entry; it's built for deployments where 24/7 unmanned tracking and automatic subject lock are non-negotiable. Autotracking 2 with orientation aid will save you significant operator labor — no more manual joystick hunting of fast-moving subjects across open areas. The combination of Lightfinder 2.0 (maintaining color at 0.1 lux) and WDR eliminates the false economy of IR-dependent designs in mixed-light outdoor scenes like parking facilities and traffic corridors, where color detail preservation is critical for forensic review and operator situational awareness.

Technical Highlights:

• 60 fps at full 4MP resolution: Ensures smooth motion capture during high-speed pan/tilt maneuvers and when tracking fast-moving subjects. On slower movement (perimeter scans, parking-lot monitoring), frame rate is not a constraint; on traffic intersections or event response, 60 fps eliminates motion blur that would muddy license-plate or facial detail.
• Zipstream H.264 with intelligent motion prioritization: Reduces bandwidth and storage by 30–50% in outdoor scenes without sacrificing quality on moving objects. On a typical 24/7 three-camera PTZ deployment spanning 30 days, this cuts NVR storage requirements measurably — real money when you're sizing disk.
• PoE Class 4 (typically 60–90W): Single-cable installation means fewer conduit runs and simpler power budgeting than IR-augmented designs. On a rooftop or pole mount, that's one less failure point and maintenance route.
• IP52 protection across 0–50°C operating range: Dust and water spray resistance without full IP67 (which adds cost and thermal design complexity). The wide temperature range handles seasonal swings without image degradation — critical in northern climates or high-altitude sites where heating/cooling loads are severe.

Deployment Considerations:

• IP52 is splash-resistant but not jet-washable or submersible — if your site requires high-pressure cleaning or dusty industrial conditions, verify that IP52 is adequate for your environment or plan protective housing.
• Lightfinder 2.0 requires at least 0.1 lux ambient light. If your deployment is near total darkness (underground parking, interior warehouses with no windows), plan separate IR or auxiliary lighting — the 01968-004 will fall back to monochrome and lose the color advantage.
• Autotracking requires a clear line of sight and reasonable subject contrast. In heavy rain, fog, or low-contrast scenes (white truck on white background), autotracking confidence may drop — monitor initial deployments and adjust sensitivity or fall back to preset tours as needed.

The 01968-004 excels in traffic enforcement, perimeter monitoring, and public-space event coverage where operator labor is a real cost and color forensic detail drives prosecution. If your integration team has experience with Axis PTZ and ONVIF-based VMS, this camera integrates cleanly with minimal commissioning friction.
