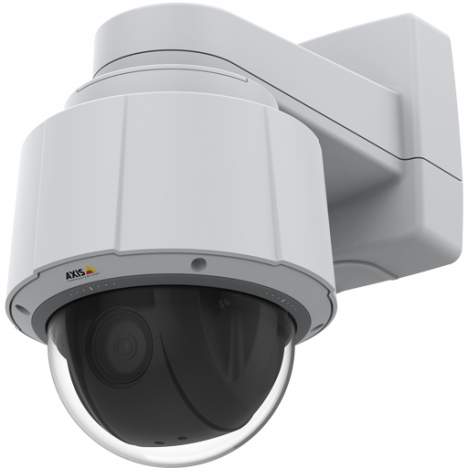

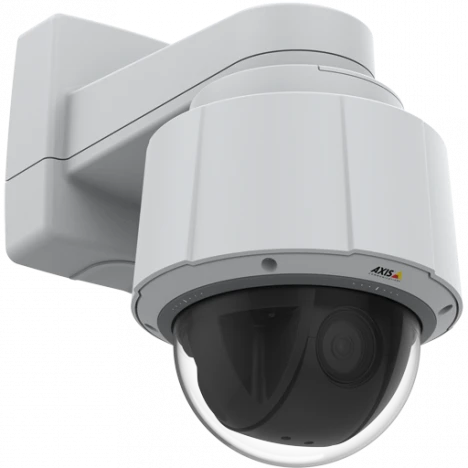

Axis 01750-004 Q6075 4MP High-Speed PTZ Dome Camera
The Axis Q6075 (model 01750-004) is a professional PTZ dome engineered for large-area surveillance in mixed indoor/outdoor environments. Built around a 1/2.8" CMOS sensor delivering 4MP resolution, the Q6075 combines 40x optical zoom with intelligent autotracking and low-light color performance—critical capabilities for parking structures, transportation hubs, retail floors, and city-wide deployments where zoom speed and target retention matter.
Key Features
- 4MP resolution at 1920x1080 output up to 50/60 fps — sufficient detail for identification-level work across mid-to-large spaces without overwhelming storage. The 1/2.8" CMOS sensor captures full horizontal field of view at maximum zoom.
- 40x optical zoom (4.25–170mm focal length) with 12x digital zoom — allows a single camera to cover an entire parking lot or transit platform while maintaining resolution at distance. No software interpolation; the optical zoom preserves edge sharpness critical for facial and license-plate recognition scenarios.
- Autotracking 2 with orientation aid PTZ system — automatically follows detected motion across the scene without manual intervention. Reduces operator fatigue on 24/7 monitoring and enables unattended perimeter coverage. Orientation aid prevents pan/tilt jitter when tracking moves between zones.
- Lightfinder 2.0 technology with 0.1 lux minimum illumination (color mode) — delivers color detail in dusk and dawn lighting where traditional IR-only cameras lose color information. Meaningful for retail floor monitoring and parking structures where context (vehicle color, clothing, signage) aids investigation. Falls back to IR for full darkness.
- IR night vision with optimized illumination — 24/7 operation without reliance on scene ambient light. Complements Lightfinder during full dark periods.
- Wide Dynamic Range (WDR) — balances bright and dark areas in a single frame, critical when monitoring glazed entrances, glass-fronted retail, or mixed sun/shadow environments common in parking facilities.
- 360° endless pan and 180° tilt rotation — full hemisphere coverage from a single mounting point, eliminating blind spots in perimeter or plaza applications.
- Axis Zipstream compression technology — reduces bitrate and storage consumption by up to 50% versus standard H.264, directly lowering NVR capacity requirements and bandwidth on constrained links. Critical when deploying dozens of PTZ cameras on a shared network.
- H.264 video compression with audio support and audio detection — mature codec ensuring compatibility with legacy and modern NVR ecosystems. Audio input supports event triggering (glass break, shouting) integrated with video guard tour.
- IP52 weather rating — splash and dust resistant for semi-sheltered outdoor mounting (building overhangs, covered entry canopies). Not full-submersion rated; permanent exposed installations benefit from additional weatherproofing shrouds.
- PoE Class 4 powered (under 13W typical draw) — standard 802.3af PoE supplies power without dedicated 24VDC conditioning. Simplifies cabling compared to older high-draw PTZ cameras, reducing infrastructure cost.
- 4 alarm inputs/outputs — integrates external sensors (door contacts, motion detectors, panic buttons) directly into the camera for synchronized event logging and edge-based alerting.
- Secure Boot and TPM security features — protects firmware integrity against tampering and unauthorized modification, important in high-security deployments.
Integration & Compatibility
The 01750-004 conforms to ONVIF Profile S/T/G standards, ensuring interoperability with mainstream Axis IP cameras and third-party network video recorders. Preset position guard tour functionality allows programmable multi-zone patrol without manual control, improving efficiency in unattended or low-staffing scenarios. Integration with PoE power delivery infrastructure eliminates separate power runs, reducing installation labor.
Deployment Context
The Q6075 excels in large open-area surveillance where a single camera must handle both wide overview and detailed zoom. Parking structures benefit from the 40x zoom and autotracking to identify vehicle occupants and license plates from a fixed ceiling or pole mount. Retail superstores use the camera's broad coverage and rapid repositioning to follow loss-prevention events across multiple departments. Transportation facilities (bus stations, rail platforms) leverage the PTZ and autotracking for real-time threat response without adding cameras. Consider a higher-specification PTZ variant if you require 8MP resolution or thermal night vision; opt for a fixed dome camera if your deployment is confined to a single fixed zone.
Frequently Asked Questions
Q: What is the maximum frame rate at 4MP on the Axis 01750-004?
A: The Q6075 delivers 50/60 fps (region-dependent) at 1920x1080 output. Full 4MP (2688×1512) is supported at lower frame rates depending on compression and bitrate configuration.
Q: Does the Q6075 work with Milestone XProtect and other third-party VMS platforms?
A: Yes. The 01750-004 supports ONVIF Profile S/T/G and standard HTTP/RTSP streams, enabling integration with any ONVIF-compliant NVR or VMS, including Milestone, Genetec, and Hanwha SmartVMS.
Q: What is the IR range, and when should I rely on Lightfinder instead?
A: The Q6075 includes optimized IR illumination for full darkness operation. Lightfinder 2.0 is most effective in dusk/dawn or low-ambient-light scenes where you want color detail; switch to IR for total darkness or to avoid light pollution. Both modes are automatic via day/night switching.
Q: Is the Q6075 suitable for permanent outdoor mounting without additional weatherproofing?
A: The IP52 rating covers splash and dust but not heavy rain or submersion. For permanent exposed outdoor locations (parking lot poles, building facades without overhang), add a weatherproof camera shroud or enclosure to extend service life.
Q: How much bandwidth does the Q6075 consume with Zipstream enabled?
A: Zipstream typically reduces bitrate 40–50% versus standard H.264 on the same scene complexity. Exact savings depend on motion and scene detail; consult the datasheet or run a trial recording on your network for precise planning.
Q: What is the warranty on the Axis 01750-004?
A: Axis provides a standard 3-year manufacturer warranty covering defects in material and workmanship. Check with the specialty retailer for extended warranty options (5-year or 7-year available in most markets).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01750-004 represents a pragmatic balance between PTZ capability and total cost of ownership. The 40x optical zoom and Autotracking 2 are the primary assets—they let you deploy a single dome where you'd otherwise need two or three fixed cameras plus a guard operator. Lightfinder 2.0 at 0.1 lux is underrated; it preserves color context in early morning and dusk, which matters for retail floor loss prevention and parking structure investigations where vehicle or clothing color can narrow suspect profiles by 70–80%.
Technical Highlights:
- 40x optical zoom (4.25–170mm): Covers 180° wide plaza overview down to 6–8 feet facial detail from a single mount point. No software interpolation; edge sharpness is preserved at maximum zoom, critical for license-plate and facial recognition workflows.
- Zipstream technology: Reduces storage overhead by 40–50% versus standard H.264 across typical 24/7 scenes. On a 10-camera parking deployment, this can drop NVR capacity from 16TB to 8–10TB, cutting hardware cost and power consumption.
- IP52 weather rating with PoE Class 4: Semi-protected outdoor mounting (covered entry, building overhang) without high-power conditioning. Standard 802.3af PoE supplies power; no 24VDC relay or separate supply cabinet required—real installation savings on cabling and electrical labor.
Deployment Considerations:
- IP52 is splash and dust resistant, not submersion. Exposed rooftop or unsheltered pole mounts need a weatherproof shroud or enclosure; factor $200–400 into project cost.
- Autotracking works well on clear, moving subjects (vehicles, pedestrians) in moderate to bright scenes. Crowded or low-contrast backgrounds (black clothing on dark wall) can cause temporary loss of lock. Test in your actual lighting before committing to unattended autotracking for critical alerts.
- 360° endless pan is convenient, but verify mounting height and surrounding infrastructure (gutters, cables, structures) don't create snag points on the full rotation.
The 01750-004 fits best in parking structures, building lobbies with multi-floor sightlines, and retail superstores where a single PTZ dome can handle both overview and detail. It's not the choice if you need fixed-point high-resolution surveillance or indoor-only ultra-low-light color (where a fixed 4MP or higher camera with larger sensor might be better). But for dynamic, wide-area coverage where operator response time matters, the zoom, autotracking, and Lightfinder justify the PTZ complexity.
