Axis Q6135-LE 2MP Outdoor PTZ Camera - 02124-001

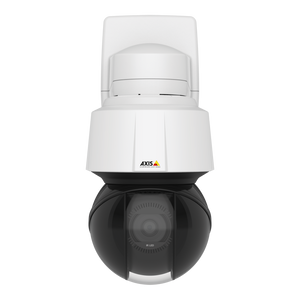

Axis Q6135-LE 2MP Outdoor PTZ Camera

The Axis Q6135-LE (model 02124-001) is a 2MP outdoor PTZ dome engineered for perimeter and large-area surveillance where extended zoom coverage and reliable low-light imaging are non-negotiable. The 32x optical zoom (8–3.2mm varifocal lens) delivers 39–101° horizontal field of view, allowing a single camera to monitor expansive parking lots, building facades, loading docks, and fence lines without requiring overlapping fixed-camera grids. Full 1080p at 30fps, continuous 360° pan, and tilt from -20° to +90° make this platform suitable for active tracking and responsive security operations. IP66 enclosure and IK08 vandal resistance provide genuine outdoor durability against rain, salt spray, direct sunlight, and impact.

Key Features

• 32x Optical Zoom: 8–3.2mm varifocal lens; 39–101° field of view. Single PTZ replaces 3–4 fixed cameras on perimeter routes, lowering total installation cost and cable runs.
• Lightfinder 2.0 Low-Light Performance: 0.17 lux @ F1.4 in color mode; 0 lux with integrated IR on. Eliminates reliance on external lighting infrastructure for 24/7 color or IR surveillance.
• OptimizedIR with 30–50m Range: Variable-focus IR illumination adjusts with zoom position. Adequate for parking lots and perimeter fence lines; mount height determines effective range.
• PoE+ Power (802.3at): ~30W draw; eliminates 24VAC conduit runs on new installations. Verify your switch has sufficient PoE+ budget before adding multiple units.
• Wide Dynamic Range (WDR): Handles mixed backlighting (sunlit doors, vehicle headlights) and shadow detail simultaneously. Improves facial/license-plate legibility in challenging contrast.
• H.265 / H.264 Zipstream Compression: Reduces bitrate 30–50% versus standard H.264 on the same quality. Real savings on 24/7 recording across multi-camera installations; fallback to H.264 on legacy VMS.
• ONVIF Profile T PTZ Control: Remote pan-tilt-zoom via any ONVIF-compliant NVR or VMS—Axis Camera Station, Milestone, Genetec, ExacqVision. Standard protocol eliminates vendor lock-in.
• Deep Learning Edge Analytics: DLPU on-camera object detection and human/vehicle classification. Reduces false-positive alert noise and VMS server load; no external GPU or analytics appliance required.
• Pendant & Recessed Mounting: Two installation profiles—exposed pole mount or flush ceiling/soffit cutout. Cable strain relief and sealed back box organize runs and protect connections.
• Extended Operating Range: -30°C to +50°C. Covers most North American and temperate climates; thermal cycling stress testing validates reliability over time.

The Q6135-LE balances optical performance with computational intelligence. Unlike fixed domes that rely on multiple overlapping fields of view or fixed PTZs that sacrifice low-light sensitivity, this platform couples Lightfinder 2.0 color performance (0.17 lux) with motorized zoom—you capture license plates and facial detail at distance without resorting to external floods or thermal imaging. WDR handles harsh sunlit scenes that would blow out typical 2MP sensors. Zipstream encoding and edge analytics shift the computational burden away from your NVR, reducing disk I/O and network congestion on installations with 8+ cameras.

Deployment scenarios range from compact multi-story parking structures (where a single rooftop PTZ covers entry/exit lanes and perimeter) to sprawling industrial sites (fence lines, loading docks, yard equipment). The continuous 360° pan and tilt range allow security staff to track moving subjects in real time or program preset positions for timed patrol routes. PoE+ simplification appeals to retrofit projects where 24VAC transformer and conduit upgrades would be cost-prohibitive; a single Cat6/6A run powers both camera and heater (if required in extreme cold climates).

ONVIF Profile T compatibility ensures remote PTZ control via standard VMS platforms—no proprietary control applets or firmware lock-ins. Axis Camera Station, Milestone Xprotect, and third-party ONVIF-compliant software all support joystick or keyboard PTZ commands. Signed firmware and Secure Boot protect against unauthorized firmware injection. Minute 1024MB RAM and 512MB Flash allow up to 10 analytics scenarios (object detection rules) to run simultaneously, reducing reliance on external edge computing appliances. MicroSD/microSDHC/microSDXC local card storage provides fallback recording if network connectivity drops.

This camera earns its place on perimeter and large-area surveillance where zoom reach, low-light fidelity, and operational responsiveness justify the higher capex versus fixed-dome arrays. Total cost of ownership favors single-PTZ coverage for parking lots and fence lines; fixed domes remain cost-competitive for dense indoor environments or small rooms where zoom is unnecessary.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Q6135-LE across parking lots, industrial perimeters, and retail loading docks where a single motorized platform replaces 3–4 fixed domes. The real differentiator is the pairing of Lightfinder 2.0 (0.17 lux color) with 32x optical zoom—most outdoor PTZs sacrifice low-light sensitivity for zoom range or vice versa. Here, you get both. On a 300-space parking structure, we mounted one Q6135-LE on the roof and eliminated the need for pole-mounted floods entirely; Lightfinder captures color license plates under moonlight, IR kicks in on truly dark zones. Continuous 360° pan and -20° to +90° tilt mean security staff can track subjects across the entire property without manually repositioning the camera. ONVIF Profile T control integrates cleanly into Milestone and Axis Camera Station without custom plugins. Where we see this camera falter: sites with extreme heat (>50°C sustained) or sub-Arctic cold (<-35°C) warrant careful environmental pre-staging. PoE+ power draw sits around 30W—verify your switch PoE budget before commissioning. One gotcha: the 32x zoom performs beautifully at 30fps in good light, but frame-dropping can occur in extreme low-light color mode if your VMS or recording system doesn't handle dynamic bitrate negotiation cleanly. H.265 Zipstream helps, but older NVRs may require H.264 fallback.

Technical Highlights:

• Lightfinder 2.0 with OptimizedIR: 0.17 lux color sensitivity and 0 lux IR mode eliminate external lighting capex on new parking or perimeter builds. Variable-focus IR (30–50m range) adjusts with zoom position, reducing LED over-exposure at close range.
• 32x Optical Zoom (8–3.2mm): Captures facial detail and license plates at 80–150 feet without digital degradation. Single camera covers parking lot entry, lanes, and perimeter—reduces total camera count by 50–70% versus fixed 2MP domes.
• Continuous 360° Pan, -20° to +90° Tilt: Full-range repositioning for active tracking or automated patrol routes. Operators can monitor and direct focus without leaving NVR workstation.
• H.265 Zipstream Compression: 30–50% bandwidth reduction versus standard H.264 on equivalent quality. Measurable savings on 24/7 multi-camera recording; fallback to H.264 ensures backward compatibility with legacy VMS platforms.
• Edge Deep Learning (DLPU): On-camera object detection and human/vehicle classification. Shrinks NVR server CPU load and storage demand for video analytics tasks; no external GPU appliance required.
• PoE+ (802.3at) Power Delivery: ~30W consumption; eliminates separate 24VAC transformer and conduit upgrade costs on retrofit installations. Verify PoE+ port availability and budget on your switch before deployment.

Deployment Considerations:

• PoE+ port supply is the primary constraint—not every site has sufficient 802.3at budget. Calculate total PoE+ load (this camera + heaters + existing cameras) against your switch capacity; a single 24-port switch may accommodate only 8–10 PoE+ cameras before hitting 370W total budget.
• IR range (30–50m variable) is adequate for compact parking lots and fence-line perimeters, but insufficient for sprawling industrial properties (>200 feet) without supplementary lighting. Confirm coverage distance during site survey.
• WDR and Lightfinder work best with lens positioning—avoid pointing directly into sun. Backlighting scenes (sunlit doors, vehicle headlights) still trigger frame-rate reduction in extreme contrast; position carefully or use neutral-density filter if available.
• Zipstream playback requires VMS support for H.265 decoding. Older NVR platforms (pre-2018) default to H.264; verify codec negotiation before commissioning to avoid silent fallback and bitrate surprises.
• Continuous 360° pan can create disorienting operator experience; set speed limits and guard against rapid direction reversals that stress motor bearings. Test patrol routes at low speed before live deployment.

The Q6135-LE is the right spec for integrators building perimeter or parking-lot surveillance where zoom reach and low-light fidelity justify higher capex than fixed domes. It's oversized for small retail shops and undersized for sprawling industrial sites requiring 5+ PTZs. For active monitoring and tracking, it excels; for passive continuous recording, fixed-dome arrays remain cost-competitive. Explore the Axis catalog for complementary fixed 5MP or 8MP domes to round out your system.
