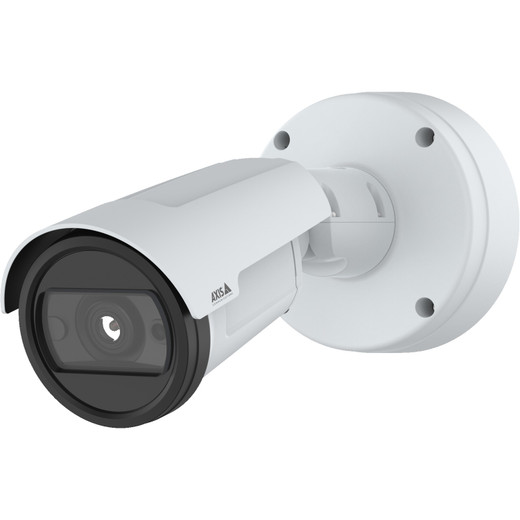

Axis 03181-001 2MP Outdoor AI IR Bullet Camera

The Axis P1475-LE (model 03181-001) is a 2 MP outdoor bullet camera engineered for perimeter, parking lot, and facility entrance surveillance where low-light imaging, reliable infrared coverage, and on-camera analytics are non-negotiable. This camera delivers 60 fps video — meaning fast-moving subjects like vehicles and personnel are captured with minimal motion blur, preserving details for forensic review or license plate recognition. The combination of Lightfinder 2.0 for near-dark color imaging and OptimizedIR for full-dark monochrome operation means you don't choose between day and night performance — you get both in a single deployment.

Key Features

• 2 MP resolution at 60 fps: Captures smooth, frame-by-frame detail of moving subjects. At this resolution and frame rate, you trade some megapixel count for responsiveness — meaning less lag in real-time alerting and faster evidence review. Ideal for mid-range outdoor applications where forensic quality matters more than wide-area license plate recognition at distance.
• Lightfinder 2.0 and Forensic WDR: Lightfinder preserves usable color video in near-darkness (0.1–1 lux environments) without amplifying noise like traditional gain-boost methods. Forensic WDR handles scenes with extreme bright/dark contrast — think a doorway with bright exterior sunlight and dark interior shadows — by processing the image to recover detail in both zones. Result: fewer blurry or washed-out scenes, less video loss, fewer gaps in your evidence timeline.
• OptimizedIR with 50 m range: When ambient light vanishes, built-in 850 nm infrared LEDs illuminate out to 50 meters (164 feet). This covers most courtyard and perimeter distances without supplemental lighting infrastructure. In complete darkness, the camera switches to monochrome and delivers clear, usable video — no blind spots at night, no separate IR flood lights to install or power.
• 3–9 mm varifocal lens with 115° to 35° FOV: A single lens covers both wide-angle perimeter sweeps (115°) and narrow telephoto detail work (35°). Installers can adjust field of view in the field without swapping lens modules, reducing inventory burden and speeding deployments. Telephoto mode supports facial and vehicle identification at distance.
• AI object classification and event detection: On-camera deep learning identifies persons, vehicles, and animals, then triggers alerts only when the configured object class appears. This cuts false alarms from weather shadows, wind-blown debris, or lighting fluctuations — a real operational win when your SOC is staffed lightly or managing hundreds of cameras.
• H.265, H.264, and AV1 codec support with Axis Zipstream: Zipstream intelligently reduces bitrate on static background areas while preserving detail on moving subjects. H.265 cuts file size roughly 40–50% versus H.264; AV1 pushes that further. On a 24/7 multi-camera installation, this translates to lower storage costs, less network congestion, and longer retention periods on the same recorder.
• Axis Edge Vault cryptographic protection: Signing and key operations happen on the camera itself, preventing man-in-the-middle attacks and ensuring firmware integrity. For installations requiring compliance reporting or audit trails, this eliminates a common vulnerability vector.
• IP66 and outdoor-rated construction: Direct rain, salt spray, and dust won't compromise the housing. The camera is sealed against weather but not submersion — skip this if you need underwater or fully submerged mounting (that requires IP67 or IP69K). Suitable for open rooftops, exterior walls, and high-traffic facility perimeters.

Integration and Deployment Context

The P1475-LE (03181-001) integrates via standard ONVIF Profile S streaming, meaning compatibility with VMS platforms like Milestone XProtect, Genetec Security Center, and others. Power delivery is straightforward: the camera draws approximately 13 W maximum, well within standard 802.3af PoE switch budgets, so you avoid separate power supplies at the mast or wall mount. For outdoor camera deployments requiring multiple units, this PoE efficiency stacks across dozens of cameras, keeping power infrastructure simple and cost-effective.

The varifocal lens and AI analytics reduce the need for multiple SKUs — one camera model covers wide coverage and detail work, and object classification handles alert filtering at the source rather than pushing all video to the backend for post-processing.

When to Choose a Different Model

If your deployment requires ultra-wide perimeter coverage (150°+) in a single shot, a panoramic or higher-megapixel variant in the Axis outdoor line may fit better. If you need submersion-rated performance (boat docks, water treatment plants), look to IP67/IP69K-rated alternatives. The 2 MP resolution is solid for most identification tasks, but if you're required to read vehicle license plates reliably from more than 60–80 feet away, a 4–5 MP or higher-zoom variant may be necessary.

Frequently Asked Questions

Q: Does the 03181-001 support two-way audio?

A: No. The P1475-LE is video-only. If you need audio integration, consider a paired audio module or a different model in the Axis line that includes audio input.

Q: What is the warranty on the P1475-LE (03181-001)?

A: Axis provides a 3-year limited warranty on hardware. Check your local distributor or reseller for extended coverage options and support terms.

Q: Can the 03181-001 be wall-mounted, or is it ceiling-only?

A: The P1475-LE is a bullet camera with a pendant-style mount, so it installs on walls, eaves, or roof edges. It is not designed for ceiling flush-mount.

Q: Does the P1475-LE (03181-001) work with Milestone XProtect or Genetec?

A: Yes. The camera supports ONVIF Profile S streaming and integrates with all major ONVIF-compatible VMS platforms, including Milestone and Genetec.

Q: What is the actual infrared range in practice — does it drop off at night?

A: The 50 m IR range is the stated capability in full darkness. Performance varies with reflectivity of the target object and atmospheric conditions; wet surfaces and fog reduce effective range. In typical outdoor environments (asphalt, concrete, vegetation), expect reliable coverage to 40–45 m.

Q: Can I adjust the IR brightness or turn it off?

A: Yes. Most Axis cameras allow IR control via the web interface or VMS — you can adjust intensity, enable/disable, or set automatic modes based on ambient light sensors.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The P1475-LE (03181-001) lands in a solid middle ground for outdoor surveillance: sufficient resolution and frame rate for forensic review without the storage overhead of 4–5 MP cameras, and proven low-light technology that doesn't require supplemental lighting infrastructure. The 2 MP at 60 fps is the right call for parking lots, service yards, and facility perimeters where motion blur matters and pixel density per meter is less critical than real-time responsiveness.

Technical Highlights:

• Lightfinder 2.0 + Forensic WDR: These are mature, field-proven technologies refined across thousands of Axis deployments in retail and municipal environments. Lightfinder preserves color in 0.1–1 lux conditions — that's twilight to streetlight-only scenarios — without the noise artifacts of older gain-boost methods. Forensic WDR handles extreme contrasts like a sun-facing doorway without clipping either the bright or dark areas.
• OptimizedIR with 50 m reach: Covers typical courtyard and perimeter distances. In absolute darkness, you get monochrome but usable footage. The trade-off: infrared doesn't penetrate foliage or heavy weather as well as visible light, so dense tree lines or heavy fog will reduce practical range to 30–35 m — a reality for any IR camera, not unique to this model.
• Varifocal 3–9 mm lens: Offers true field-of-view flexibility — 115° wide for area coverage, 35° narrow for detail. No lens swap needed; one SKU covers both scenarios. This simplifies logistics for integrators managing variable perimeter lengths.
• H.265 + Zipstream efficiency: Bitrate reduction is meaningful in 24/7 recording. H.265 cuts file size roughly 40–50% versus H.264 on typical outdoor scenes; Zipstream adds another 15–25% by reducing background encoding. On a 60-camera deployment at 2 MP 60 fps, that's the difference between 10 TB and 4–5 TB of storage for the same retention window.
• Edge Vault cryptographic signing: Protects against firmware tampering and man-in-the-middle attacks. For regulated environments (airports, financial facilities), this is non-negotiable; for general commercial use, it's a security best practice.

Deployment Considerations:

• 13 W power draw is PoE-friendly, but verify your switch's total budget if deploying 20+ cameras on a single switch. A single PoE+ switch can handle roughly 12–15 of these cameras depending on switch class and VLAN configuration.
• The 2 MP resolution is sufficient for identification tasks at 50–60 feet. Beyond 80+ feet, expect license plate or facial details to compress into ambiguous pixels — if you're reading plates from a driveway entrance more than 100 feet away, a higher-megapixel variant is justified.
• Varifocal lens operation requires initial field focus adjustment. Motorized focus models (if available in your region) add cost but eliminate this step; manual focus requires a ladder and calibration tool on-site.

The 03181-001 is the right pick for mid-range outdoor perimeter and parking lot work where image quality, low-light performance, and analytics balance against storage and bandwidth constraints. If your site is brightly lit all night or requires ultra-wide coverage, other models in the Axis lineup may be more cost-effective.

Key Specifications:
Color: White
