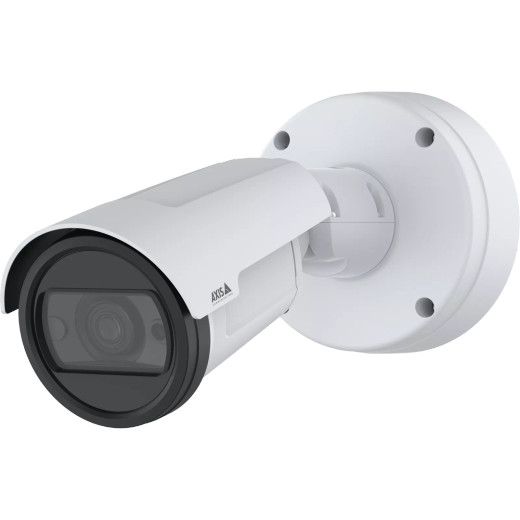

Axis 03182-001 P1485-LE 2MP AI IR Bullet Network Camera
The Axis 03182-001 is a purpose-built outdoor surveillance camera engineered for long-range perimeter monitoring and detail recognition in complete darkness. This 2MP bullet combines a 28 mm telephoto lens with OptimizedIR illumination extending to 50 meters, making it a strategic choice when your primary objective is identifying subjects and assets at distance rather than covering wide areas. The camera operates at up to 60 fps, preserving smooth motion detail critical for forensic video review and incident investigation.
Key Features
- 2MP resolution at 60 fps: Delivers frame-by-frame smoothness and detail capture — essential for forensic playback and tracking moving subjects across long dwell times without motion blur artifacts.
- 28 mm telephoto lens with 29°–11° horizontal field of view: Prioritizes narrow, deep coverage. Use this when you need to identify a person's face or read a license plate at 30+ meters; skip it if you need 180° situational awareness.
- OptimizedIR with 50 m (164 ft) illumination range: Eliminates dependency on external lighting infrastructure. Covers complete darkness without manual mode switching or auxiliary lamps — a major operational simplification on remote perimeter sites.
- Lightfinder 2.0: Maintains usable color and detail in near-darkness (low-lux) conditions, supporting forensic identification before the camera switches to full IR mode. Avoids the washed-out grayscale look of older low-light designs.
- Forensic WDR (wide dynamic range): Handles extreme contrast — e.g., a backlit subject against bright sky or reflective surfaces — without clipping highlights or losing shadow detail. Matters when a single scene contains both dark and bright zones simultaneously.
- H.265 + AV1 codec via Axis Zipstream: Cuts recorded file size roughly 40–60% versus H.264, depending on scene complexity. Over 24/7 recording on multi-camera systems, this translates to storage cost reduction and longer retention windows without upgrading infrastructure.
- Edge Vault cybersecurity integration: Protects device integrity through signed firmware and encrypted storage. Prevents tampering and unauthorized configuration changes — mandatory in critical infrastructure and border security contexts.
- IP66 + impact-resistant bullet housing: Withstands direct rain, dust, and wind-driven debris in exposed outdoor locations. Not submersion-rated (that requires IP67), but reliable for wall- and pole-mount installations in harsh weather.
Integration & Compatibility
The 03182-001 integrates via standard Axis IP cameras ecosystem protocols: ONVIF Profile S and T, RTSP/RTP streaming, and AXIS Camera Station compatibility. It draws approximately 13–15W via 802.3af PoE, so standard PoE switches and in-line injectors will power it without strain. The telephoto optics and 60 fps capability make it well-suited for integration with network video recorders configured for high-frame-rate forensic retention on key perimeter or checkpoint feeds.
When to Choose a Different Model
If your deployment requires wide-area coverage (100°+ horizontal field of view) or low-light performance without IR, consider a wide-angle or fixed-lens variant in the outdoor IP cameras range. If IR range under 30 meters is acceptable and you need active pan/tilt capability, a compact PTZ model may offer better coverage efficiency. If you need the P1485-LE's range but operate primarily in daylight with occasional low-light scenes, the AV1 compression alone justifies the investment for storage savings on multi-year retention policies.
Typical Deployment Scenarios
Industrial perimeter security, roadway monitoring, border access points, critical infrastructure fence lines, and high-value asset protection in open outdoor environments where subjects may be 50+ meters distant. Also well-suited for facility integration guides that emphasize long-range identification and forensic review over real-time situational coverage.
Frequently Asked Questions
Q: What is the maximum IR illumination range on the 03182-001?
A: OptimizedIR extends to 50 meters (164 feet) in pitch-black conditions. This eliminates the need for external lighting on remote perimeter sites.
Q: Can the P1485-LE run on standard PoE (802.3af)?
A: Yes. The camera draws approximately 13–15W, well within 802.3af limits. No PoE+ or separate power supply required.
Q: Does the telephoto lens (28 mm) limit my field of view?
A: Yes. The 28 mm configuration delivers a narrow 29°–11° horizontal field of view. It is optimized for long-range detail and identification, not wide-area surveillance. Choose a wider-angle lens variant if you need situational awareness across a broad area.
Q: What codecs does the 03182-001 support?
A: H.264, H.265, and AV1 via Axis Zipstream. AV1 offers the best compression efficiency, reducing storage footprint significantly on 24/7 multi-camera deployments.
Q: Is the P1485-LE rated for outdoor installation?
A: Yes. IP66 rating handles direct rain and dust. Not submersion-rated (would need IP67). Suitable for wall and pole mounting in exposed environments.
Q: Does the camera integrate with standard VMS platforms?
A: Yes. The 03182-001 is ONVIF compliant and integrates with AXIS Camera Station and third-party ONVIF-capable platforms such as Milestone and Genetec.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03182-001 occupies a deliberate niche in the outdoor surveillance market. Its telephoto lens and 60 fps capability prioritize long-range target identification and forensic-quality playback over situational awareness. Organizations deploying the P1485-LE need to accept the narrow 29°–11° horizontal field of view as a constraint, not a weakness — it's the direct trade-off that unlocks 50-meter IR range and subject detail at distance.
Technical Highlights:
- OptimizedIR to 50 m with 850 nm illumination: Eliminates the operational overhead of external lighting. Remote perimeter sites become viable without AC power runs or light pollution concerns. The IR footprint is tightly focused, reducing wasted illumination in wide-area deployments.
- Lightfinder 2.0 + Forensic WDR combination: Handles the full day/night cycle without manual mode switching. Transitions from color in daylight through twilight colorization to full IR in darkness — no firmware tuning or VMS rules needed. Critical for unattended outdoor sites where human intervention is infrequent.
- AV1 codec support via Zipstream: Next-generation codec reduces bitrate 40–60% below H.265 on equivalent quality scenes. Deployed across a 50-camera perimeter system recording 24/7, storage and bandwidth savings compound rapidly — meaningful for retention policies exceeding 90 days.
- 60 fps at 2MP: Smooth motion capture supports forensic frame-by-frame scrubbing and incident reconstruction. Critical when reviewing vehicle traffic or subject gait analysis requires frame accuracy.
Deployment Considerations:
- The 28 mm telephoto lens is non-negotiable. If your perimeter requires both long-range identification and wide-area awareness, plan for a two-camera approach — narrow lens for chokepoints, wide lens for area coverage.
- 50 meters of IR assumes clean line of sight and minimal atmospheric interference. Heavy fog, rain, or dust will degrade effective range. Validate on-site during commissioning.
- 802.3af PoE power draw (~13–15W) is efficient, but confirm your switch has sufficient available budget across all ports. A single undersized switch can cascade into insufficient power availability mid-deployment.
The 03182-001 is the right choice when your primary mission is perimeter identification at depth — border security, critical infrastructure fence lines, roadway access points, and high-value asset protection in outdoor environments where subjects may operate 50+ meters from the camera. It is not a general-purpose outdoor camera; it is a specialized tool optimized for long-range forensic detail.
