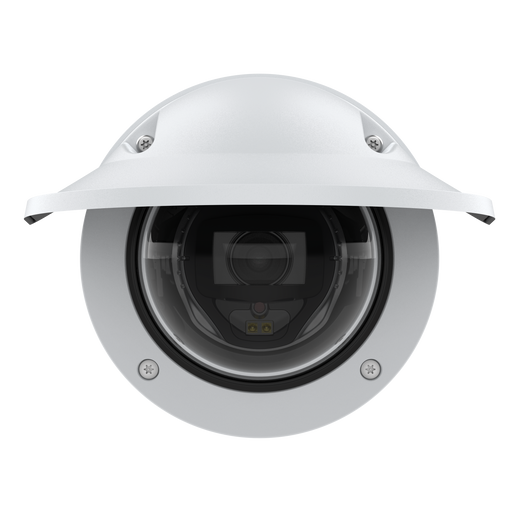

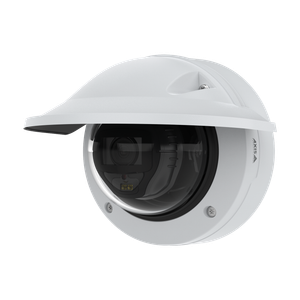

Axis P3265-LVE 5MP Outdoor PTZ Night Vision Camera - 02333-001

Axis 02333-001 5MP 22mm Night Vision Weatherproof Outdoor PTZ IP Camera

Overview

The Axis 02333-001 is a 5MP pan-tilt-zoom camera designed for long-range outdoor surveillance where weather resistance and night visibility matter. The 22mm fixed lens delivers a narrower field of view than standard wide-angle optics—meaning you trade peripheral coverage for magnification, letting you see detail at distance without cropping video in post-processing. This is the right tradeoff for perimeter monitoring, parking structures, and facility entrances where you need to identify faces or license plates 50+ feet away.

The PTZ mechanism (pan, tilt, zoom) allows remote repositioning without physically relocating the camera body. Combined with H.264 compression and IP cameras that support ONVIF, the 02333-001 integrates into most mainstream video management systems without vendor lock-in. PoE (Power over Ethernet) means one cable delivers both power and data, simplifying installation on existing runs and reducing the need for separate power supplies at the camera.

Key Features

• 5MP Resolution (2592 × 1944): Delivers roughly 2.5× the pixel density of 2MP competitors, translating to sharper identification imagery—especially important when extracting facial or plate detail from long-distance shots. This resolution also means you can digitally zoom during playback without immediately losing forensic value.
• 22mm Fixed Lens: A moderate telephoto focal length that achieves roughly 40–50 feet of clear facial recognition range depending on lighting. If your deployment requires wider peripheral views, consider a wider-angle variant; if you need extreme zoom, evaluate optical zoom models in the Axis PTZ family.
• OptimizedIR with 40m Illumination: Infrared LEDs provide passive night vision up to 40 meters (131 feet) without external lighting. At maximum range, expect monochrome imagery; closer distances yield better color fidelity. This eliminates the need for auxiliary flood lights on structures where electrical runs are difficult or cost-prohibitive.
• Lightfinder 2.0 Technology: Enhances low-light color capture in twilight and overcast conditions by amplifying sensor sensitivity. You'll see usable color video in dusk conditions where older sensors default to grayscale—a meaningful advantage for vehicle classification and clothing descriptions in evidence.
• Forensic WDR (Wide Dynamic Range): Balances exposure across bright and dark areas within a single frame. Deploy this camera where you have strong backlighting (e.g., subjects moving toward a bright sky or warehouse bay doors opening in daytime) and expect intelligible detail in both the shadow and highlight zones.
• H.264 Video Compression: A proven, widely supported codec that offers efficient bandwidth use and long-term archival compatibility. H.264 requires more CPU for decoding than newer H.265, but it guarantees compatibility with older VMS platforms and mobile clients that haven't yet adopted the newer standard.
• IP66 / IK10 Rating: IP66 means the sealed enclosure blocks direct rainfall and dust ingress—suitable for rooftop, soffit, and pole mounting in most climates. IK10 vandal resistance withstands impacts up to 20 joules (equivalent to a hammer strike), making it viable in high-risk environments. Note: IP66 is not submersible; avoid full water immersion or mounted locations subject to pooling.
• AXIS ARTPEC-8 SoC with Deep Learning Processing Unit (DLPU): Enables on-camera object detection and classification (humans, vehicles) without streaming raw video to a central server. This reduces bandwidth on long-haul WAN links and allows the camera to trigger alerts locally—useful when your NVR or VMS is off-site or bandwidth is constrained.
• Axis Zipstream Technology: Dynamically reduces bitrate in static zones while maintaining full detail in moving areas. Real-world bandwidth savings range from 30–50% depending on scene activity. On a 24/7 multi-camera system, this compounds—fewer streams mean lower NVR load and extended storage retention for the same disk footprint.
• PoE Class 3 (802.3af): Draws approximately 12–13 watts during normal operation. A standard PoE injector or PoE switch port supplies power; no separate 12VDC supply needed. Confirm your switch has sufficient Class 3 budget if deploying multiple cameras on the same circuit.

Integration & Compatibility

The 02333-001 supports ONVIF Profiles S and G, meaning it integrates with network video recorders and VMS platforms from Milestone, Genetec, Exacq, and others without custom drivers. Axis Camera Station offers native support with simplified setup and a single-vendor support contract if that model fits your organization. PoE power delivery and standard network cabling simplify fieldwork—existing Cat5e or Cat6 runs often suffice.

When to Choose a Different Model

If your coverage area requires broader peripheral views (e.g., warehouse loading dock interior or parking lot overview), a wider fixed lens or panoramic PTZ variant will reduce the blind spots that a 22mm lens creates. If you need active zoom to transition smoothly between overview and detail during live monitoring, consider an optical zoom PTZ—the 02333-001's fixed 22mm lens requires you to decide magnification at installation time. If your site receives direct sunlight for extended periods and subjects frequently backlit, test the Forensic WDR in your lighting before committing; extreme contrast scenes can still degrade legibility even with WDR enabled.

Frequently Asked Questions

Q: What is the maximum frame rate for the Axis 02333-001?

A: The camera delivers up to 60 fps at 1080p resolution and full 5MP capture at 30 fps. Higher frame rates reduce motion blur and are useful for fast-moving vehicles or sports facilities; standard 30 fps is adequate for perimeter and entrance monitoring.

Q: Does the 02333-001 support two-way audio?

A: No—this model includes built-in microphone input for ambient sound recording, but no speaker output for two-way voice communication. If you need active intercom capability, consult the Axis IP camera lineup for models with integrated speaker arrays.

Q: Can I use the 02333-001 indoors?

A: Technically yes, but the IP66 weatherproof enclosure, outdoor form factor, and IR illumination are optimized for exterior use. Indoor deployments are viable in unconditioned spaces (loading docks, stairwells) or where weather sealing is beneficial, but standard indoor domes or turrets are more cost-effective for climate-controlled environments.

Q: What is the warranty period for the 02333-001?

A: Axis products typically include a 3-year manufacturer's limited warranty. Confirm terms with your reseller or Axis regional support, as coverage may vary by geography and channel.

Q: Does the camera work with Milestone XProtect?

A: Yes. ONVIF Profile S and G support ensures compatibility with Milestone XProtect and other mainstream VMS platforms. Native Axis plug-ins may offer extended analytics integration, but standard ONVIF operation is guaranteed.

Q: What is the minimum illumination required for color video?

A: With Lightfinder 2.0 enabled, the camera produces usable color at 0.5 lux or lower (equivalent to twilight). In complete darkness, the 40-meter OptimizedIR provides monochrome video; color returns as ambient light increases above ~0.5 lux.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02333-001 (often searched as 02333 001) is a solid fit for mid-range outdoor deployments where a fixed 22mm lens and PTZ control meet the distance and weather-sealing requirements. The 5MP sensor gives you enough pixel density to extract useful forensic detail at 40–60 feet, and the combination of Lightfinder 2.0, Forensic WDR, and 40-meter IR coverage means you're not sacrificing night performance for daylight clarity. The ARTPEC-8 processor and DLPU enable object detection at the edge, reducing bandwidth load—a real advantage if you're deploying this camera on a WAN link or constrained switch.

Technical Highlights:

• H.264 with Zipstream: 30–50% bitrate reduction in static scenes without sacrificing motion detail. On a 24/7 system with 10+ cameras, this translates to measurable NVR CPU savings and longer retention on the same disk capacity.
• PoE Class 3 (~13W): Draws minimal power from standard 802.3af injectors, so you won't need to budget for expensive PoE++ infrastructure. Daisy-chaining multiple 02333-001 units on a single PoE switch is straightforward.
• Deep Learning DLPU: On-camera object classification (human vs. vehicle) runs locally, cutting inbound bandwidth by filtering false triggers. Alerts are generated at the edge without streaming raw video to the NVR for analysis.
• IP66 / IK10 Durability: Blocks direct rain and dust; handles impacts equivalent to a hammer strike. Suitable for rooftop and pole-mount installations, but confirm mounting hardware rating independently—IP rating covers the enclosure, not the bracket.

Deployment Considerations:

• The fixed 22mm lens trades peripheral coverage for magnification. If you need to monitor a wide entrance and also see detail at distance, you may need two cameras or a wider-angle variant—this is not a limitation of the 02333-001 itself, but a real cost impact if your site design wasn't planned around a narrower lens.
• OptimizedIR at 40 meters assumes clear line of sight and minimal atmospheric scatter. Heavy fog, rain, or dust reduces effective range significantly. Test in your site's worst-case weather before finalizing placement.
• The PTZ mechanism requires stable power and network connectivity. If your site has frequent brownouts or switches with aggressive power-down features, confirm UPS and network resilience before deployment.

Deploy the 02333-001 for long-range outdoor perimeter monitoring, parking structures, and facility entrances where night visibility and weather sealing are non-negotiable. The fixed 22mm lens and solid ONVIF compatibility make it a low-risk choice for integrators standardizing on multi-vendor VMS platforms.
